Description

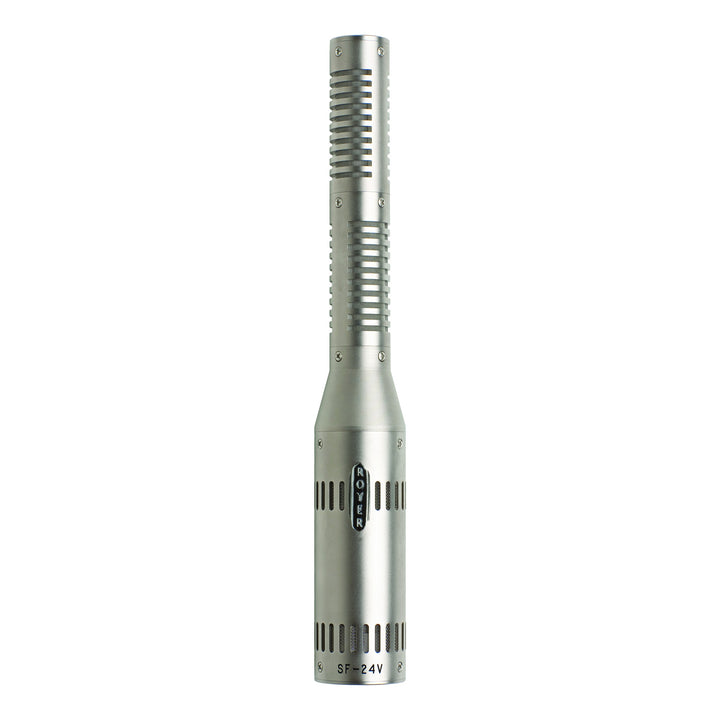

The Royer SF-24V is a vacuum tube stereo ribbon microphone and the top model in Royer's SF series. Two matched ribbon mics sit one above the other in a Blumlein pair, each aimed 45 degrees from center, so one mic records true stereo in Blumlein or mid-side. It uses the same tube electronics as Royer's R-122V, which add midrange reach, clarity, detail and air, with -38 dB output for any professional preamp and self-noise under 18 dB.
Tube Electronics
Each channel runs a low-noise, military-grade 5840 tube wired as a triode cathode follower, which lets the mic drive long cable runs without losing high frequencies. Jensen output transformers isolate the balanced outputs to keep induced noise out, and a dedicated power supply feeds the tubes with ample current. The circuit gives each ribbon the correct load whatever preamp follows and protects the ribbons from phantom power, electrical glitches and miswired cables.
Stereo and Mono
The microphone connects to its power supply over a 7-pin cable, and the supply delivers the two channels on 3-pin XLR outputs. The two sides stay in phase when summed to mono, and each side works on its own as a mono figure-8 mic. Royer recommends the SF-24V for full orchestra, choirs and ensembles, classical piano, drum overheads, percussion and acoustic instruments.
Features
- Vacuum tube circuitry for high output and correct ribbon loading
- True stereo (Blumlein and M-S) recording from one microphone
- High SPL capability, with no distortion up to the maximum rating
- Extremely low residual noise
- Ribbons unaffected by heat or humidity
- No high-frequency phase distortion
- Equal sensitivity from the front and back of each ribbon
- Consistent frequency response regardless of distance
- High-efficiency matching toroidal transformers
- Very low magnetic leakage
Specifications
- Operating principle: Electrodynamic pressure gradient with vacuum tube electronics
- Tubes: 2 x JAN mil-spec 5840W pentodes wired as triodes
- Polar pattern: Crossed figure-8
- Elements: Two 1.8-micron aluminum ribbons
- Frequency response: 30 Hz to 15 kHz, +/- 3 dB
- Sensitivity: -38 dB (re. 1 V/Pa, +/- 1 dB)
- Self-noise: Under 18 dB
- Output impedance: 450 ohms at 1 kHz
- Recommended load impedance: 1,500 ohms or higher
- Maximum SPL: Over 130 dB
- Microphone connector: 7-pin male XLR
- Power supply outputs: Two 3-pin male XLR
- Tube supply: Plate 135 V DC at 2 mA, filament 6 V DC at 150 mA, from the dedicated power supply
- Mains: 110, 120, 220 or 240 V AC, 50/60 Hz, selectable at the power supply
- Dimensions: 270 mm long, 39 mm at the base, 25 mm at the top (10 5/8 x 1.5 x 1 in)
- Weight: 583 g (20.5 oz), microphone only
- Shipping weight: 21 lb (9.5 kg)
- Finish: Dull satin nickel
- Extension cables: Royer 7-pin EXCV series: EXCV-25, EXCV50 and EXCV100
- Warranty: 10 years on materials, workmanship and finish to the original owner; first re-ribbon free within one year

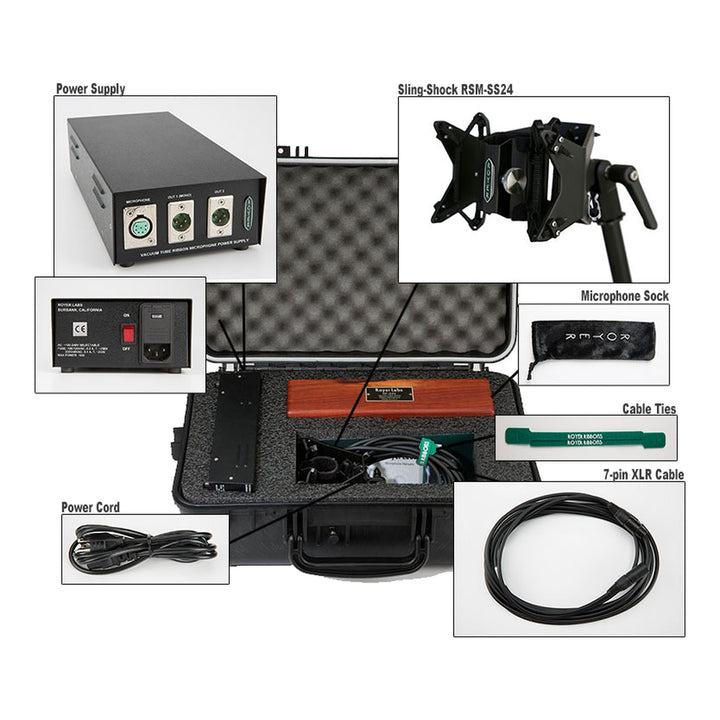

In the Box
- SF-24V microphone
- Vacuum tube power supply
- 7-pin XLR cable
- AC power cord

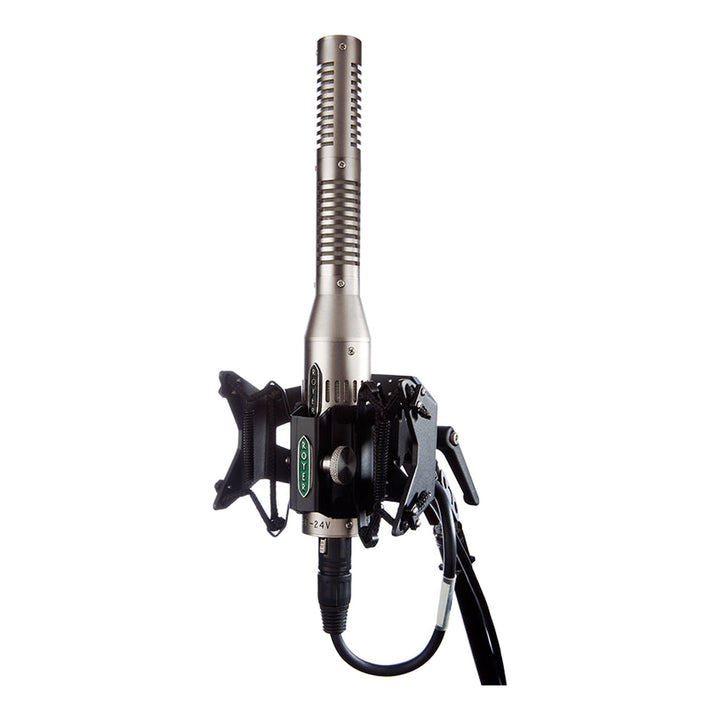

- Sling-Shock RSM-SS24 shock mount

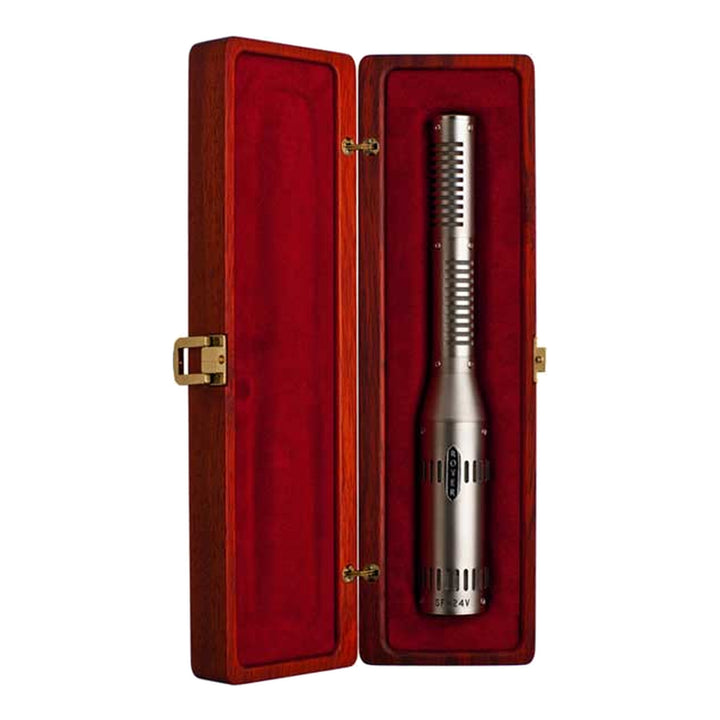

- Padouk wood presentation case
- Hard carrying case
- Microphone sock
- Cable ties
