Description

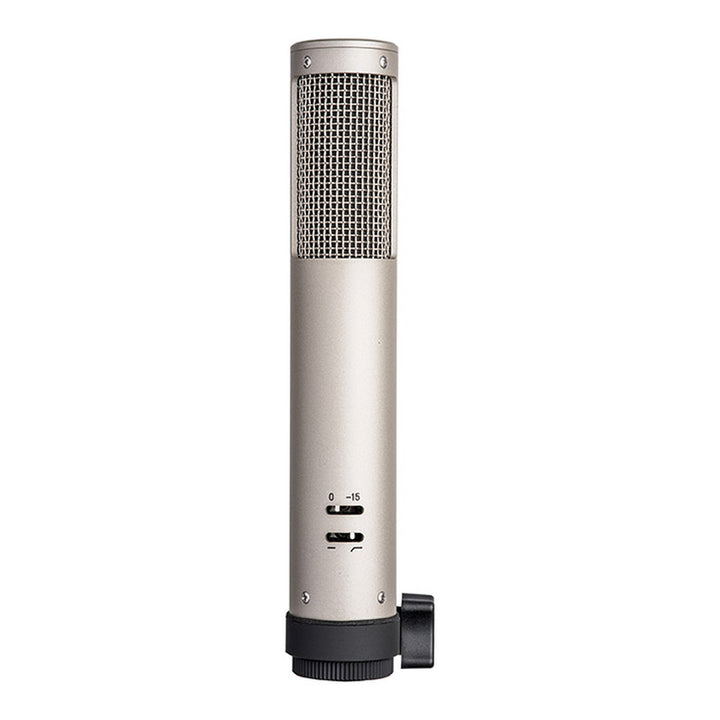

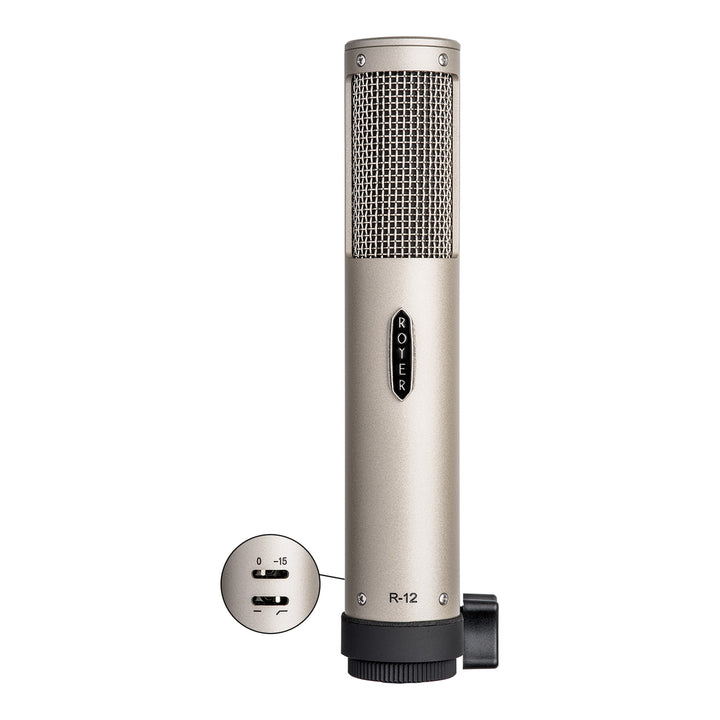

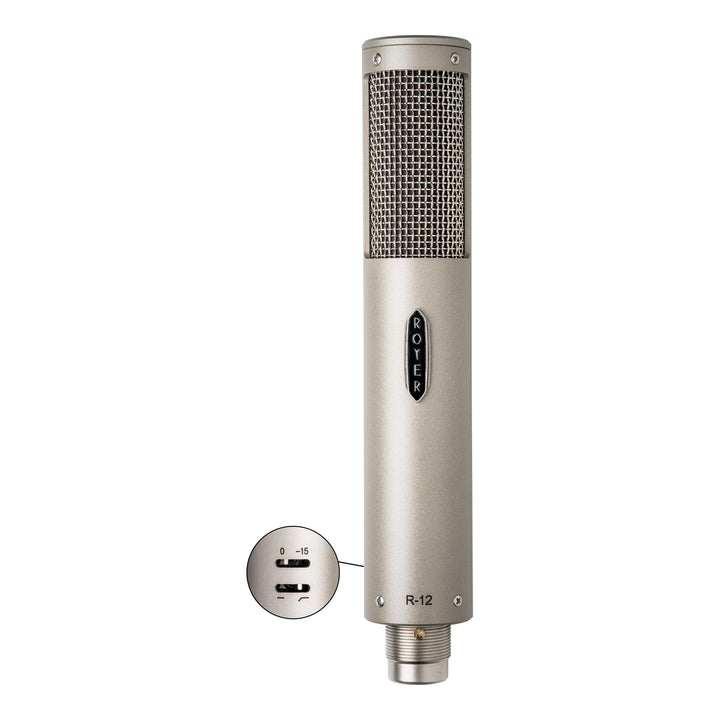

The Royer R-12 is an active figure-8 ribbon microphone for studio recording and live sound. It uses the 2.5-micron aluminum ribbon from Royer's R-121, and its phantom-powered electronics raise the output to a level comparable to a studio condenser, so quiet acoustic instruments and vocals reach any phantom-powered preamp at a healthy level. A -15 dB pad and a 100 Hz high-pass filter let the same mic take on loud drums, cranked guitar amps and close vocals.
Pad, Filter and Protection
The pad sits ahead of the electronics, giving the mic 15 dB more headroom for high-SPL sources. The high-pass filter rolls off at 6 dB per octave from 100 Hz to control proximity bass on close vocals and speaker cabinets. Inside, the active circuit gives the ribbon a consistent load, and a three-layer windscreen and an internal shock mount protect the ribbon from plosives and handling noise.
Features
- Figure-8 pattern
- Active ribbon microphone powered by 48 V phantom
- Same 2.5-micron ribbon element as the R-121
- Output level comparable to a studio condenser microphone
- Switchable -15 dB pad placed ahead of the electronics
- Switchable 100 Hz high-pass filter, 6 dB per octave
- Handles over 160 dB SPL at 1 kHz
- Self-noise under 16 dB
- Three-layer windscreen and internally shock-mounted transducer
- Low output impedance for long cable runs
- Patented offset-ribbon design
Specifications
- Operating principle: Electrodynamic pressure gradient with active electronics
- Polar pattern: Figure-8
- Element: 2.5-micron aluminum ribbon
- Magnets: Rare earth neodymium (grade 52)
- Frequency response: 30 Hz to 15 kHz, +/- 3 dB
- Sensitivity: -36 dB (re. 1 V/Pa)
- Self-noise: Under 16 dB
- Pad: -15 dB, switchable
- High-pass filter: 100 Hz, 6 dB per octave, switchable
- Maximum SPL: Over 160 dB at 1 kHz, over 135 dB at 30 Hz
- Output impedance: 200 ohms, balanced
- Rated load impedance: 1 kilohm minimum
- Output connector: 3-pin male XLR (pin 2 hot)
- Power: 48 V phantom, 4 mA
- Dimensions: 209.5 mm (8 1/4 in) long including mounting base, 35 mm (1 3/8 in) wide
- Weight: 462 g (16.3 oz)
- Warranty: 10 years on materials, workmanship and finish to the original owner; first re-ribbon free within one year
In the Box
- Royer R-12 active ribbon microphone
- Swivel microphone mount
- Mic sock
- Hard-shell carrying case
