Description

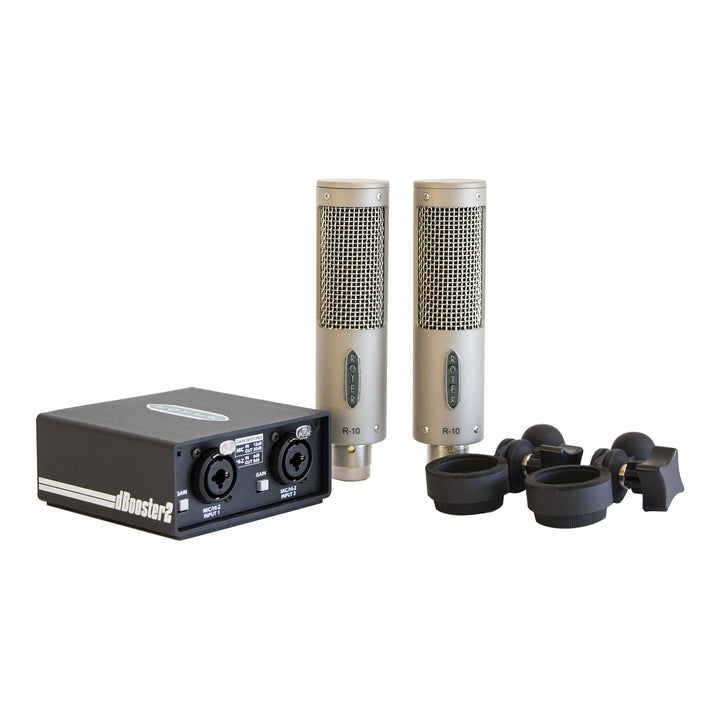

This Royer Labs bundle combines a matched pair of R-10 passive ribbon microphones with the dBooster2 (R-DB22), a two-channel in-line signal booster that also works as a DI. The R-10s handle more than 160 dB SPL for heavy guitars and close-miked brass, and the dBooster2 adds 12 dB or 20 dB of clean gain to each mic for acoustic instruments, vocals and room miking.
The R-10 Pair

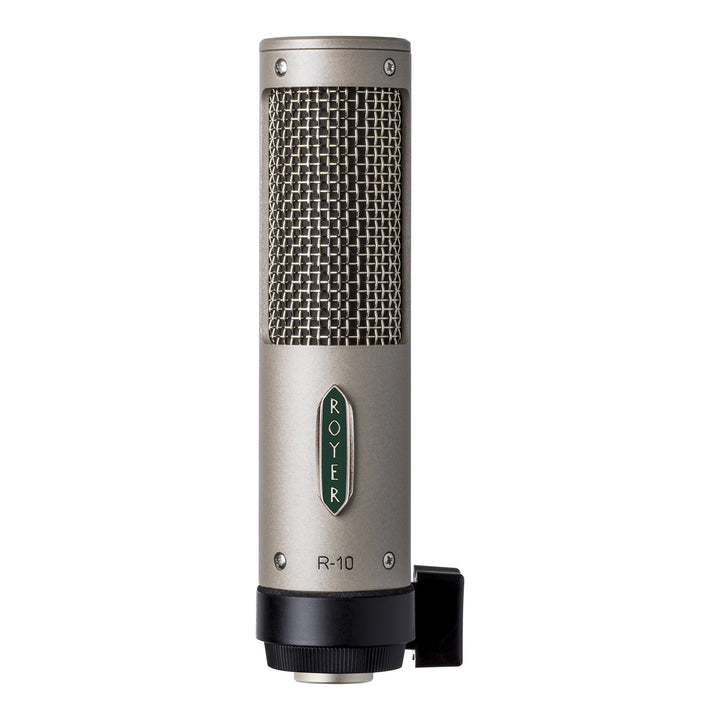

Each R-10 uses the 2.5-micron aluminum ribbon from the R-121, with a three-layer windscreen and an internally shock-mounted transducer. As a figure-8 pair they suit Blumlein and mid-side stereo, spaced pairs on piano and drum overheads. Both mics are hand-built in Burbank, California.
The dBooster2

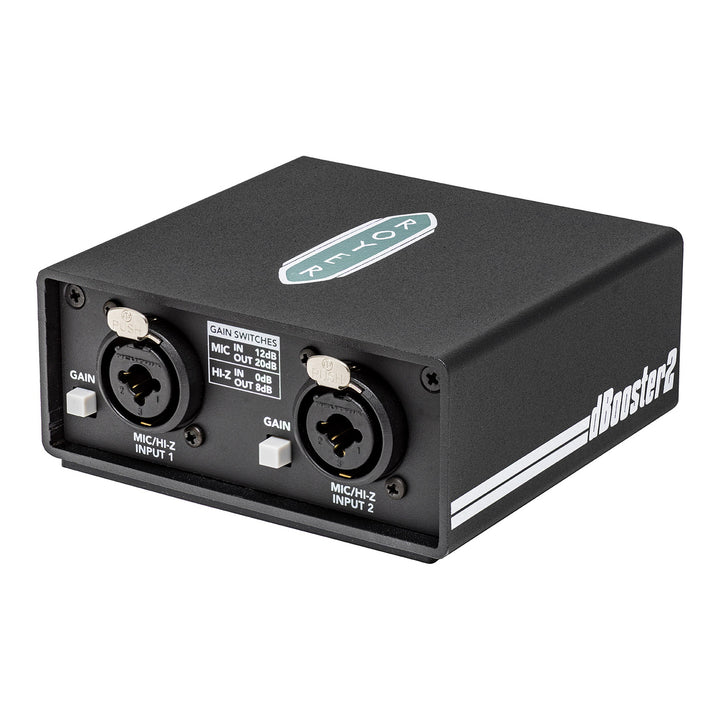

The dBooster2 has two independent channels, so you can boost both mics, run two DIs, or use one channel for each. In mic mode each channel adds 12 dB or 20 dB of gain through a Class A input, and in DI mode the Hi-Z input takes guitar or bass at 0 dB or 8 dB of gain. It runs on 48 V phantom power, protects the ribbons from phantom power, and its balanced low-impedance outputs can drive an interface directly or feed long cable runs, mic splitters and vintage-style preamps.
Features
- Matched pair of Royer R-10 passive figure-8 ribbon microphones
- Royer dBooster2 two-channel in-line signal booster and DI
- R-10s handle over 160 dB SPL at 1 kHz
- Three-layer windscreen and internally shock-mounted transducer on each mic
- dBooster2 gain: 12 dB or 20 dB per channel in mic mode, 0 dB or 8 dB in DI mode
- dBooster2 Class A inputs with high input impedance to minimize mic loading
- dBooster2 protects ribbon mics from phantom power and provides electrical isolation
R-10 Specifications
- Operating principle: Electrodynamic pressure gradient
- Polar pattern: Figure-8
- Element: 2.5-micron aluminum ribbon
- Magnets: Rare earth neodymium (grade 52)
- Frequency response: 30 Hz to 15 kHz, +/- 3 dB
- Sensitivity: -54 dBV (re. 1 V/Pa)
- Output impedance: 100 ohms
- Recommended load impedance: 700 ohms or greater
- Maximum SPL: Over 160 dB at 1 kHz, over 135 dB at 50 Hz
- Output connector: 3-pin male XLR (pin 2 hot)
- Dimensions: 149 mm (5 7/8 in) long including mounting base, 35 mm (1 3/8 in) wide
- Weight: 368 g (13 oz)
- Warranty: Five years; first re-ribbon free to the original owner within the first year
dBooster2 Specifications
- Channels: 2, fully independent
- Gain: 12 dB or 20 dB in mic mode, 0 dB or 8 dB in DI mode, switchable per channel
- Frequency response: 20 Hz to 20 kHz, +/- 0.25 dB
- THD+N: 0.0015% at 20 dB gain (-25 dBu input), 0.001% at 12 dB gain (-6 dBu input)
- Self-noise: Under 11 dBA at 20 dB, under 15 dBA at 12 dB (referred to -48 dB re. 1 V/Pa)
- Headroom: 127 dB at the 20 dB setting, 120 dB at the 12 dB setting
- Input impedance: 3.6 kilohms in mic mode
- Output impedance: 300 ohms (20 dB setting)
- Inputs: 2 x combo jack: balanced XLR for mic, unbalanced 1/4-inch for Hi-Z instruments

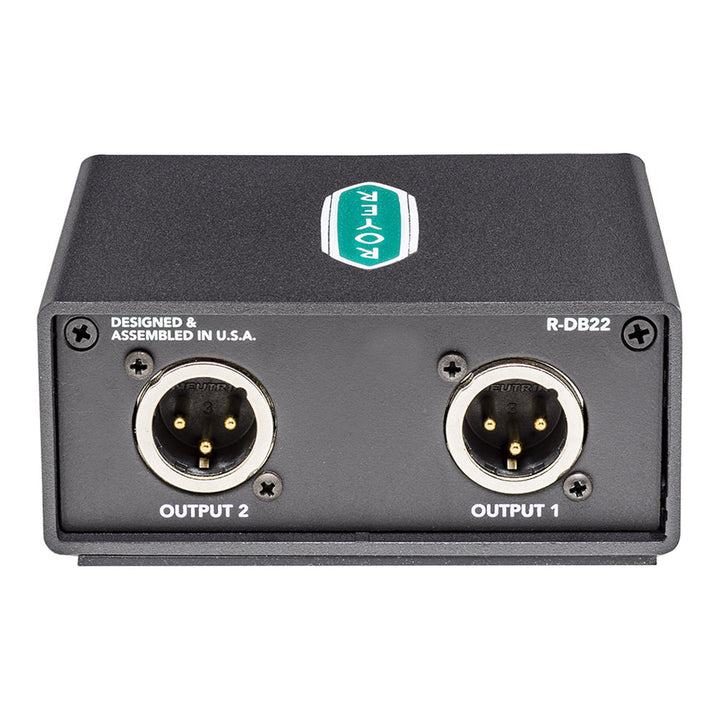

- Outputs: 2 x balanced XLR
- Power: 48 V phantom
- Dimensions: 98.4 x 98.4 x 44.5 mm (3.875 x 3.875 x 1.75 in)
- Weight: 289 g (10.2 oz)
- Warranty: One year, parts and labor
In the Box
- 2 x Royer R-10 ribbon microphone (matched pair)
- 2 x swivel microphone mount
- 2 x mic sock

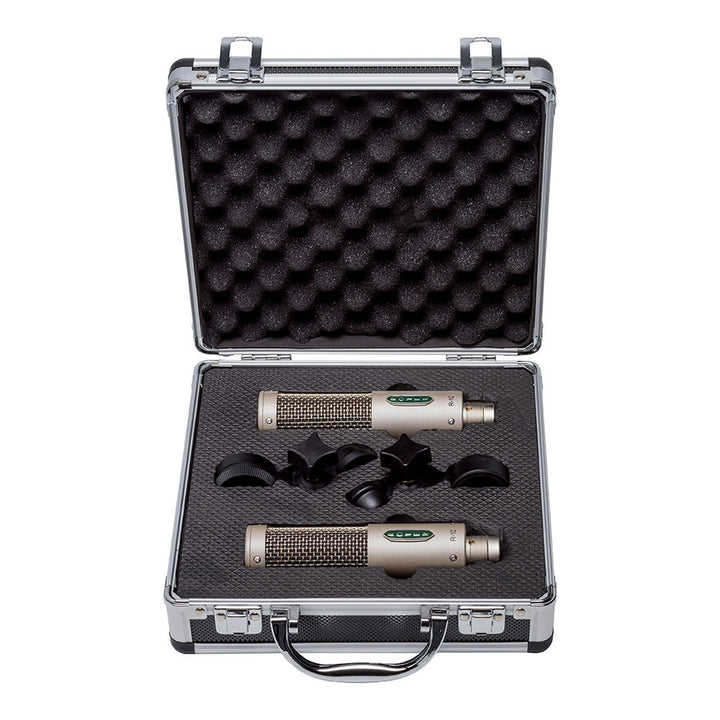

- Aluminum carrying case
- Royer dBooster2 (R-DB22) two-channel signal booster and DI
