Description

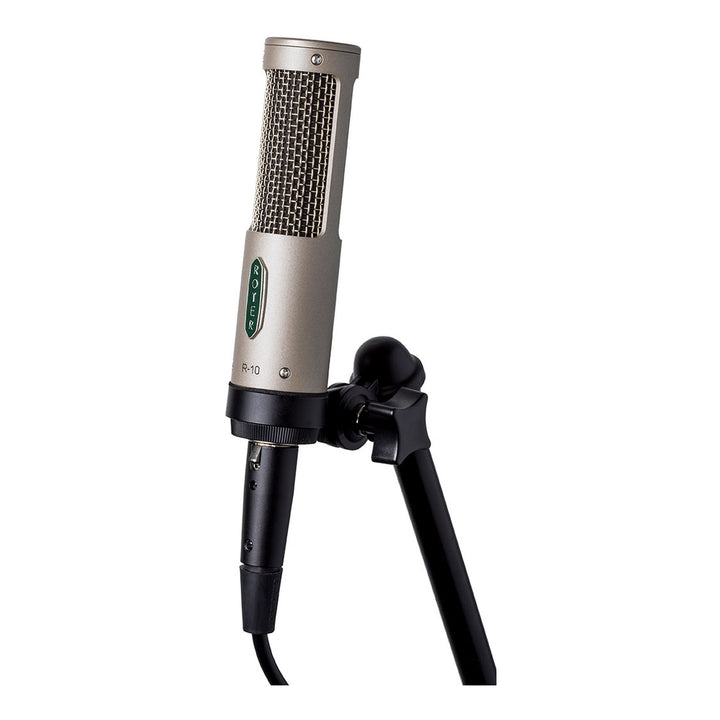

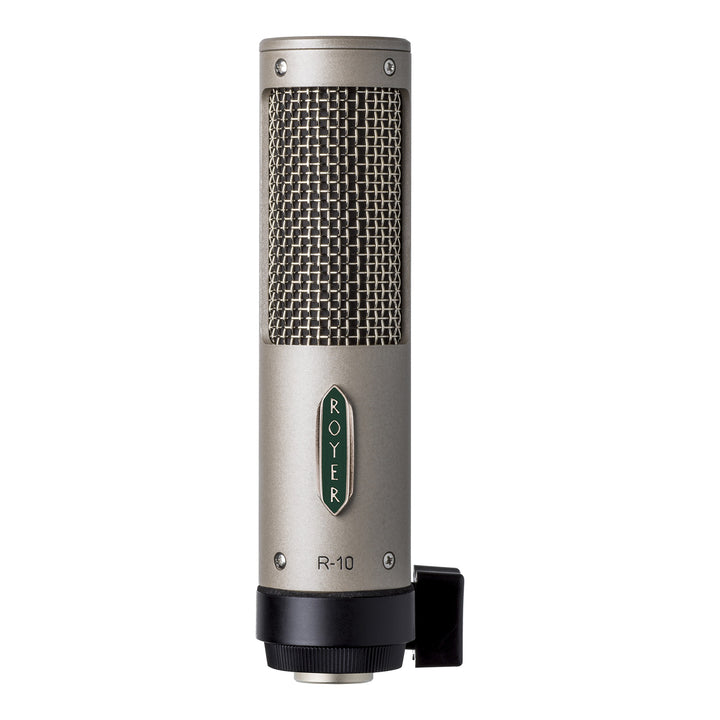

The Royer R-10 Matched Pair is two R-10 passive figure-8 ribbon microphones, supplied by Royer Labs as a matched set for stereo recording. Each mic has the 2.5-micron aluminum ribbon used in the R-121, handles more than 160 dB SPL at 1 kHz, and protects its ribbon with a three-layer windscreen and an internally shock-mounted transducer. Both mics are hand-built in Burbank, California.
Stereo Setups
Two figure-8 mics cover the classic coincident techniques: a Blumlein pair crossed at 90 degrees, or a mid-side array, where recording mid and side on separate tracks lets you set the stereo width at mixdown. Royer's manual also suggests a spaced pair over the bass and treble strings of a piano, an X-Y pair near the soundboard, and a pair 4 to 6 feet above a drum kit. A pair of R-10s beside a Leslie cabinet is another of Royer's suggestions.
Features
- Two R-10 passive ribbon microphones, sold as a matched pair
- Figure-8 pattern suited to Blumlein and mid-side stereo
- 2.5-micron aluminum ribbon, the same element used in the R-121
- Handles over 160 dB SPL at 1 kHz
- Three-layer windscreen protects the ribbon from air blasts and plosives
- Internally shock-mounted ribbon transducer
- Custom Royer transformer resists overload at high SPL
- Humbucking transducer wiring for very low residual noise
- Patented offset-ribbon design with a brighter back side
- Ribbon element unaffected by heat or humidity
Specifications
- Quantity: 2 microphones, matched pair
- Operating principle: Electrodynamic pressure gradient
- Polar pattern: Figure-8
- Element: 2.5-micron aluminum ribbon
- Magnets: Rare earth neodymium (grade 52)
- Frequency response: 30 Hz to 15 kHz, +/- 3 dB
- Sensitivity: -54 dBV (re. 1 V/Pa)
- Output impedance: 100 ohms
- Recommended load impedance: 700 ohms or greater
- Maximum SPL: Over 160 dB at 1 kHz, over 135 dB at 50 Hz
- Output connector: 3-pin male XLR (pin 2 hot)
- Dimensions: 149 mm (5 7/8 in) long including mounting base, 35 mm (1 3/8 in) wide
- Weight: 368 g (13 oz)
- Warranty: Five years; first re-ribbon free to the original owner within the first year
In the Box
- 2 x Royer R-10 ribbon microphone (matched pair)
- 2 x swivel microphone mount
- 2 x mic sock

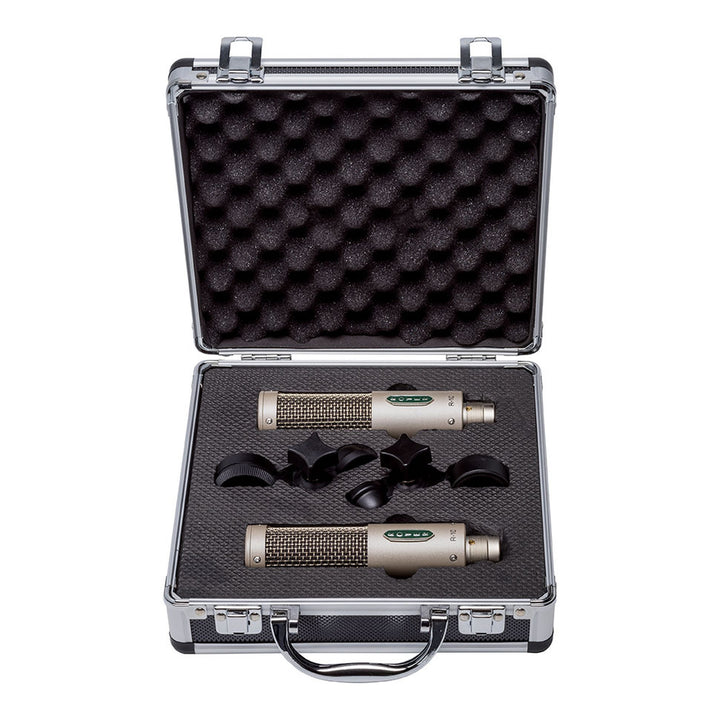

- Aluminum carrying case
