Description

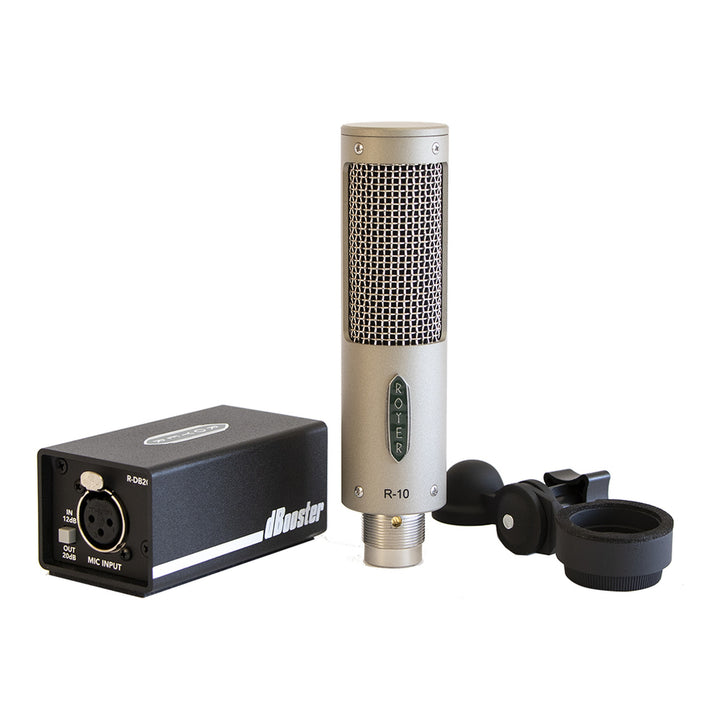

This Royer Labs bundle puts the R-10 passive ribbon microphone together with the dBooster (R-DB20) in-line signal booster. On its own, the R-10 handles more than 160 dB SPL for guitar cabinets, brass and drums. With the dBooster between the mic and the preamp, it gains 12 dB or 20 dB of clean level, which gives acoustic guitars, ukuleles, vocals and other quiet sources enough signal and leaves more headroom at the preamp.

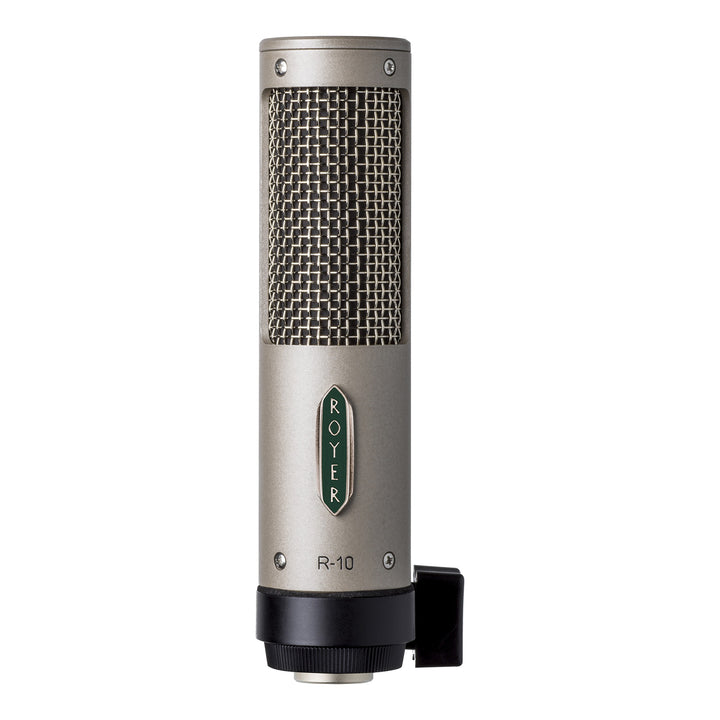

The R-10
The R-10 uses the same 2.5-micron aluminum ribbon as Royer's R-121, behind a three-layer windscreen and an internally shock-mounted transducer. Its patented offset-ribbon design takes loud sources on the front (logo) side and gives a brighter sound on the back side for quieter sources at 3 feet or closer. It is hand-built in Burbank, California.

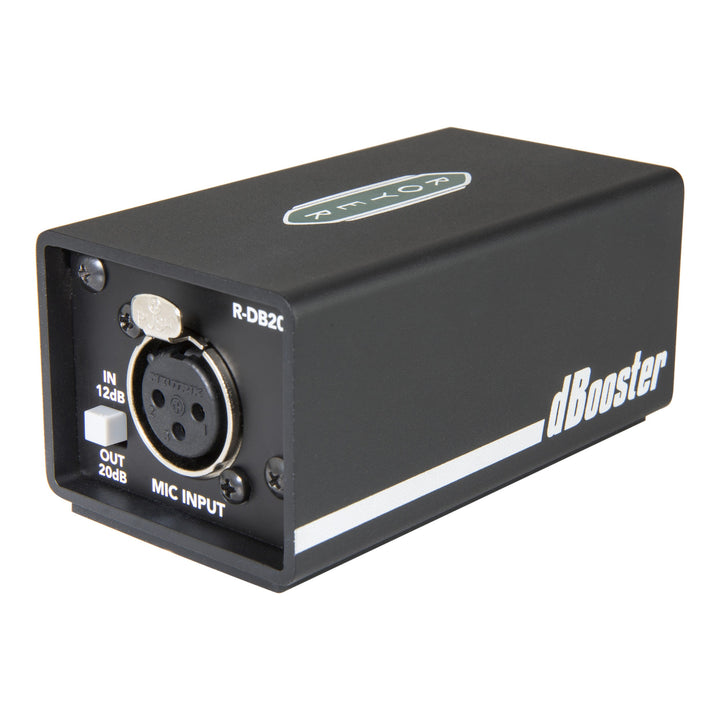

The dBooster
The dBooster runs on 48 V phantom power and has a Class A input with high input impedance, so it loads the ribbon lightly and adds very little distortion or coloration. An internal regulated supply isolates the mic electrically and protects the ribbon from phantom power. The low-impedance balanced output can drive an audio interface directly and handles long cable runs, mic splitters and vintage-style preamps.
Features
- Royer R-10 passive figure-8 ribbon microphone
- Royer dBooster in-line signal booster with 12 dB and 20 dB gain settings
- R-10 handles over 160 dB SPL at 1 kHz
- Three-layer windscreen and internally shock-mounted ribbon transducer
- Patented offset-ribbon design with a brighter back side
- dBooster Class A input with high input impedance to minimize mic loading
- dBooster protects ribbon mics from phantom power and provides electrical isolation
- dBooster low-impedance output for long cable runs and difficult loads
R-10 Specifications
- Operating principle: Electrodynamic pressure gradient
- Polar pattern: Figure-8
- Element: 2.5-micron aluminum ribbon
- Magnets: Rare earth neodymium (grade 52)
- Frequency response: 30 Hz to 15 kHz, +/- 3 dB
- Sensitivity: -54 dBV (re. 1 V/Pa)
- Output impedance: 100 ohms
- Recommended load impedance: 700 ohms or greater
- Maximum SPL: Over 160 dB at 1 kHz, over 135 dB at 50 Hz
- Output connector: 3-pin male XLR (pin 2 hot)
- Dimensions: 149 mm (5 7/8 in) long including mounting base, 35 mm (1 3/8 in) wide
- Weight: 368 g (13 oz)
- Warranty: Five years; first re-ribbon free to the original owner within the first year
dBooster Specifications
- Gain: 12 dB or 20 dB, switchable
- Frequency response: 20 Hz to 20 kHz, +/- 0.25 dB
- THD+N: 0.0015% at 20 dB gain (-25 dBu input), 0.001% at 12 dB gain (-6 dBu input)
- Self-noise: Under 11 dBA at 20 dB, under 15 dBA at 12 dB (referred to -48 dB re. 1 V/Pa)
- Headroom: 127 dB at the 20 dB setting, 120 dB at the 12 dB setting
- Input impedance: 3.6 kilohms
- Output impedance: 300 ohms (20 dB setting)
- Connectors: Balanced XLR input and output
- Power: 48 V phantom, about 5 mA at idle and 7.5 mA at full output
- Dimensions: 92 x 51 x 41.3 mm (3.62 x 2.0 x 1.62 in)
- Weight: 170 g (6 oz)
- Warranty: One year, parts and labor
In the Box
- Royer R-10 ribbon microphone

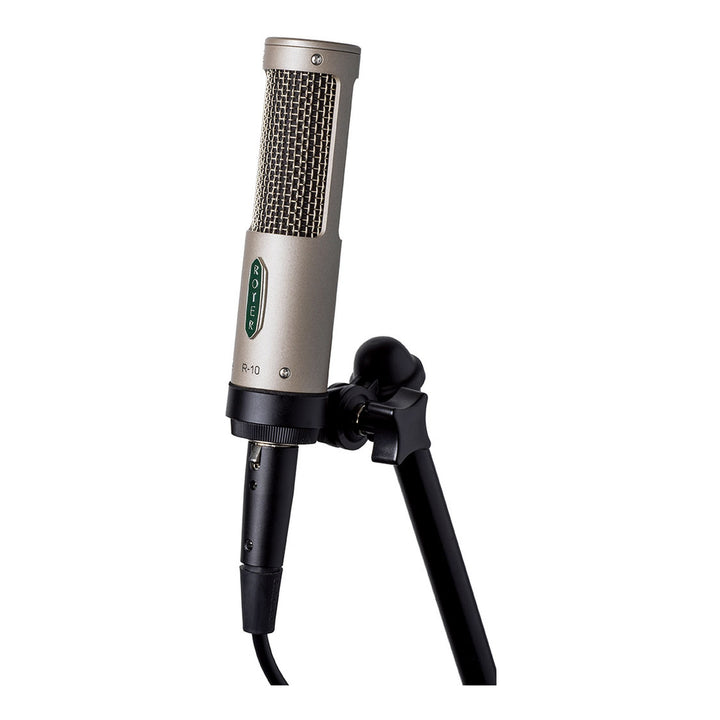

- Swivel microphone mount
- Mic sock

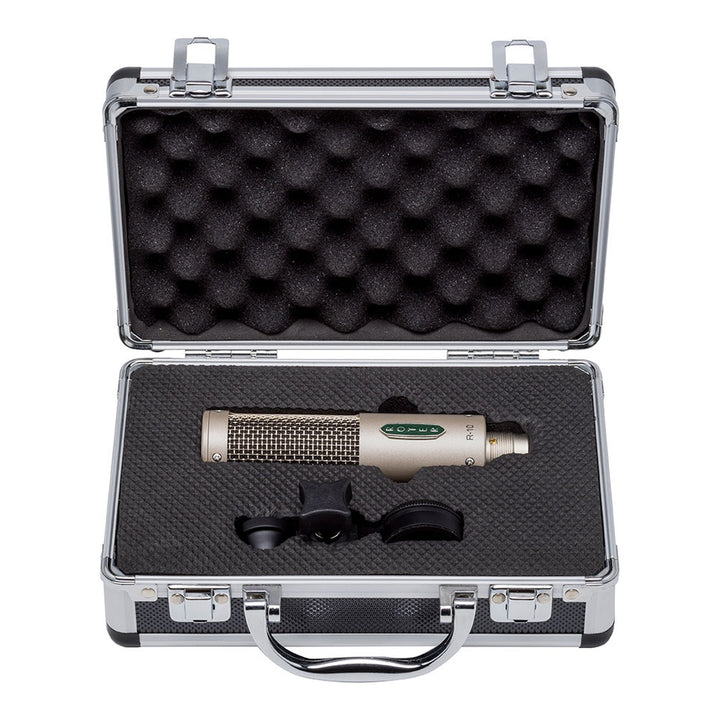

- Aluminum carrying case
- Royer dBooster (R-DB20) in-line signal booster
