Royer CS-25 SF-24 Cable Set (25 ft)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

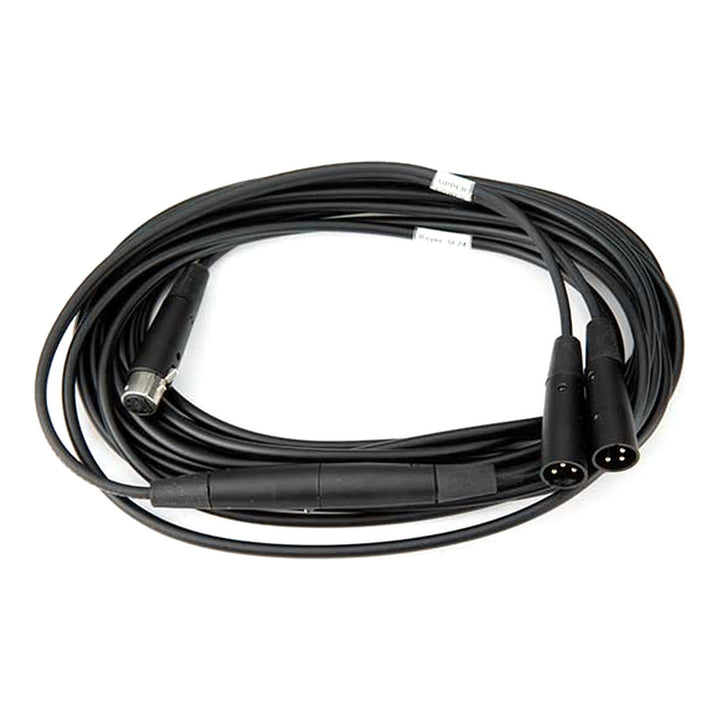

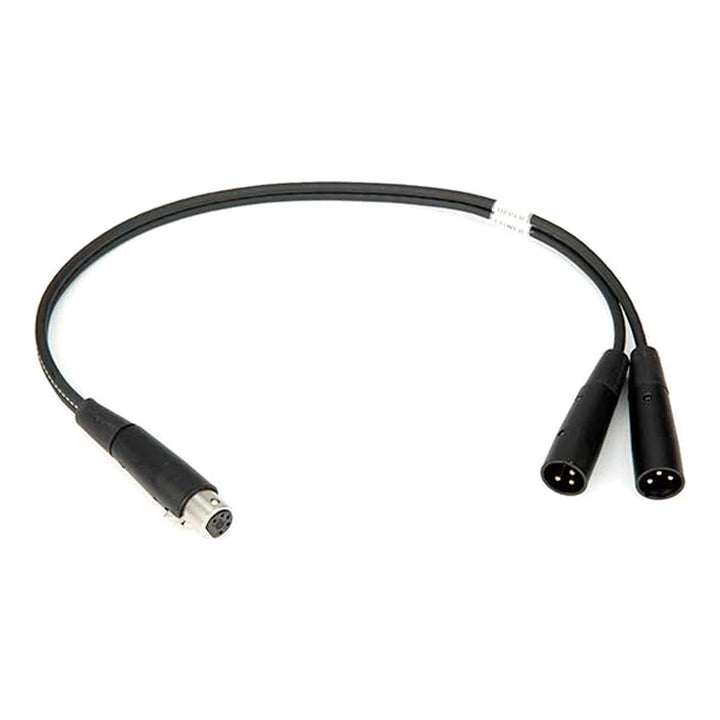

The Royer CS-25 is the replacement cable set for the SF-24 stereo active ribbon microphone, the same two-part set the mic comes with. A 25 ft 5-conductor extension cable runs from the SF-24's 5-pin XLR output to a splitter, and the splitter divides into two 3-conductor leads with male 3-pin XLR connectors marked Upper and Lower, one for each ribbon element.
Wiring
The SF-24 uses a standard 5-pin XLR layout: pin 1 is the shared ground, pins 2 and 3 carry the upper ribbon, and pins 4 and 5 carry the lower ribbon. The SF-24 needs 48 V phantom on both channels, at least 4 mA each, and the set carries it from the preamp to the mic. Royer tells SF-24 owners to use this five-lead stereo cable and to avoid extension cables of unknown wiring.
Features
- Complete replacement cable set for the Royer SF-24
- 25 ft 5-conductor extension cable
- Splitter cable with two male 3-pin XLR connectors
- Leads marked Upper and Lower for the two ribbon elements
Specifications
- Compatible microphone: Royer SF-24
- Extension cable: 25 ft, 5-conductor, 5-pin XLR
- Splitter: Two 3-conductor leads with male 3-pin XLR, marked Upper and Lower
- Pin-out: Pin 1 ground, pins 2 (+) and 3 (-) upper element, pins 4 (+) and 5 (-) lower element
In the Box
- 25 ft extension cable
- YC-18 splitter cable
