WM-1D

In today's world, you need the ability to make music whenever and wherever you want, eliminating cables and clutter however possible. And wireless control should be easy to set up and just as responsive and reliable as plugging in a cable. Join the wireless MIDI revolution with the Roland WM series, where your creativity knows no bounds.

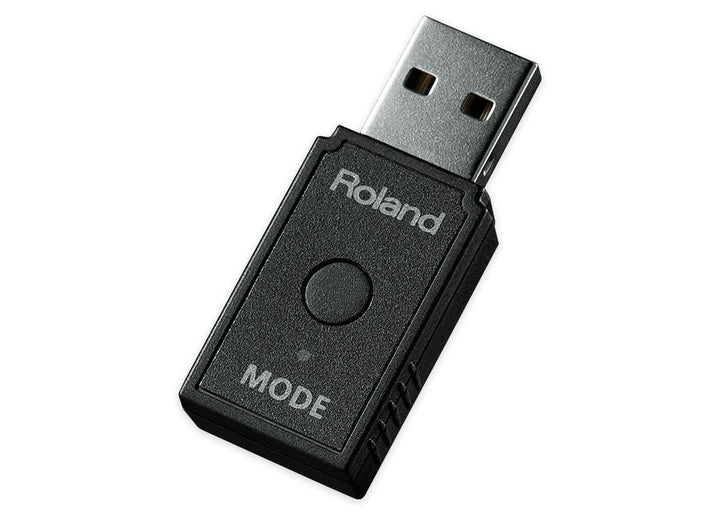

If you're using a Windows computer, the WM-1D is what you need to bring wireless MIDI into your setup. Simply plug it into an open USB port for low-latency communication with any instrument or device equipped with a WM-1/WM-1D unit, or with iOS devices and Mac computers via Bluetooth MIDI. In addition to MIDI note data, you can send MIDI sync for tempo, effects, LFOs, loops, and more—all without connecting a single cable.

iOS devices and Mac computers can smoothly communicate with a WM-series unit in Standard mode over Bluetooth. But in situations where you need the fastest transfer speed possible, just add a WM-1D.

Unleash your creativity.

There are situations where wireless MIDI can be a real problem solver. You may want a simple, clean setup with just a MIDI keyboard and your laptop, iPhone, or iPad. Or you may have a favorite MIDI controller situated away from your DAW requiring long, unsightly cables that can be tripped over. Or maybe you just want the freedom to move around your creative space with a small keyboard or pad controller. Complicated setups are creativity killers—and once you've had the unencumbered experience of Roland wireless MIDI, you'll never want to go back.

Low latency. High performance.

For musicians, the downfall of many wireless MIDI systems is latency—that is, the time it takes to hear sound once you've pressed a key or tapped a drum pad. High latency makes playing feel unnatural, and you can never get the timing right. The proprietary wireless technology in the WM series provides an immediate, ultra-responsive playing experience, just like you're plugged in with a normal MIDI cable.

Warp speed.

While Standard mode on the WM-1D will cover most playing situations, timing-critical applications may benefit from even more speed. Fast mode turbocharges the transfer rate to 3 ms—better than the internal speed of many hardware devices—providing ultra-fast communication between WM units.

WM-1: Wireless MIDI for instruments and hardware.

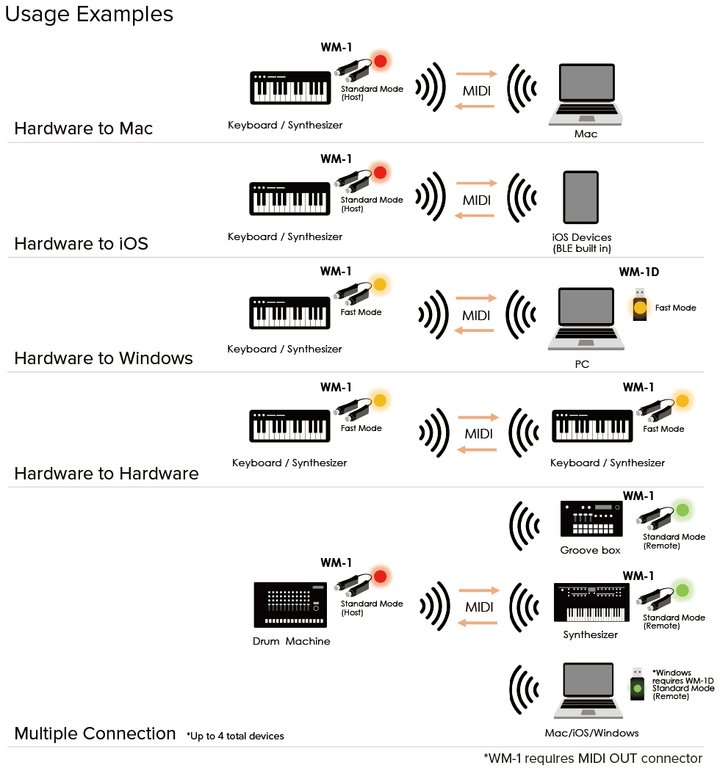

With a WM-1 Wireless MIDI Adaptor plugged into a keyboard, drum machine, or other device with standard MIDI I/O, you can wirelessly communicate with a WM-1D, other WM-1 units, and MIDI music apps on an iOS device and Mac computer.

Features

• USB Adapter for Mac & Windows Computers
• Send/Receive Wireless MIDI to/from WM-1
• Low Latency
• Support for Multiple Devices

Specifications

Interface TypeMIDI Line AmplifierMIDI I/O0x DIN 5-Pin Input or OutputUSB1x USB-APower RequirementsUSB Bus Power

MIDI Line Amplifier

0x DIN 5-Pin Input or Output

1x USB-A

USB Bus Power

Standalone OperationNoActivity IndicatorsNoLatency15 ms3 ms

No

No

15 ms3 ms

ConnectivityMIDI I/O0x DIN 5-Pin Input or OutputUSB1x USB-AOther I/ONoDaisy Chain/Multi-Unit SupportNoWirelessBluetooth/Proprietary WirelessWireless ConnectivityBluetooth, ProprietarySync SourcesNo

Connectivity

0x DIN 5-Pin Input or Output

1x USB-A

No

No

Bluetooth/Proprietary Wireless

Bluetooth, Proprietary

No

CompatibilityRequired HardwareUSB 2.0 Port, USB 3.0 / 3.1/3.2 Gen 1 Port

Compatibility

USB 2.0 Port, USB 3.0 / 3.1/3.2 Gen 1 Port

PowerPower RequirementsUSB Bus PowerCurrent Consumption6 mA

Power

USB Bus Power

6 mA

PhysicalDimensions1.7 x 0.7 x 0.4" / 4.3 x 1.8 x 1 cmWeight0.2 oz / 6 g

Physical

1.7 x 0.7 x 0.4" / 4.3 x 1.8 x 1 cm

0.2 oz / 6 g

Packaging InfoPackage Weight0.11 lbBox Dimensions (LxWxH)7.1 x 4.35 x 1.4"

Packaging Info

0.11 lb

7.1 x 4.35 x 1.4"
