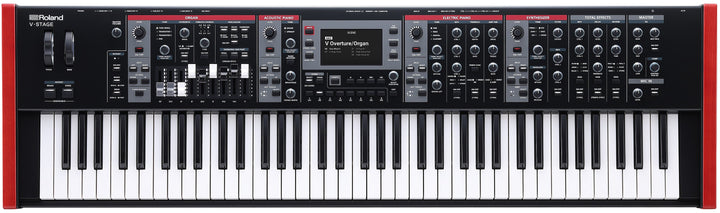

V-STAGE76

V-STAGE is the ultimate player’s instrument, elevating the all-in-one gigging keyboard to another dimension of creative control. Fusing Roland’s premium sound technologies with a fluid, purpose-built workflow, it delivers the versatility and responsiveness professional musicians demand. Experience unrivaled sonic expression with four advanced sound engines, elegantly intuitive interfaces, and exceptional playability for the best performance every time.

The V-STAGE 76 model features a newly developed 76-note semi-weighted keyboard with refined velocity detection and a waterfall feel for classic organ moves like glissandos and rakes.

Features

• Premium keyboards designed for professional stage performers
• Four independent sound engines powered by Roland’s most advanced modeling and sound technologies
• Acoustic Piano engine developed with V-Piano technology; includes two concert grands, an upright piano, a felt piano, and Piano Designer tools for deep sound customization
• Newly developed Electric Piano engine with the latest SuperNATURAL advancements; includes Tine, Reed, Digital, and Clavinet types with customizable sound parameters, adjustable key touch, and dedicated EP effects
• Organ engine with a three-part console model driven by Virtual Tone Wheel technology, two vintage transistor types, a pipe organ type, and new overdrive and rotary speaker effects
• ZEN-Core Synthesizer engine with over 400 onboard sounds and support for SDZ Sound Packs and Model Expansions on Roland Cloud (JUPITER-8, JUNO-106, JX-8P, and SH-101 Model Expansion titles are free downloads for registered V-STAGE owners)
• Intuitive panel layout with discrete sections and hands-on controls for the sound engines and effects
• Store and recall complete keyboard setups with 512 Scenes
• Easily manage complex setlists with 128 Scene Chains
• Eight special EX Scenes with auto-save for building setups in the moment
• Total Effects section with independent delay and reverb plus legendary Roland multi-effects
• Master section with compressor and EQ for shaping the sound output for different venues
• Comprehensive audio connectivity with balanced XLR and 1/4-inch main stereo outputs and two balanced sub outputs
• XLR microphone input with panel volume control
• Stereo line inputs for external sources
• Class-compliant USB-C audio/MIDI interface for working with music software on computers and mobile devices
• USB memory port for data import and backup
• Two USB device ports for connecting MIDI controllers such as the Roland A-49 or A-PRO series
• MIDI I/O and four jacks for hold/damper pedals, footswitches, and expression pedals
• Two models: V-STAGE 88 with 88 weighted hammer-action keys and V-STAGE 76 with 76 semi-weighted keys and organ-style waterfall feel


Specifications

• Sound generator section
  • VTW Organ (Organ Part)
  • V-Piano Technology (Acoustic Piano Part)
• SuperNATURAL Electric Piano (Electric Piano Part)
• ZEN-core (Synth Part A/B)
• Scenes: 512 (including pre-loaded registrations)
• Scene Chains: 128
• Effects
  • Multi-Effects: 16 systems, 93 types
  • Chorus: 9 types
  • Reverb: 7 types
• External memory: USB flash drive (supports USB 2.0 Hi-Speed flash memory: Sold separately)
• Controllers
  • Assignable Wheel x 2
  • Assignable Switch x 2
• Display: Graphic LCD 4.3 inch
• Connectors
  • PHONES jack: Stereo 1/4-inch phone type
  • MAIN OUT (L, R) connectors: XLR type
  • MAIN OUT (L/MONO, R) jacks: 1/4-inch TRS phone type
  • SUB OUT (L, R) jacks: 1/4-inch TRS phone type
  • LINE INPUT (L/MONO, R) jacks: 1/4-inch phone type jacks
  • MIC INPUT connector: XLR type
  • PEDAL (HOLD,CTRL1,CTRL2,CTRL3) jacks: 1/4-inch TRS phone type
  • MIDI (IN, OUT1, OUT2/THRU) connectors
  • USB COMPUTER port: USB Type-C(R) (Audio/MIDI Class Compliant)
  • USB MEMORY port: USB A
• 2 x External Device Port(USB A): Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
• AC IN jack
• Power consumption: 30 W
• Power consumption when in OFF mode (when the power automatically turns off): 0.3 W
• Dimensions
  • 1,181 (W) x *342 (D) x 109 (H) mm
  • 46-1/2 (W) x 13-1/2 (D) x 4-5/16 (H) inches
• Weight (excluding AC adaptor): 15.2 kg / 33 lbs 9 oz
• Accessories
  • Owner's Manual
  • Power cord

• VTW Organ (Organ Part)
• V-Piano Technology (Acoustic Piano Part)

• Multi-Effects: 16 systems, 93 types
• Chorus: 9 types
• Reverb: 7 types

• Assignable Wheel x 2
• Assignable Switch x 2

• PHONES jack: Stereo 1/4-inch phone type
• MAIN OUT (L, R) connectors: XLR type
• MAIN OUT (L/MONO, R) jacks: 1/4-inch TRS phone type
• SUB OUT (L, R) jacks: 1/4-inch TRS phone type
• LINE INPUT (L/MONO, R) jacks: 1/4-inch phone type jacks
• MIC INPUT connector: XLR type
• PEDAL (HOLD,CTRL1,CTRL2,CTRL3) jacks: 1/4-inch TRS phone type
• MIDI (IN, OUT1, OUT2/THRU) connectors
• USB COMPUTER port: USB Type-C(R) (Audio/MIDI Class Compliant)
• USB MEMORY port: USB A

• 1,181 (W) x *342 (D) x 109 (H) mm
• 46-1/2 (W) x 13-1/2 (D) x 4-5/16 (H) inches

• Owner's Manual
• Power cord

Options (sold separately)

• Keyboard stand:
  • V-STAGE76:KS-13､KS-11Z
• Piano pedal: RPU-3
• Damper pedal: DP-10
• Pedal switch: DP-2
• Expression pedal: EV-5
• USB flash drive (*)

• V-STAGE76:KS-13､KS-11Z

* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
