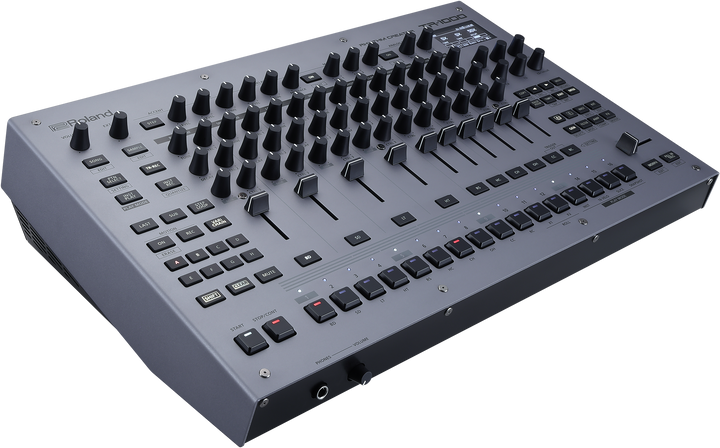

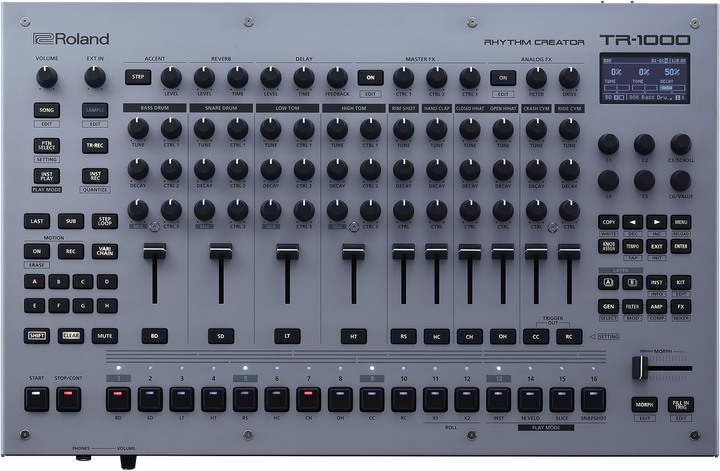

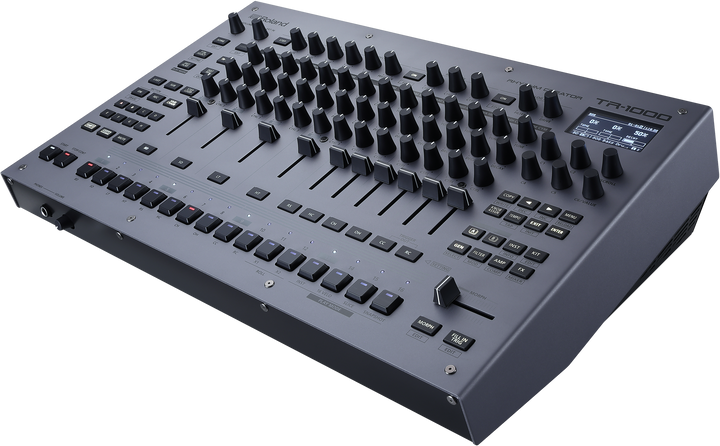

Roland TR-1000 Rhythm Creator

The Roland TR-1000 Rhythm Creator is the first Roland drum machine with a true analog engine in over 40 years. It houses 16 faithfully recreated analog circuits from the TR-808 and TR-909 alongside ACB digital modeling, FM percussion, virtual analog synthesis, PCM sounds, and a full stereo sampler with 46 GB of user-accessible internal storage. A multi-layer step sequencer, analog effects path, Morph slider, and extensive I/O make it a comprehensive instrument for studio production and live performance.

Analog & Digital Sound Engines

The analog engine delivers authentic TR-808 and TR-909 circuits with expanded dynamic range and new parameters that go beyond what the originals offered. Complementing the analog voices are 75 ACB tones (including 21 "circuit-bent" 8X and 9X models that push familiar sounds into aggressive new territory), 7 FM percussion tones, 340 PCM tones, and 2,121 sample tones. The 64 GB internal memory ships with 2,000 curated samples and leaves 46 GB free for user content.

The built-in stereo sampler supports WAV, AIFF, MP3, FLAC, and M4A formats with up to 16 minutes per sample. It includes BPM-synced time-stretching, non-destructive slice editing, and resampling. The Morph slider crossfades between two per-track parameter snapshots for live sound transformation. An analog signal path with multimode filter and drive circuit processes sounds outside the digital domain.

The multi-layer sequencer provides four layer tracks (for stacked sounds per step), six single tracks, and one trigger track. Each pattern offers 16 steps, 8 variations, and 4 fill-in patterns with microtiming, motion recording, probability, and Song mode for arrangement.

Specifications

• Sound Engines: Analog (16 tones), ACB (75 tones), FM (7 tones), PCM (340 tones), Sample (2,121 tones)
• User Kits/Patterns: 2,048 each (128 x 16 projects)
• Sequencer: 4 layer tracks, 6 single tracks, 1 trigger track; 16 steps per variation, 8 variations, 4 fill-ins per pattern
• Sampler: Stereo recording/resampling, WAV/AIFF/MP3/FLAC/M4A, 16 min per sample, time-stretch, slice editing
• Storage: 64 GB internal (46 GB user area), USB flash drive support
• Effects: 2 Filters, 2 Amps, 2 Compressors, 17 Inst FX, 6 Reverbs, 4 Delays, 14 Master FX, Analog Drive, Multimode Filter

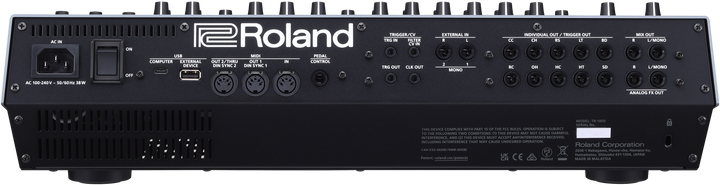

• Analog Outputs: 2x 1/4" mix (L/Mono, R), 2x 1/4" analog FX (L/Mono, R), 10x 1/4" individual/trigger
• Analog Inputs: 2x 1/4" (L, R)
• Headphones: 1x 1/4" TRS (front panel)
• MIDI: In/Out/Thru (5-pin DIN)
• Sync: DIN Sync
• CV/Gate/Trigger: 2x 1/8" trigger (in/out), 1x 1/8" clock out, 1x 1/8" filter CV in
• USB: USB-C (computer, audio/MIDI), USB Type-A (external storage)
• Pedal: 1x 1/4" pedal control input
• Display: Graphic OLED
• Construction: High-grade aluminum panel, steel chassis, fan-free thermal design
• Power: Internal universal power supply (IEC AC input)
• Dimensions: 486 x 311 x 125 mm (19.13" x 12.24" x 4.92")
• Weight: 5.5 kg (12 lbs 3 oz)

In the Box

• Roland TR-1000
• IEC power cord
• USB Type-C cable
• Owner's Manual
