Description

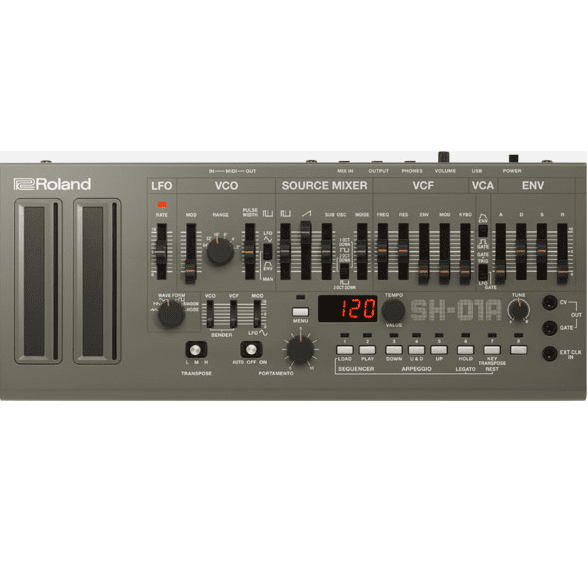

The Roland SH-01A is a meticulous reproduction of the iconic SH-101, one of the most beloved monophonic synthesizers in electronic music history. Built with Analog Circuit Behavior (ACB) technology, the SH-01A recreates the original's raw oscillator, biting filter, and punchy envelope right down to the fine details and quirks that made the SH-101 a go-to instrument for acid basslines, squelchy leads, and bubbly sequences. The SH-01A expands on the original with four-voice polyphony and 64 storable sequence patterns.
Four-Voice Polyphony & Sequencer
The original SH-101 was strictly monophonic. The SH-01A adds three more voices and four distinct play modes: Mono recreates the classic single-voice SH-101 experience, Unison stacks all four voices for massive bass and lead sounds, Poly enables four-note chords and pads, and Chord mode layers four notes at fixed intervals that transpose together in semitone steps.
The legendary 100-step sequencer is fully recreated, now with 64 storable pattern memories instead of the original's single sequence. An arpeggiator with three playback modes (Up, Down, Up/Down) and a three-way transpose switch round out the performance features. CV/Gate outputs (1V/oct) let you use the SH-01A as a MIDI-to-CV converter to control modular and vintage analog gear.
Specifications
- Maximum Polyphony: 4 voices
- Assign Modes: Mono, Unison, Poly, Chord
- Oscillator: 1 VCO (sawtooth, pulse with PWM, sub-oscillator, noise)
- Filter: 1 VCF (resonant low-pass)
- Amplifier: 1 VCA with ADSR envelope
- Modulation: 1 LFO with extended waveforms and clock rates
- Patch Memory: 64 slots
- Sequencer: 100 steps, 64 pattern memories, 4 notes polyphonic
- Arpeggiator: 3 modes (Up, Down, Up/Down) with hold
- Controllers: 2 ribbon controllers (pitch bend, modulation)
- Connectors: Micro-B USB (audio/MIDI), full-size MIDI In/Out, 3.5mm stereo output, 3.5mm headphones, 3.5mm mix input, 3.5mm ext clock input, CV output, Gate output
- Power: 4x AA batteries (NiMH or alkaline) or USB bus power (500 mA)
- Battery Life: Approx. 6 hours
- Built-in Speaker: Yes
- Dimensions: 300 x 128 x 46 mm (11-13/16" x 5-1/16" x 1-13/16")
- Weight: 965 g / 2 lbs 3 oz (with batteries)
In the Box
- Roland SH-01A Synthesizer Module
- Owner's Manual
- "Using the Unit Safely" leaflet
