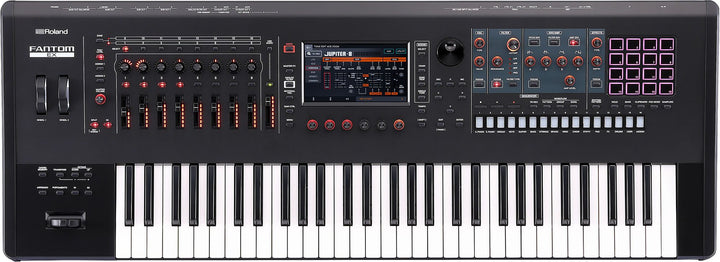

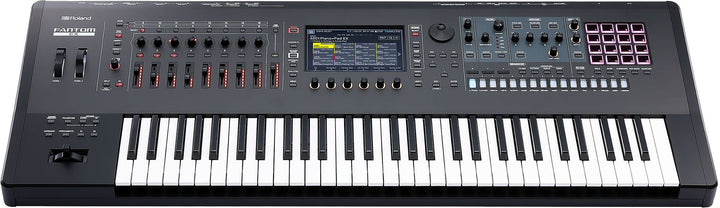

Roland FANTOM-6EX 61-Key Flagship Synthesizer Workstation

The Roland FANTOM-6EX is a 61-key flagship synthesizer workstation that represents the pinnacle of Roland's keyboard technology. Housing five advanced sound engines, a 7" color touchscreen, 11 preinstalled expansion titles, and over 7,000 sounds within a roadworthy metal chassis, the FANTOM-6EX delivers a complete creative ecosystem for professional sound design, sequencing, and performance.

Five Sound Engines & Expansions

FANTOM-6EX combines five sound engines in a single instrument. ZEN-Core handles PCM and virtual analog synthesis with up to 256-voice polyphony. Roland's ACB (Analog Circuit Behavior) technology provides component-level recreations of classic analog circuits. V-Piano delivers physically modeled grand piano sounds. SuperNATURAL produces realistic acoustic and electric instruments. And the VTW engine generates authentic tonewheel organ tones.

Eleven expansion titles come preinstalled: JUPITER-8, SH-101, and JX-3P ACB Expansions; n/zyme, JD-800, JUNO-106, JUPITER-8, JX-8P, and SH-101 Model Expansions; the German Concert V-Piano Expansion 01; and the SuperNATURAL Acoustic Piano 3 Expansion. The n/zyme engine is a wavetable synthesizer developed specifically for the FANTOM platform, combining wavetable oscillator layers, phase and shape modulation, resonant filters, and dual Step LFOs.

The 61-note semi-weighted keyboard with channel aftertouch provides fast, responsive playing for synth leads, pads, and organ parts. Multisampling supports up to 352 samples per tone. Two CV/Gate outputs allow integration with analog synthesizers and modular systems. A 6-in/32-out USB audio interface (24-bit/48 kHz) connects to your DAW, and the 16-track sequencer with TR-REC provides onboard composition tools.

Specifications

• Keyboard: 61 keys, semi-weighted with channel aftertouch
• Sound Engines: ZEN-Core, ACB, V-Piano, SuperNATURAL, VTW Organ, n/zyme
• Polyphony: 256 voices (ZEN-Core)
• Sounds: 7,000+ tones, 90+ drum kits
• Parts: 16 zones (internal + external), up to 4 sound layers each
• Scenes: 128 x 4 banks
• Effects: Multi-effect per part, 2 insert effects, 6 drum part compressors, Master Compressor, Master EQ, 90 effect types including Shimmer Reverb and Modulation Reverb
• Sequencer: 16 MIDI tracks, Realtime/Step/TR-REC recording
• Display: 7" color touchscreen
• Audio Interface: USB, 24-bit/48 kHz, 6 inputs / 32 outputs
• Connections: Main Out (1/4" + XLR), Sub Out (4 x 1/4"), Headphones (1/4"), Mic Input (2 x XLR-1/4" combo), MIDI In/Out/Thru, 2 x CV Out, 2 x Gate Out, 4 x USB-A, 1 x USB-B, 3 Foot Pedal jacks
• Dimensions: 42-11/16" x 15-7/8" x 4-3/16" (1,084 x 403 x 106 mm)
• Weight: 33 lbs 12 oz (15.3 kg)

In the Box

• Roland FANTOM-6EX Synthesizer
• Power Cable
• Operating Instructions
