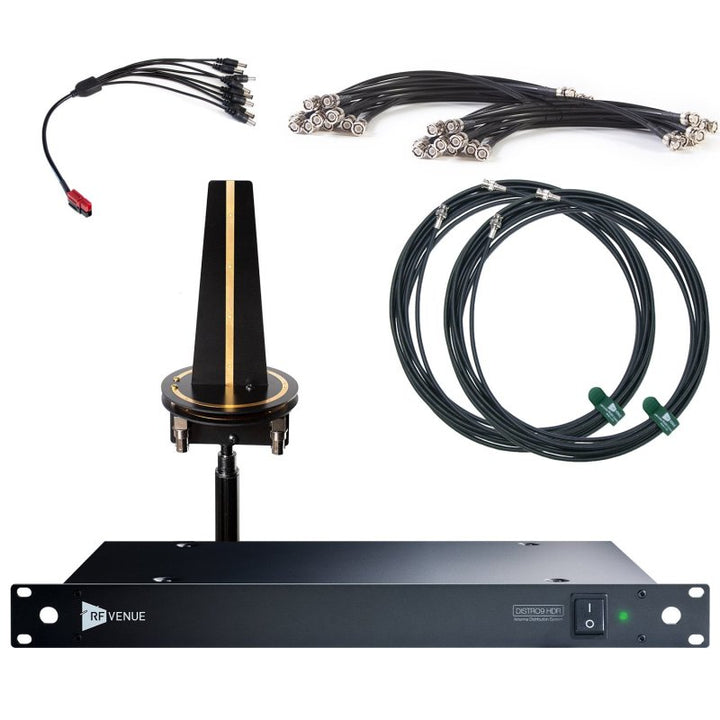

D-OMNID9

This turnkey bundle includes everything needed to configure up to 9 channels of wireless microphones.

About the Diversity Omni Antenna

Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.

The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.

About the DISTRO9 HDR

The DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. The DISTRO9 saves time and rack space by offering 9 outputs and inputs for 2 zones in just one rack space. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing a high dynamic range over the spectrum. The DISTRO9 HDR makes multi zone installations easy by providing two zone antenna inputs, this allows for coverage of large areas or multiple rooms and has DC power available for in-line amplifiers or active antennas.

About RF Venue Coaxial Cables

Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.

RF Venue provides premium made in USA low loss, 50O RG8X coaxial cable with BNC male connectors for wireless audio applications. Our cables are custom made to our specifications: double shielded braid over foil with a perfect balance between loss and flexibility.
