PTZOptics PT20XSE-PRODUCER-JOY4 Producer-SE Camera & Controller Bundle (Gray)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

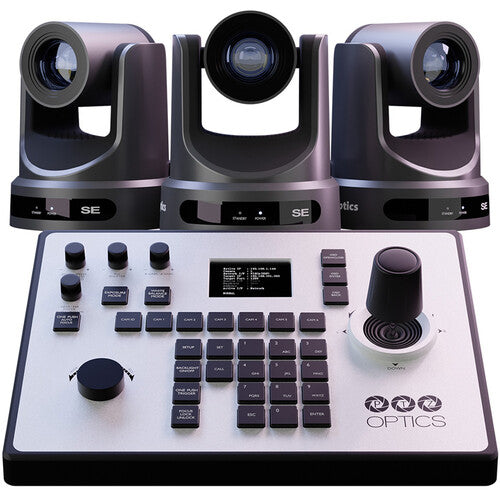

Set up your remotely controlled multi-camera production with this Producer-SE Camera & Controller Bundle from PTZOptics. The bundle includes three gray Move SE PTZ cameras with 20x optical zoom and the PT-JOY-G4 IP/serial camera controller.

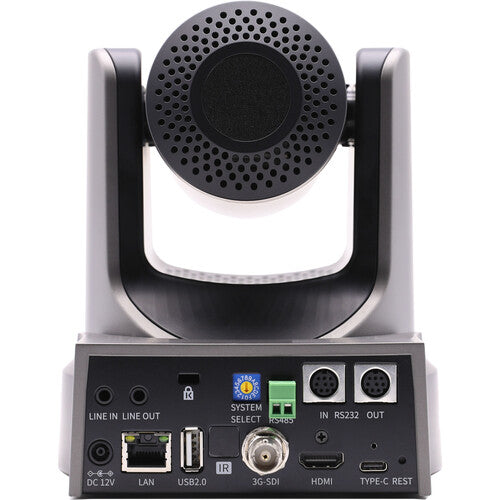

Each Move SE camera can capture up to 1080p video and it features 20x optical zoom, 16x digital zoom, a tally light, serial and IP control, and it can output video via HDMI, 3G-SDI, USB, or IP streaming. It can also output NDI|HX video with an optional upgrade. The PT-JOY-G4 remotely controls the three cameras and up to 255 total cameras using IP or serial and provides pan/tilt/zoom/iris/focus and configuration control.

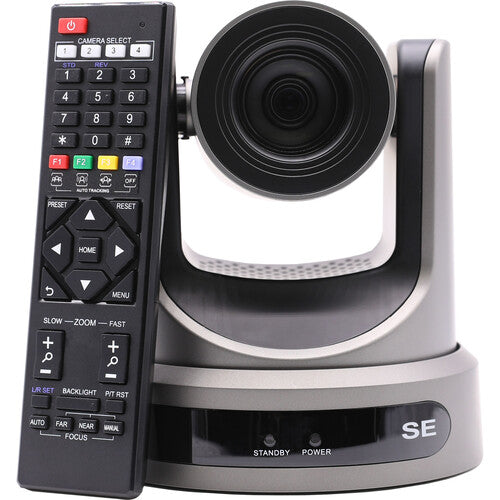

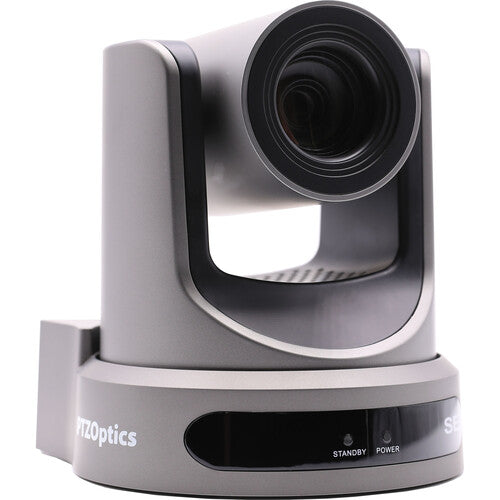

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Move SE camera captures resolutions up to 1080p60 IP, HDMI, USB-C, and 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. It features wide dynamic range, 3D noise reduction, and superior low-light performance. There is also a free upgrade available for NDI|HX support.
The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.

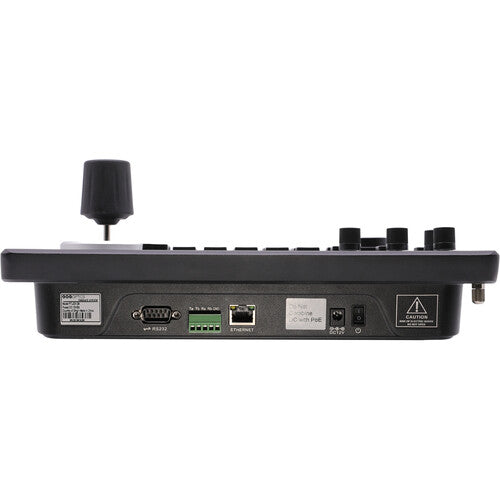

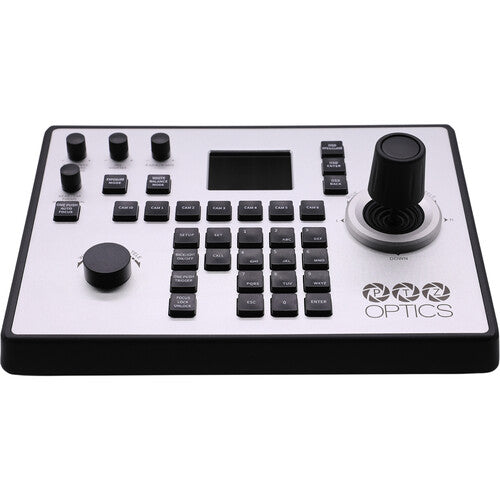

Control up to 255 PTZ cameras using IP or serial communication with the 4th generation PT-JOY-G4 IP/Serial Joystick Controller from PTZOptics. The PT-JOY-G4 offers joystick and button control for up to 255 PTZ cameras via IP and seven cameras via serial protocols, with support for VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen as well as an on-screen display on your camera feed.
The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer settings on the PTZ cameras. Other features include glowing buttons for working in the dark, 255 camera presets, and nine quick preset buttons. You can import and export configurations using IP.
The PT-JOY-G4 supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and a 12 VDC universal power supply. It can also be powered using Power-over-Ethernet (PoE).
- IP, RS-232, RS-422, and RS-485 communication
- VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
- Camera on-screen display control and built-in LCD screen
- Control up to 255 cameras
- Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, BirdDog, and NewTek, with limited Sony PTZ control
- Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly
- Store 255 presets and nine quick presets
- Exposure and white balance control
- Power-over-Ethernet (PoE) support
- Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock
- Glowing buttons for viewing in dark rooms
- Import and export settings via LAN
- Power adapter and 8' RS-232C cable are included
- VISCA: Serial connections include PTZ cameras with RS-232 and RS-485 from brands such as Aver, AIDA, BirdDog, Bolin, ClearOne, DataVideo, JVC, Lumens, Marshall Electronics, RGBLink, Sony
- Sony VISCA over IP: Includes PTZ cameras from AIDA, AVer, Bird-Dog, Bolin, BZBGear, ClearOne, JVC, Lumens, Sony
- PTZOptics VISCA: All PTZOptics cameras
- Pelco-P and Pelco-D: Includes PTZ cameras from Bird-Dog, DataVideo, JVC, Lumens, RGBLink, Marshall Electronics
- ONVIF: The PTZOptics IP joysticks can control ONVIF cameras (ONVIF stands for Open Network Video Interface Forum, originally created by Axis and the main pan, tilt, and zoom control protocol used by security cameras)
Features
- 3 x Move SE PTZ Cameras with 20x Zoom
- PT-JOY-G4 IP/Serial Controller
- SDI/HDMI/USB/IP Outputs
- Capture up to 1080p60 Video
Specifications
| Image Sensor | |
| Effective Sensor Resolution | |
| IR Cut Filter | |
| Focus Control |
| Shutter Speed | |
| Signal-to-Noise Ratio | |
| Minimum Illumination | |
| Flip / Mirror Support | |
| White Balance |
| Focal Length | |
| Max Optical Zoom | |
| Max Digital Zoom | |
| Field of View | |
| Maximum Aperture |
| Video Output |
