Description
TAA-compliant build of this camera, for government and other buyers who require Trade Agreements Act compliance.

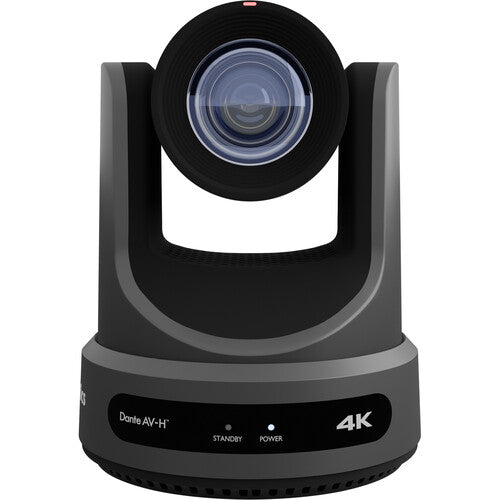

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Link 4K camera features the same 4K capture resolutions up to UHD 4K60 via IP and HDMI, up to 1080p60 over 3G-SDI, and it adds support for Dante AV-H audio and video routing.
The Link 4K features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and handy Dante AV-H workflow capabilities provide a sharp, consistent image, even in low light.
The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using Dante AV-H, SRT, RTSP, and RTMP protocols.

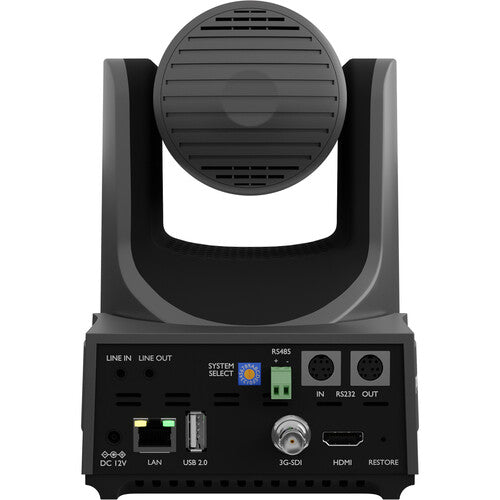

The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
In addition to the Link 4K's auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.
- 1/1.8" CMOS 8.42MP 4K Sensor
- Capture up to UHD 4K60, Auto-Tracking
- HDMI, 3G-SDI, USB 2.0 Output
- Dante AV-H, SRT, RTMPS, RTSP Streaming
- 20x Optical Zoom, 16x Digital Zoom
- 255 Presets, 3.5mm Stereo Audio In/Out
- 3.5 to 60.7° Angle of View
- RS-232, RS-485 & IP Control Support
- Supports H.265/H.264/MJPEG Compression
- DC & PoE Support, Tally Light
Specifications
| Image Sensor | |
| Effective Sensor Resolution | |
| IR Cut Filter | |
| Focus Control |
| Shutter Speed | |
| Signal-to-Noise Ratio | |
| Minimum Illumination | |
| Flip / Mirror Support | |
| White Balance |
| Focal Length | |
| Max Optical Zoom | |
| Max Digital Zoom | |
| Field of View | |
