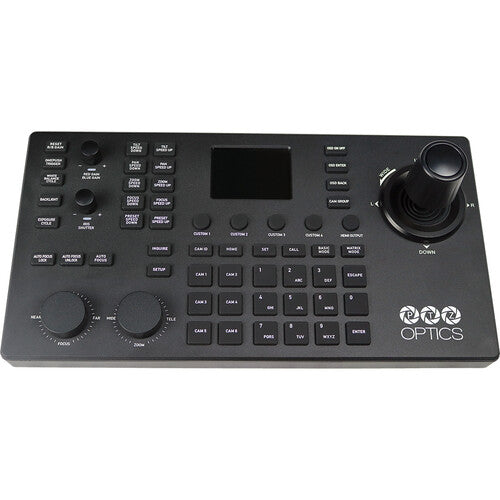

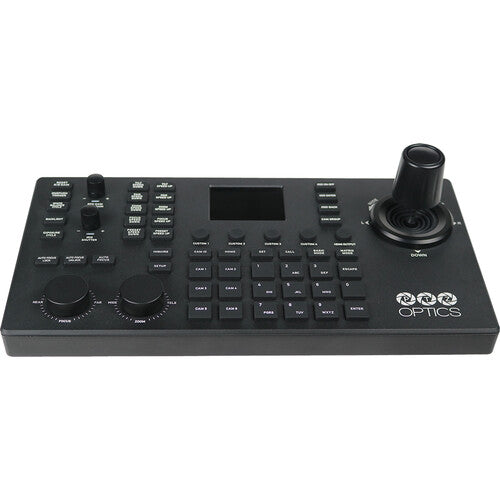

PTZOptics PT-SUPERJOY-G1 SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics . The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.
The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.
The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).
Features
- Limited NDI|HX and Sony control
- IP, RS-232, RS-422, and RS-485 communication
- VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
- Camera on-screen display control
- Control four groups with up to seven cameras in each group for a total of 28 cameras
- Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek
- Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly
- 255 presets, nine quick presets, four super presets
- Exposure and white balance control
- Four customizable buttons using TCP, UDP, and HTTP control
- Program and RTSP output via HDMI
- Power-over-Ethernet (PoE) support
- Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock
- Glowing buttons for viewing in dark rooms
- Large LCD screen with controller status
- Import and export settings via LAN or USB
- Power adapter and 8' RS-232C cable are included
- VISCA: Serial connections include PTZ cameras with RS-232 and RS-485 from brands such as Aver, AIDA, Bird-Dog, Bolin, ClearOne, DataVideo, JVC, Lumens, Marshall Electronics, RGBLink, Sony
- Sony VISCA over IP: Includes PTZ cameras from AIDA, AVer, Bird-Dog, Bolin, BZBGear, ClearOne, JVC, Lumens, Sony
- PTZOptics VISCA: All PTZOptics cameras
- NDI (SuperJoy only): Includes NDI PTZ cameras from AIDA, AVer, BirdDog, Bolin, BZBGear, Canon, ClearOne, DataVideo, HuddleCamHD, JVC, Lumens, Marshall Electronics, NewTek, Panasonic, RGBLink
- Pelco-P and Pelco-D: Includes PTZ cameras from Bird-Dog, DataVideo, JVC, Lumens, RGBLink, Marshall Electronics
- Panasonic (PT-JOY-G4 and SuperJoy only): Panasonic cameras
- ONVIF: The PTZOptics IP joysticks can control ONVIF cameras (ONVIF stands for Open Network Video Interface Forum, originally created by Axis and the main pan, tilt, and zoom control protocol used by security cameras)
Specifications
| Number of Supported Cameras | |
| Supported Control Protocols | |
| Control I/O | |
| Other I/O | |
| Video I/O | |
| Controls | |
| Presets |
| Touchscreen |
| PoE Support | |
| Power Connectors | |
| Power Consumption | |
| Input Power |
| Operating Conditions | |
| Security Lock Support | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
