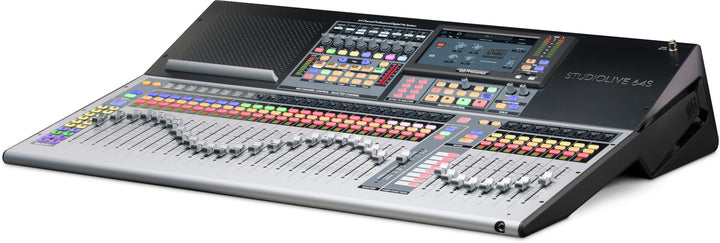

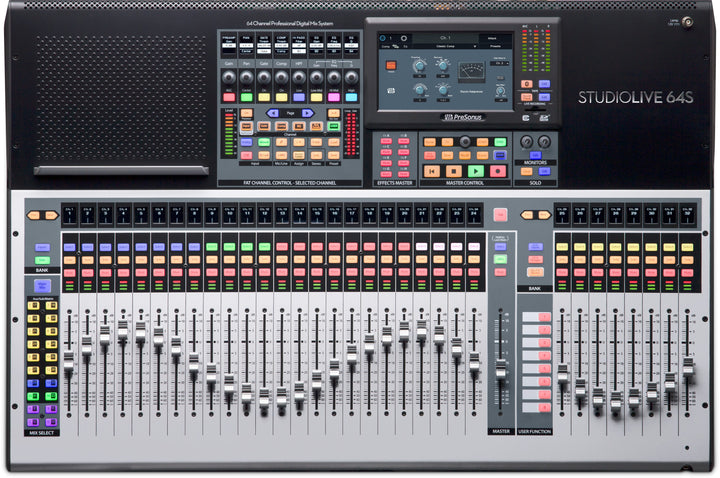

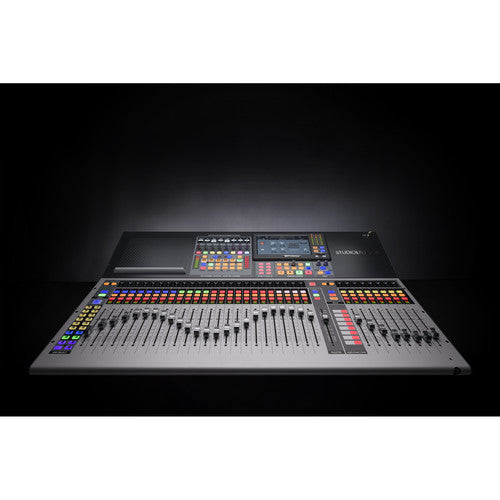

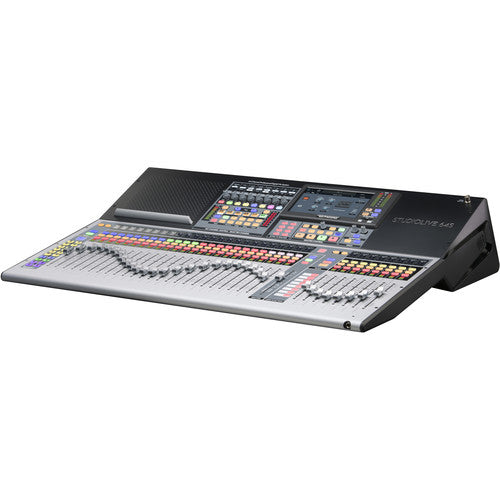

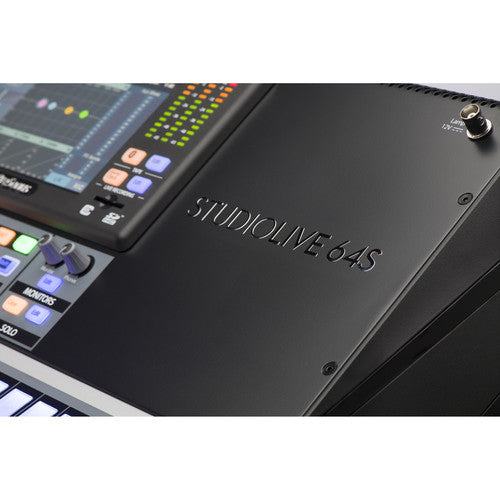

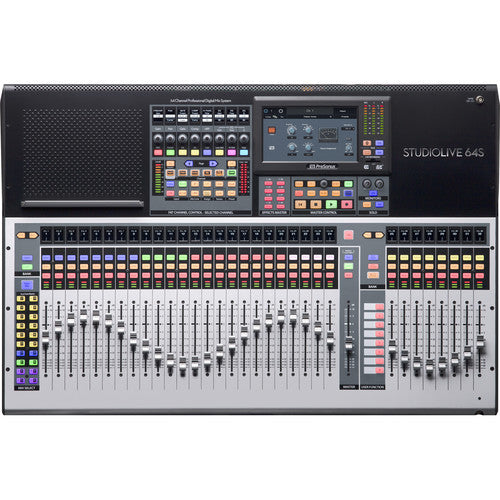

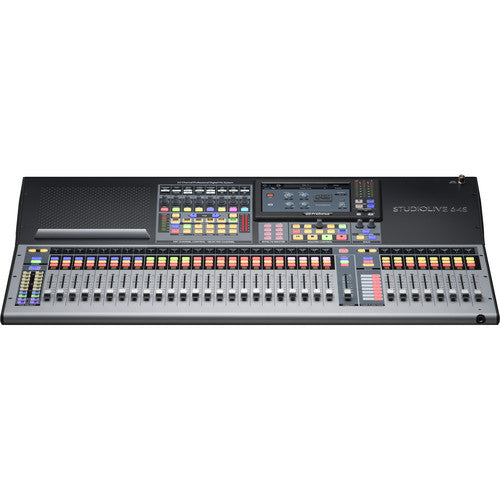

StudioLive 64S Series III Digital Mixer
64-channel/43-bus digital console
$5,499.00
Available Online
Once your order is placed with the manufacturer, it will be sent out to you as fast as possible.
Description
- Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class

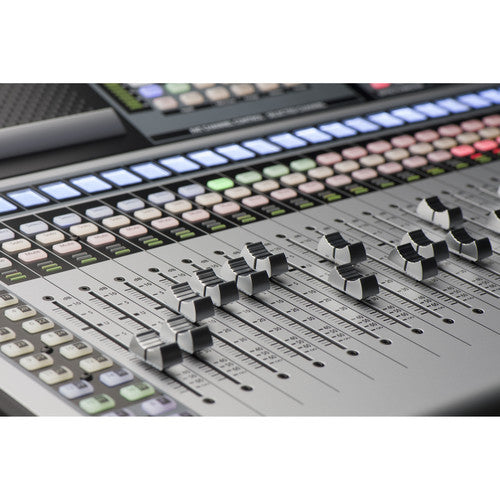

- 76 input-channel digital mixer with 33 touch-sensitive motorized faders
- 64 channels (individually sourced from any of the 32 local digitally controlled XMAX mic/line inputs or any AVB, USB, or SD input)
- 43 mix buses
- 526 simultaneous processors
- State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Advanced Studio One integration (Studio One Artist Included)

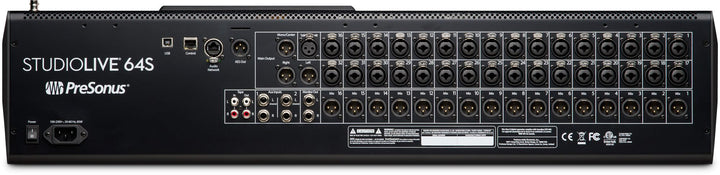

- Input Type: XLR Female, balanced
- Frequency Response to Main Output (at unity gain): 20-20 kHz, 0.5 dBu
- Input Impedance: 1 kΩ
- THD to Main Output: < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
- S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
- Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
- Gain Control Range (+/-1 dB): 0 dB to +60 dB
- Maximum Input Level (unity gain): +12 dBu
- Phantom Power (+/-2 VDC): 48 VDC, switchable per channel
- Type: 1/4" TRS Female, balanced
- Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
- Input Impedance: 10 kΩ
- THD to Main Output: < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
- S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
- Maximum Input Level: +18 dBu
- Type: RCA Female, unbalanced (stereo pair)
- Maximum Input Level: +12 dBu, 0.5 dBu
- Type: XLR Male, balanced
- Maximum Output Level: +24 dBu, +/-0.5 dBu
- Output Impedance: 100Ω
- Type: 1/4" TRS Female, balanced
- Maximum Output Level: +18 dBu, +/-0.5 dBu
- Output Impedance: 100Ω
- Type: RCA Female, unbalanced (stereo pair)
- Maximum Output Level: +18 dBu, +/-0.5 dBu
- Output Impedance: 100Ω
- Type: 1/4" TRS Female, active stereo
- Maximum Output: 100 mW/ch. @ 60Ω load
- Frequency Response: 20 Hz 20 kHz (+/- 0.5 dB)
- THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
- S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
- Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
- Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
- ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
- DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
- USB Recording Port: USB 2.0, Type-B
- Bluetooth Input: 4.1, stereo
- AES/EBU Output: XLR Male
- Network Control Port: RJ-45
- AVB Audio Network Port: Locking XLR Ethernet
- Internal Processing: 32-bit, floating point
- Sampling Rate: 48 kHz, 44.1 kHz
- A/D/A Bit Depth: 24
- Reference Level for 0 dBFS: +18 dBu
- Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
- Jitter: < 20 ps RMS (20 Hz - 20 kHz)
- Jitter Attenuation: > 60 dB (1 ns in, 1 ps out)
- Connector: IEC
- Input-Voltage Range: 90 to 230 VAC (+/-10%)
- Power Requirements (continuous): 85W

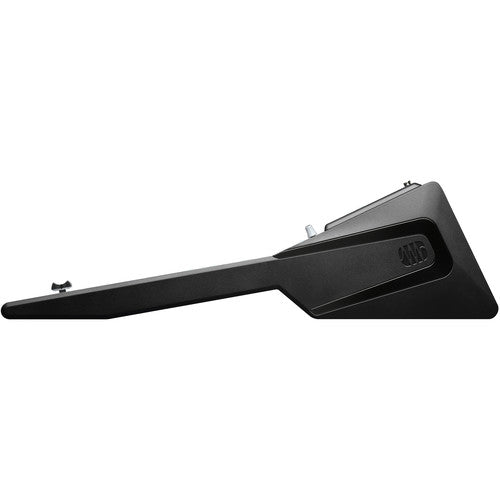

- Dimensions: 32.37" x 22.97" x 6.51" (82.2 x 58.4 x 16.5 cm)
- Weight: 37.2 lbs. (16.9 kg)
