Description

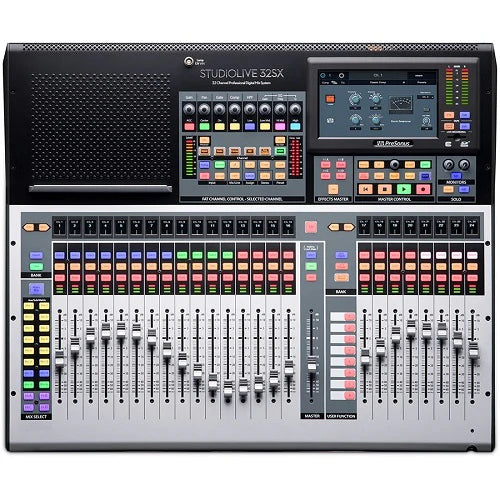

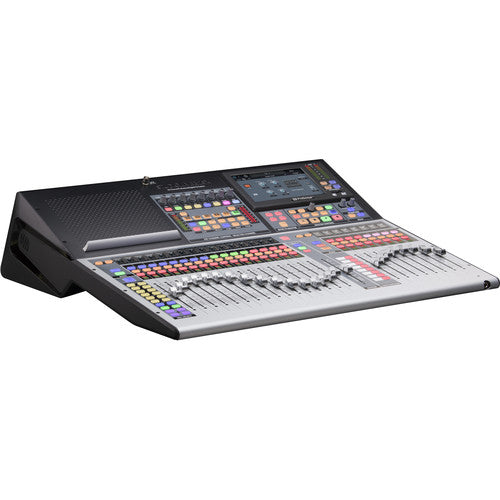

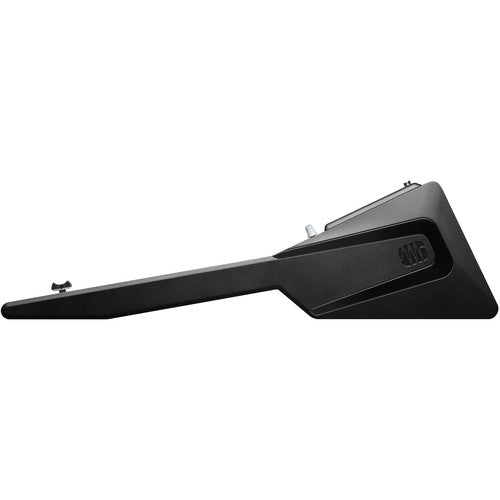

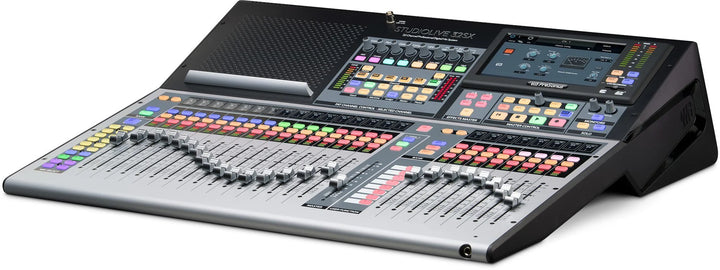

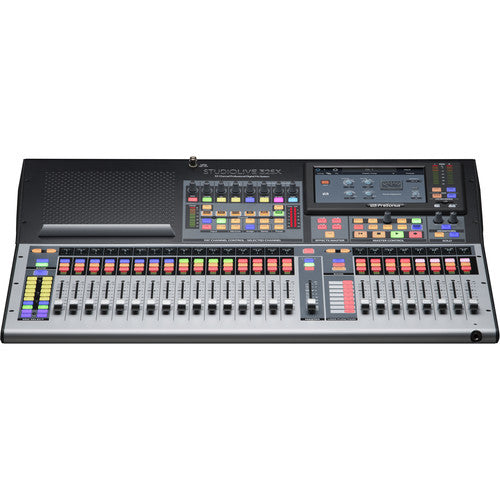

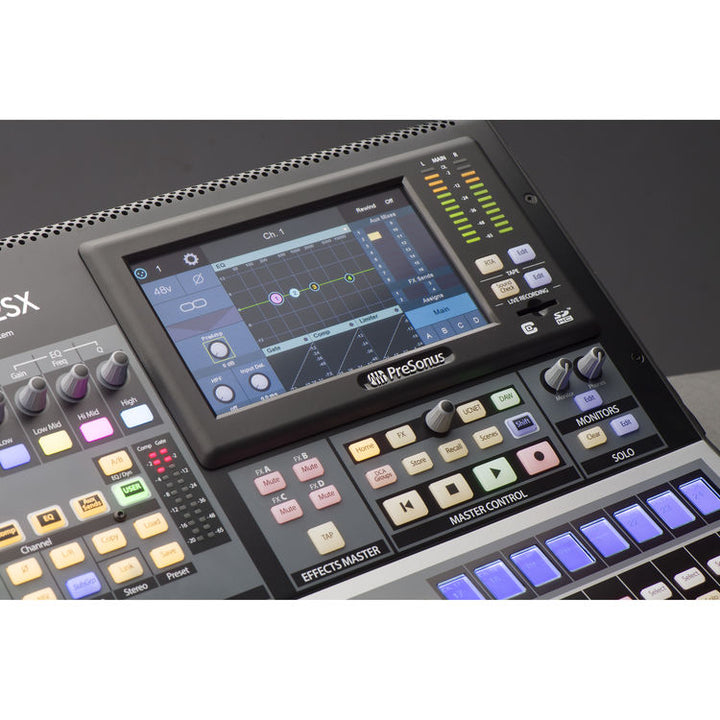

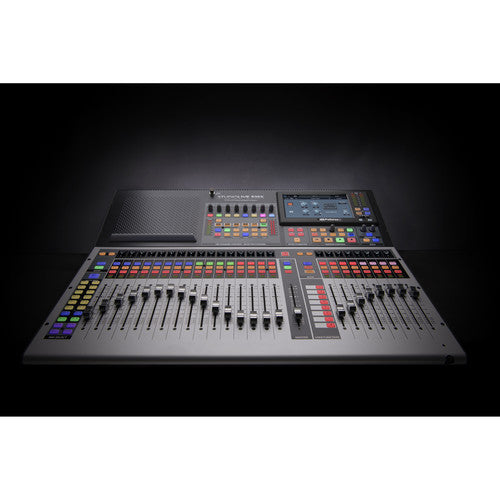

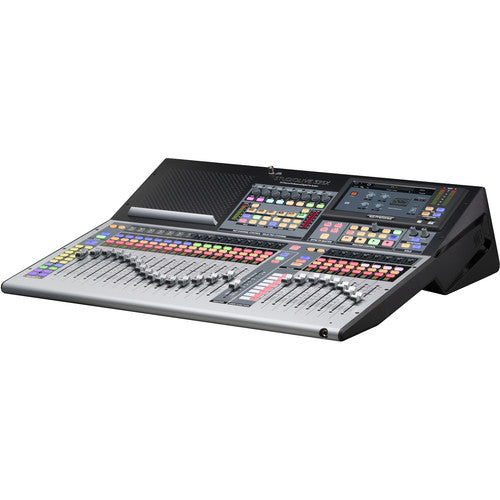

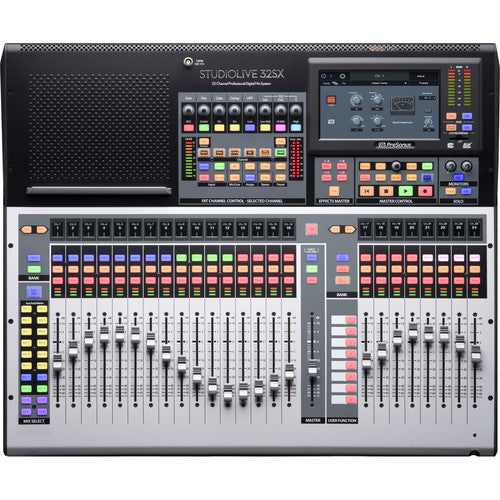

The PreSonus StudioLive 32SX is a Series III S 32-channel digital console, recorder, and audio interface in a low-profile, space-saving frame. It features 25 touch-sensitive motorized faders, a full-color touchscreen, and 32 recallable XMAX preamps across 16 XLR inputs and 16 XLR-1/4" combo inputs. The dual-core FLEX DSP engine powers 286 simultaneous processors including Fat Channel vintage-style EQs and compressors on every channel, plus four FLEX FX slots for reverbs and delays.
Mixing and DSP

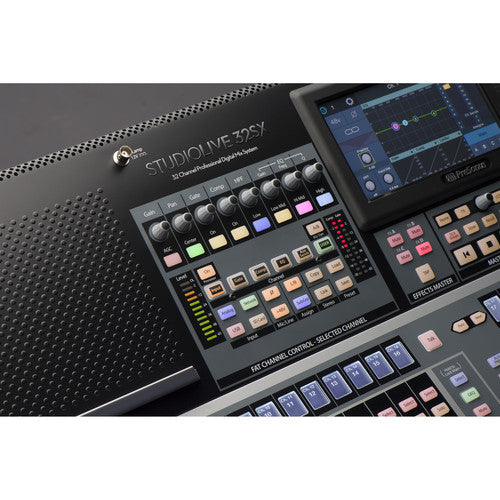

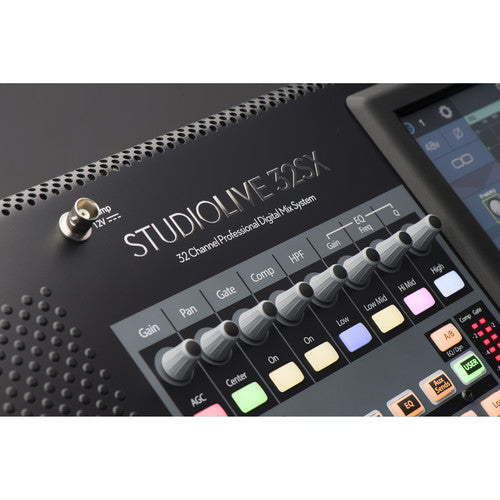

The StudioLive 32SX provides 40 mixing channels and 26 buses, including 16 FlexMixes configurable as aux, subgroup, or matrix mixes, four dedicated effects buses, four subgroups, and 24 DCAs. The fixed input layer Fat Channel gives direct access to processing on every channel. Scene presets and virtual sound check streamline workflow during complex productions.
Recording and Interface
A built-in USB audio interface provides multitrack recording to your DAW, and an onboard SD card recorder captures mixes without a computer. Record redundantly to both an SD card and a USB host computer simultaneously. The mixer includes Capture live-recording software and UC Surface remote control.
AVB Networking
Built-in AVB networking enables flexible system expansion and digital patching between networked devices including NSB-series stage boxes and EarMix 16M personal monitor mixers.

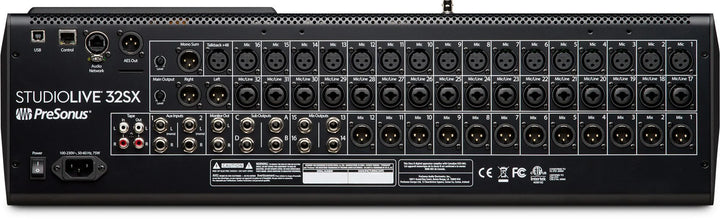

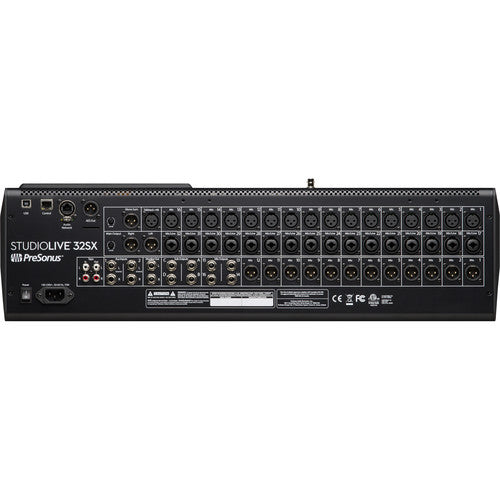

Inputs and Outputs
- 16 XLR mic inputs
- 16 XLR-1/4" combo mic/line inputs
- 4 x 1/4" aux inputs
- Dedicated XLR talkback mic input with phantom power
- Stereo RCA tape inputs and outputs
- Stereo XLR main outputs
- Balanced XLR mono output
- 16 analog FlexMix outputs (12 XLR, 4 x 1/4" TRS)
- 1/4" monitor outputs (pair)
- 1/4" headphone output
- AES/EBU digital output (XLR)
Specifications
- Mixing channels: 40
- Mix buses: 26
- Recallable XMAX preamps: 32

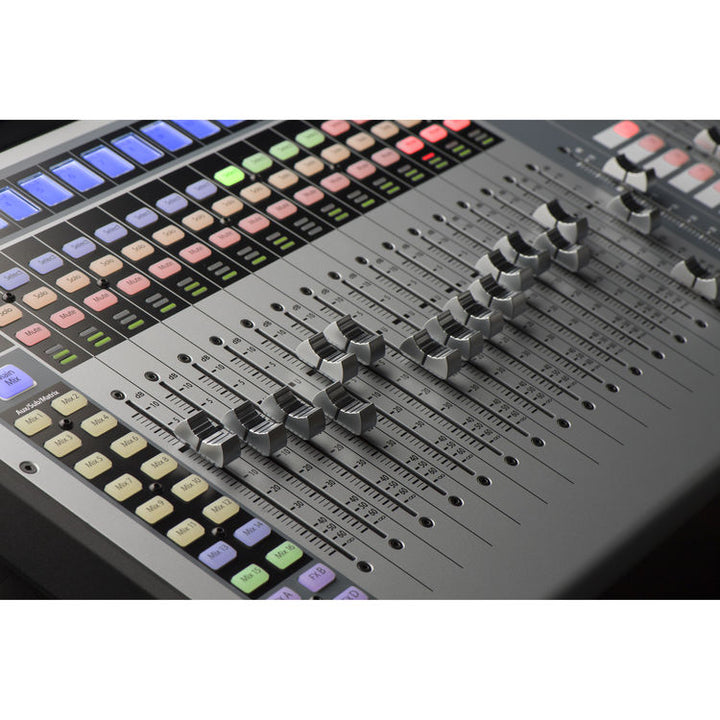

- Motorized faders: 25 (touch-sensitive)
- DSP engine: Dual-core FLEX
- Simultaneous processors: 286
In the Box
- PreSonus StudioLive 32SX
- Quick Start Guide
