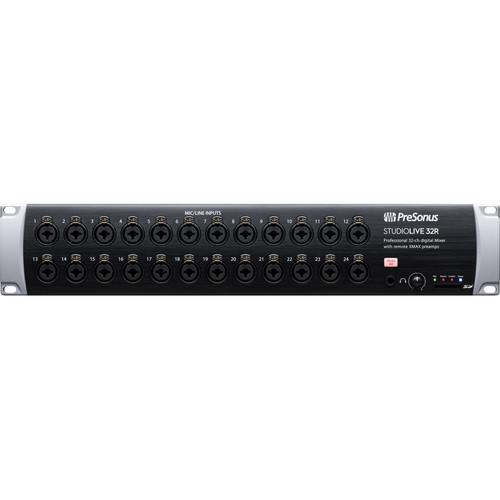

StudioLive Series III 32R Digital Rack

The StudioLive 32R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 32R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snakeand the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 32R's preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 32R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class--all packed into just two rackspaces (2U).

SPECIFICATIONS

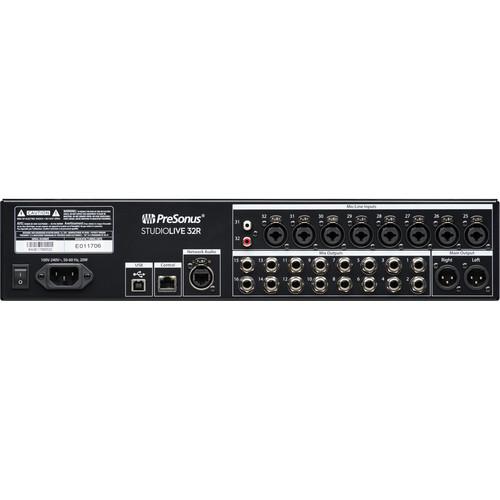

Local Inputs and Outputs:

34 total inputs

32 min/line channel inputs + 2 RCA inputs

16 1/4-inch TRS FlexMix outputs

2 XLR (L/R) Main outputs

Stereo headphone output

Channels and Buses:

32 input channels

2 stereo aux inputs (AVB or USB)

1 stereo digital return (SD Card, AVB, or USB)

26 buses: 16 FlexMixes (can be designated as aux, subgroup, or matrix mixes) 4 dedicated subgroups, 4 internal effects sends, Stereo main bus

24 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections:

1 Ethernet control network port: Dynamic, Self Assigned, and Manual IP address modes

1 Ethercon AVB audio network port

Recording:

Onboard stereo SD recorder

40x40 USB recording interface

55x55 AVB recording interface

Signal Processing

Intuitive Fat Channel signal processing on every channel with:

A/B settings comparison

Highpass filter and polarity reverse

Gate/expander with sidechain

Compressor with sidechain

4-band parametric EQ on inputs

6-band parametric EQ on outputs

Limiter

Delay on every input

Delay on every output

Professionally programmed library of presets

Vintage EQ and compressor models available on every input:

Passive EQ

Vintage EQ

Tube compressor

FET compressor

8 31-band graphic EQs

4 internal effects buses: combination of reverbs and delays with modern and vintage options

Built-in real-time analyzer

Scenes and Presets:

Create, save, and edit up to 100 scenes

Scene management with Scene Safeprevents a scene change from affecting designated safe channels

Create, save, and edit channel settings and copy/paste between channels

Advanced channel preset options can save and recall:

Channel type and name

Input settings (preamp, +48V phantom power, polarity, pan)

Fat Channel A & B settings

Bus assignments

Aux and effects send levels and pan

Select button colour

8 Quick Scenes

8 Mute groups

Digital:

Studio-quality converters with 115 dB dynamic range

48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

Actively Integrated Software:

UC Surface touch control software for Mac, Windows, iPad, and Android

Studio One Artist digital audio workstation software for Mac and Windows

Capture multitrack recording software for Mac and Windows

QMix-UC aux-control software for iOS and Android available free from Apple App Store and Google Play

SYSTEM REQUIREMENTS

Mac:

Mac OS X 10.8.5 64-bit or later

Intel Core 2 Duo processor (Intel Core i3 or faster recommended)

4 GB RAM (8 GB or more recommended)

Windows:

Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, • Windows 10 x64/x86

Intel Core 2 Duo (Intel Core i3 or faster recommended)

4 GB RAM (8 GB or more recommended)

Mac and Windows Systems:

USB 2.0 port

Internet connection

Internal or external 7200 RPM storage drive highly recommended

34 GB hard disk space

Monitor with 1366x768 resolution

iOS:

iOS 9.3 or later

iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2


Android (QMix-UC):

Android 5.0 (Lollipop) or later

Android smartphone (QMix-UC)

Android tablet (8-inch) with 1024x768 resolution (UC Surface)
