Description
The PreSonus NSB 32.16 is an AVB-networked stage box that provides 32 locking combo mic/line inputs with remote-controlled XMAX preamps and 16 locking XLR outputs. All inputs feature wide dynamic range Class A XMAX preamps and are remote-controllable from a StudioLive Series III console or via UC Surface software. Gain compensation provides independent control from multiple mixers.
AVB Networking

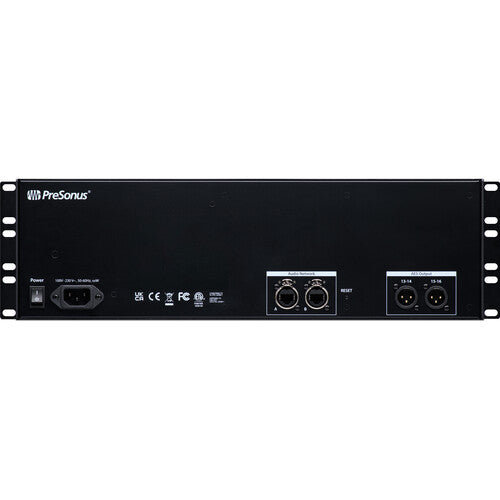

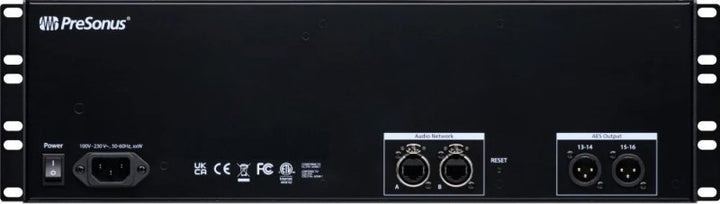

A built-in 2-port AVB switch lets you daisy-chain multiple units for scalability. The stage box provides 64x16 AVB channels (32 direct input channels plus 32 gain-compensated input channels). Two stereo AES3 digital outputs are also available. The rugged 3U 19-inch rack chassis features multi-position rack ears for flexible installation providing access to I/O from the front or rear.
Installation
The NSB 32.16 can be flush or recess mounted and is compatible with most racks and universal stage pockets. Multi-position rack ears allow flexible orientation of the unit for different installation requirements.

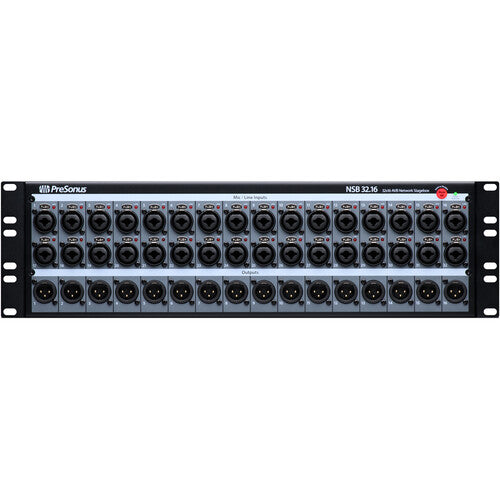

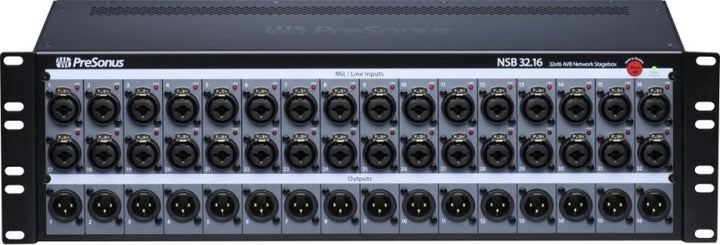

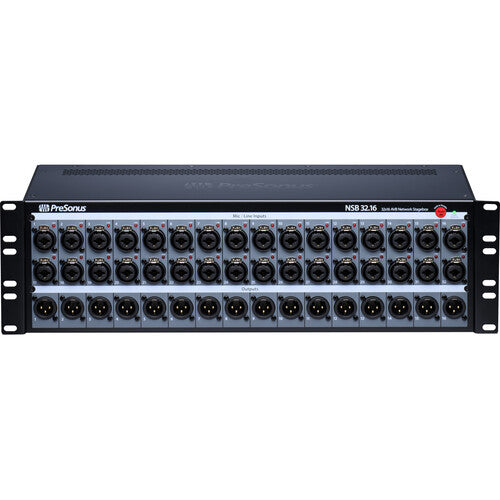

Inputs and Outputs
- 32 locking combo mic/line inputs with remote-controlled XMAX preamps
- 16 locking XLR outputs
- 2 stereo AES3 digital outputs
- 2 AVB ports with locking XLR Ethernet jacks
- +48V phantom power with indicators
Specifications
- Mic/line inputs: 32 (locking combo)
- XLR outputs: 16 (locking)
- AES3 digital outputs: 2 stereo
- AVB channels: 64x16
- AVB ports: 2 (locking XLR Ethernet)
- Preamps: 32 remote-controlled XMAX with gain compensation
- Phantom power: +48V
- Form factor: 3U, 19-inch rack with multi-position ears
- Compatibility: StudioLive Series III
In the Box
- PreSonus NSB 32.16
- Quick Start Guide
