Description

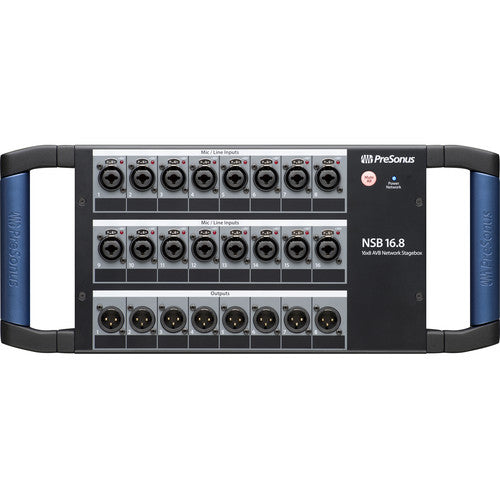

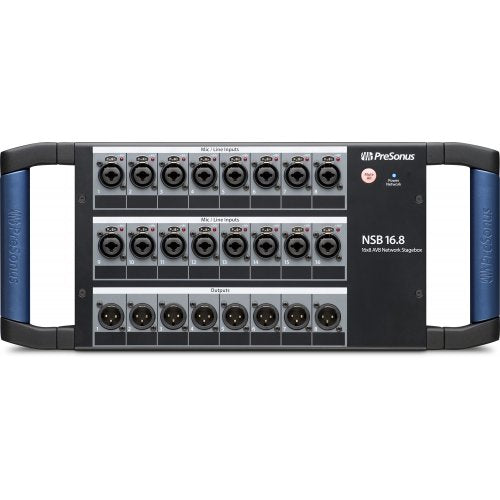

The PreSonus NSB 16.8 is an AVB-networked stage box that provides 16 locking combo mic/line inputs with remote-controlled XMAX preamps and 8 locking XLR outputs. It connects to StudioLive Series III mixers over AVB for remote preamp control, gain compensation for shared input scenarios, and 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console or via UC Surface software.
AVB Networking
A built-in 2-port AVB switch lets you daisy-chain multiple NSB units for scalable system expansion. All eight outputs employ locking XLR jacks for secure connections on stage. The rugged stage box enclosure with handles is built to survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit.
Inputs and Outputs
- 16 locking combo mic/line inputs with remote-controlled XMAX preamps
- 8 locking XLR outputs

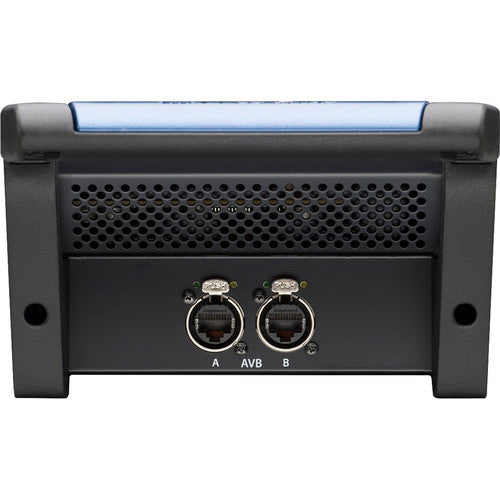

- 2 AVB ports with locking XLR Ethernet jacks
- +48V phantom power with indicators
Specifications
- Mic/line inputs: 16 (locking combo)
- XLR outputs: 8 (locking)
- AVB ports: 2 (locking XLR Ethernet)
- Preamps: 16 remote-controlled XMAX with gain compensation
- Phantom power: +48V
- Compatibility: StudioLive Series III
In the Box
- PreSonus NSB 16.8
- Quick Start Guide
