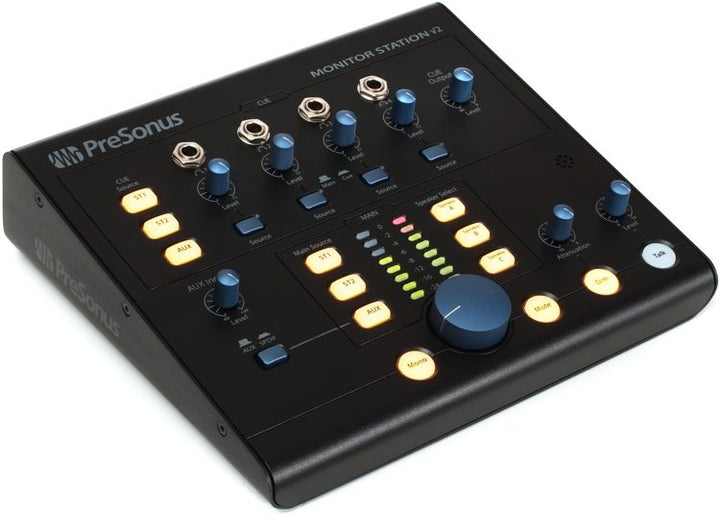

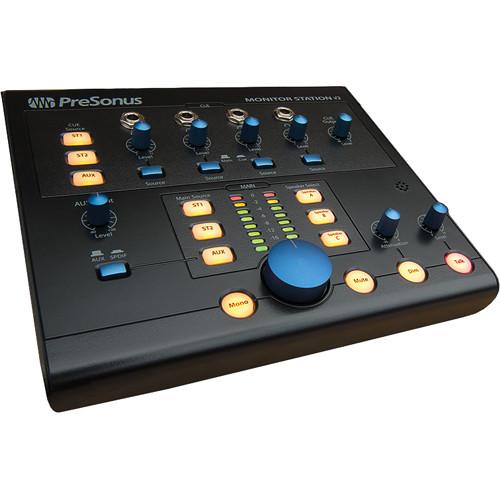

PreSonus Monitor Station V2 Desktop Studio Control Center

The PreSonus Monitor Station V2 is a desktop speaker-management solution that lets you manage multiple audio sources, multiple sets of monitor speakers, and four headphone outputs from a single surface. It brings professional monitoring features to any studio at an affordable price, with talkback functionality to communicate with performers during sessions.

Source Selection

Switch between up to four audio sources: two stereo pairs of 1/4" TRS inputs, one stereo pair of RCA aux inputs, and one stereo S/PDIF coaxial digital input (44.1/48/88.2/96 kHz). Individual source select switches let you quickly audition between them.

Speaker and Headphone Outputs

Audition your music with three stereo pairs of speaker outputs, each with separate level control, plus a stereo pair of main outputs and a cue output pair. Four high-output stereo headphone outputs with individual volume controls ensure your musicians hear every note clearly.

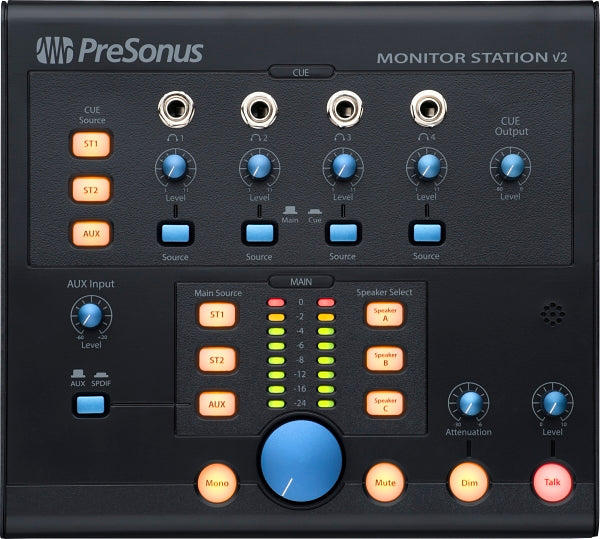

Talkback and Controls

A built-in talkback microphone lets you communicate with performers directly from the desktop. The large main level control and ergonomic layout keep everything within easy reach.

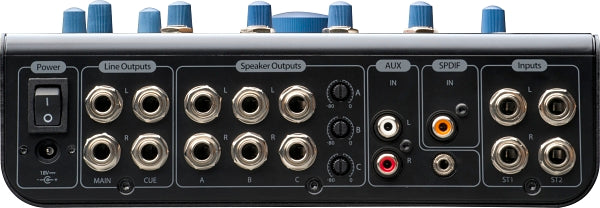

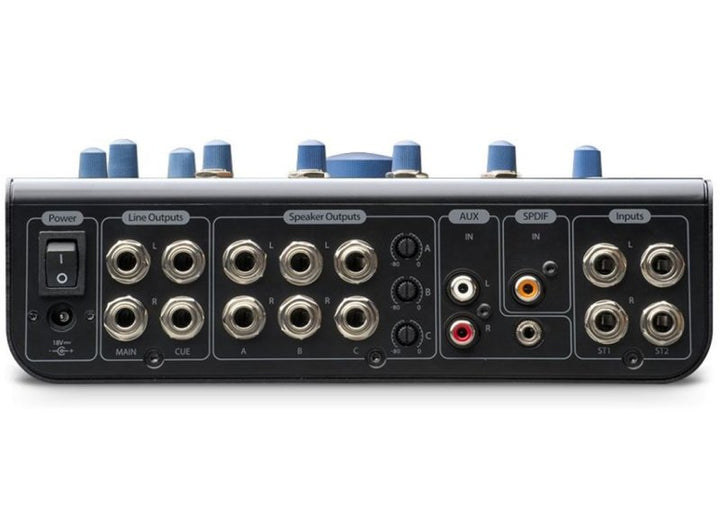

Specifications

• Analog inputs: 2 stereo pairs 1/4" TRS, 1 stereo pair RCA aux
• Digital input: 1 stereo S/PDIF coaxial (44.1/48/88.2/96 kHz)
• Speaker outputs: 3 stereo pairs 1/4" TRS with level controls
• Main outputs: 1 stereo pair 1/4" TRS
• Cue outputs: 1 stereo pair 1/4" TRS
• Headphone outputs: 4 stereo 1/4" TRS
• Talkback: Built-in microphone

In the Box

• PreSonus Monitor Station V2
• Quick Start Guide
