HP60 6-Channel Headphone Mixing System

FEATURES:

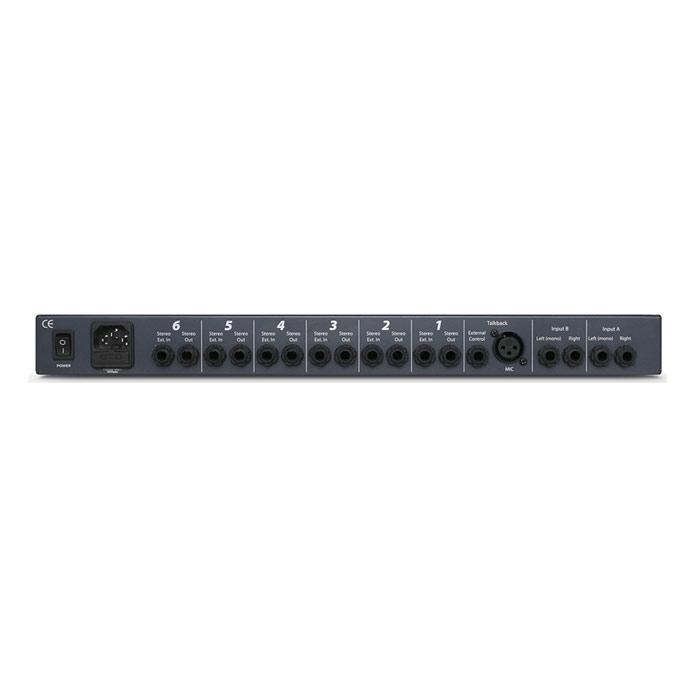

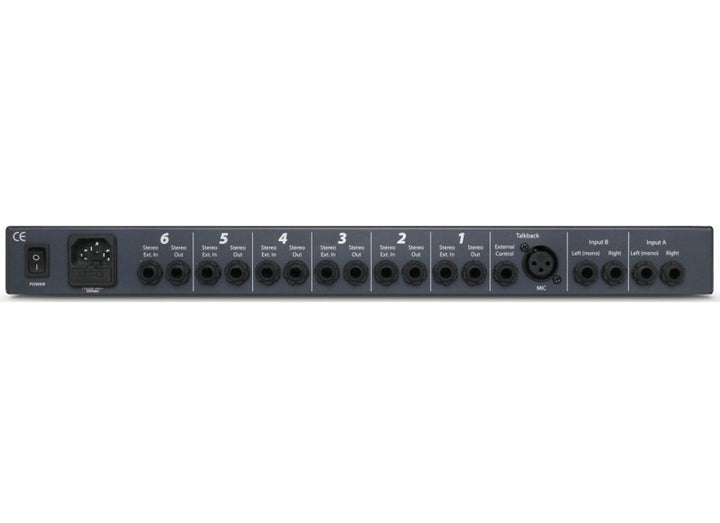

Input/Output

• 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
• 6 unbalanced stereo ¼” line outputs (1 per channel); carries a copy of the channel mix
• 6 unbalanced stereo ¼” external analog line inputs (1 per channel) for “more me,” with trim controls
• 4 balanced ¼” analog line inputs (L/R Mix input pairs A and B)
• 1 balanced XLR Talkback input for external dynamic microphone
• 1 ¼” footswitch jack for hands-free Talkback operation

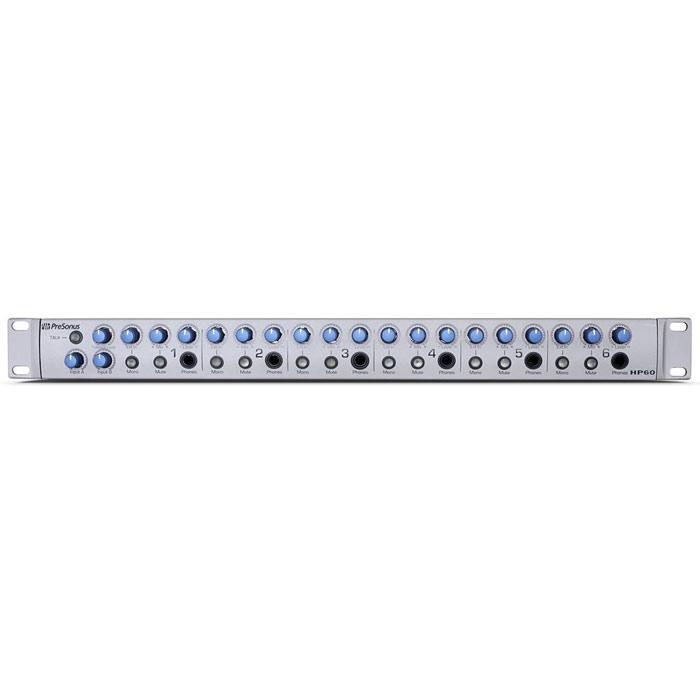

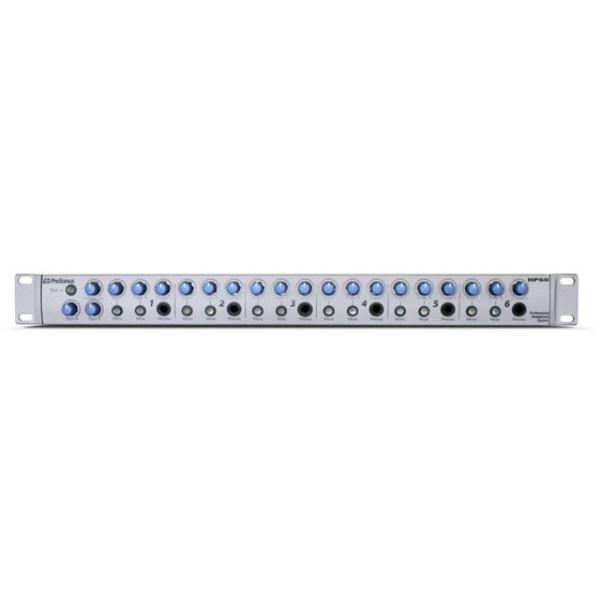

Meters, Controls, and Features

• 2 stereo input channels (A and B)
• Channel controls
• External input level
• Headphone level control for each headphone output
• Mix A/B control (blends signals from input pairs A and B)
• Mono switch for external input
• Mute switch (mutes input pairs A and B)
• Master controls
• Input A level
• Input B level
• Talk button (momentary switch)
• Talkback-mic level

Physical

• 1U 19” rack-mountable, rugged steel chassis
• Internal power supply with standard IEC connector
