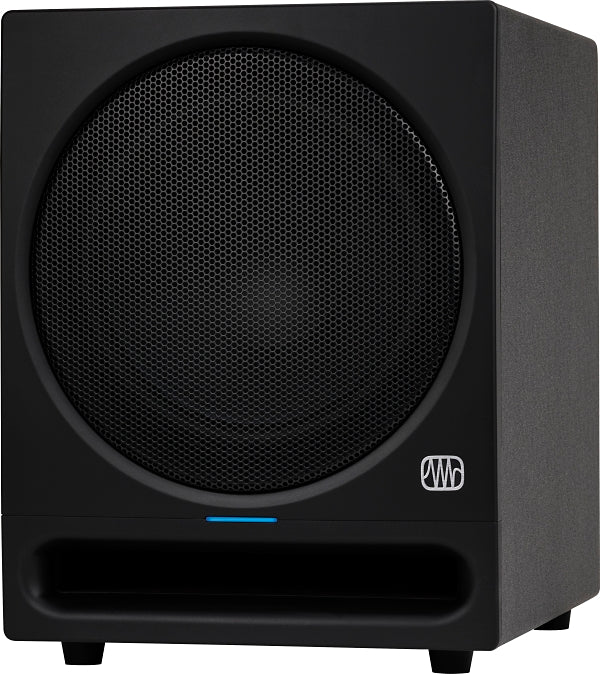

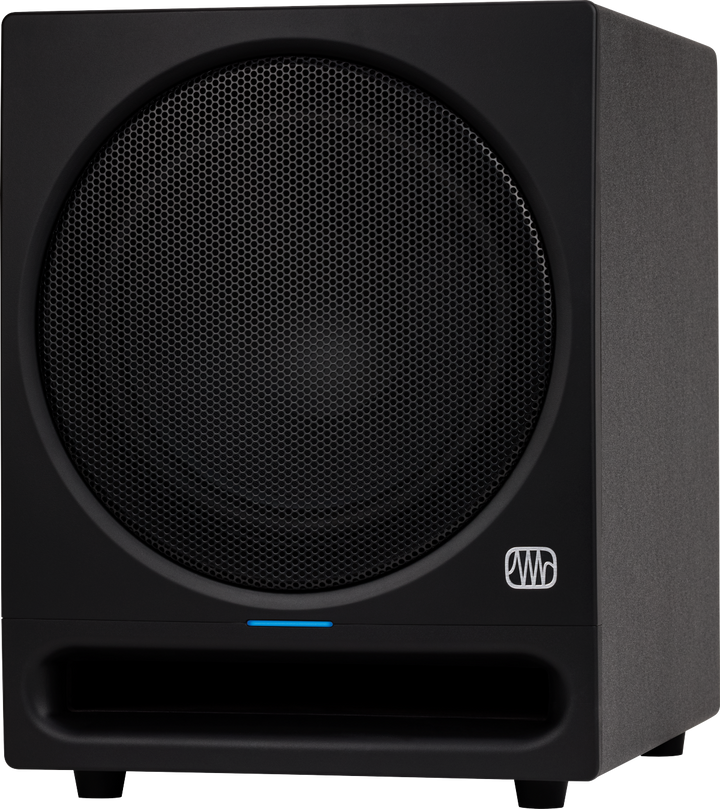

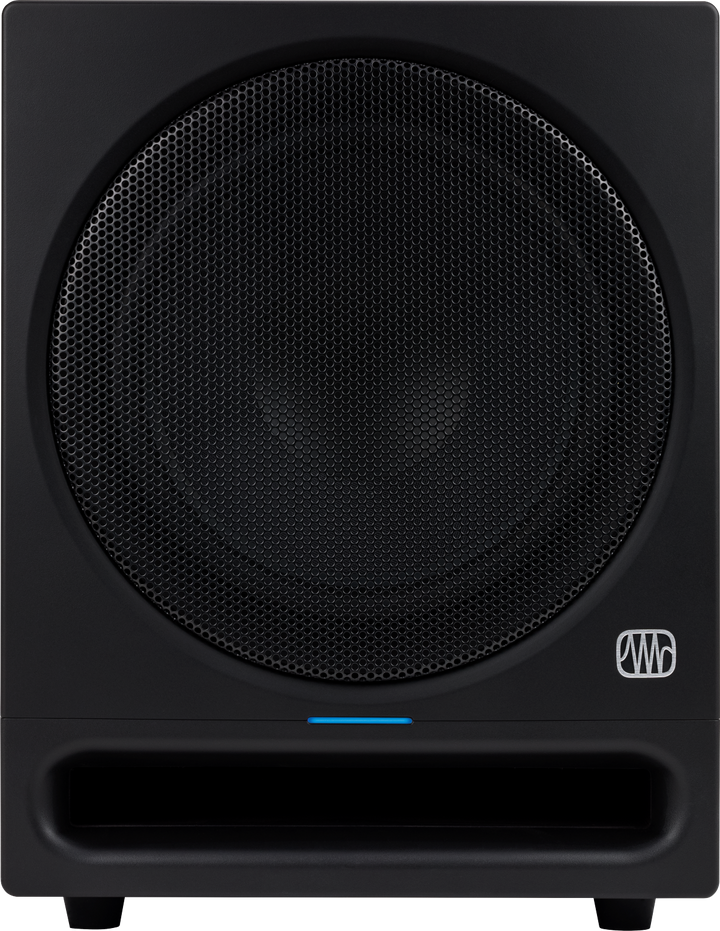

PreSonus Eris Pro Sub 10 Active 10" Studio Subwoofer

The PreSonus Eris Pro Sub 10 is an active 10" studio subwoofer with a front-firing bass-reflex port, powered by 170W of Class AB amplification. Designed for studio-scale monitoring, it provides natural low-end detail and integrates easily with smaller workspaces. An included footswitch allows instant bypass of the subwoofer, highpass filter, and sub output during critical monitoring. Sold individually as a single unit.

Crossover and Control

Variable lowpass and highpass filters provide precise control over the frequency crossover between the subwoofer and your monitors. An input gain control adjustable from -30 dB to +6 dB matches levels to your system. A polarity invert switch and ground-lift switch address phase and noise issues.

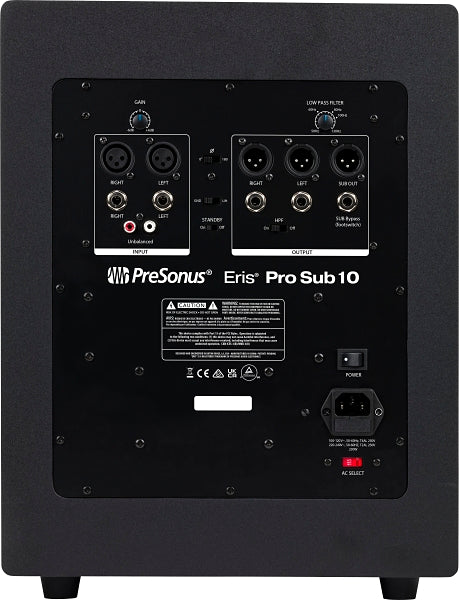

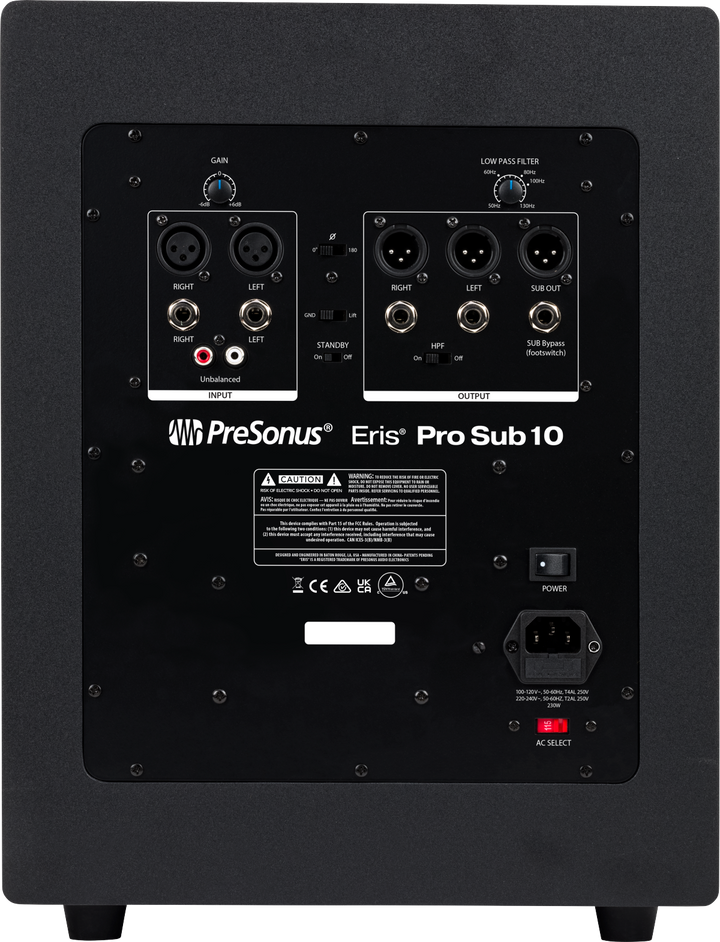

Inputs and Outputs

• Balanced XLR inputs (L/R)
• Balanced 1/4" TRS inputs (L/R)
• Unbalanced RCA inputs (L/R)
• XLR outputs (L/R)
• 1/4" TRS outputs (L/R)
• Secondary XLR subwoofer output

Specifications

• LF Driver: 10" front-firing, bass-reflex port
• Amplification: 170W Class AB
• Lowpass filter: Variable
• Highpass filter: Variable
• Input gain: -30 dB to +6 dB
• Polarity invert: Yes
• Ground lift: Yes
• Footswitch: Included (bypasses sub, highpass, and sub out)

In the Box

• PreSonus Eris Pro Sub 10
• Footswitch
• Power cable
• Quick Start Guide
