Description

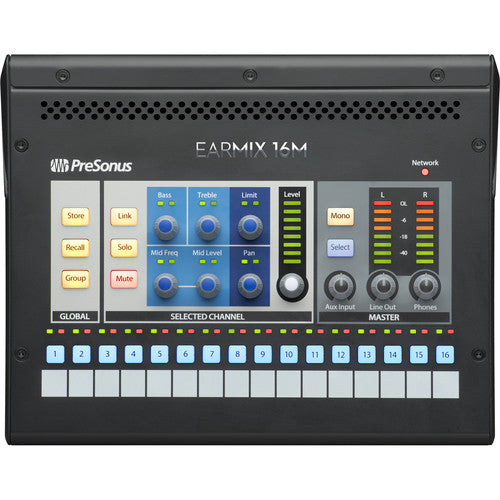

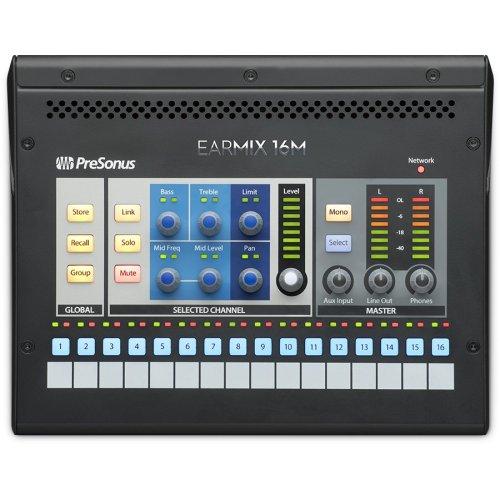

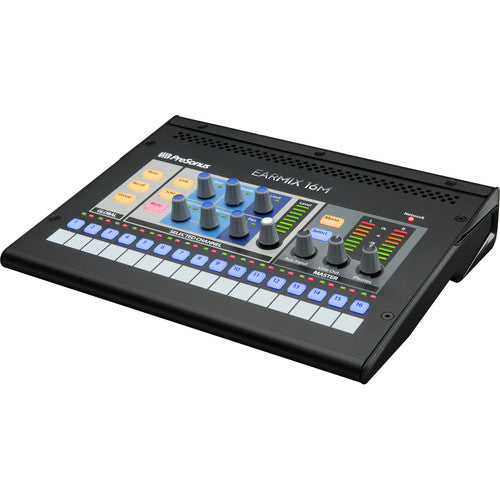

The PreSonus EarMix 16M is a compact 16x2 AVB-networked personal monitor mixer that gives each performer independent control over their headphone mix. Designed for use with PreSonus StudioLive Series III mixers and other AVB-compatible systems, it receives up to 16 mono channels over AVB Ethernet and provides a loud, clear headphone amp capable of driving low-impedance in-ear monitors.
Mixing and Processing
Each of the 16 mono channels has 3-band EQ with sweepable mid frequency, a limiter, and solo/mute controls. The main mix bus also features 3-band EQ and limiting. Up to 16 presets can be stored and recalled for quick setup at each show.

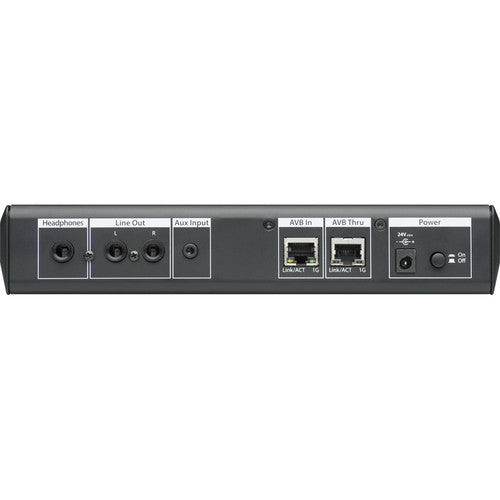

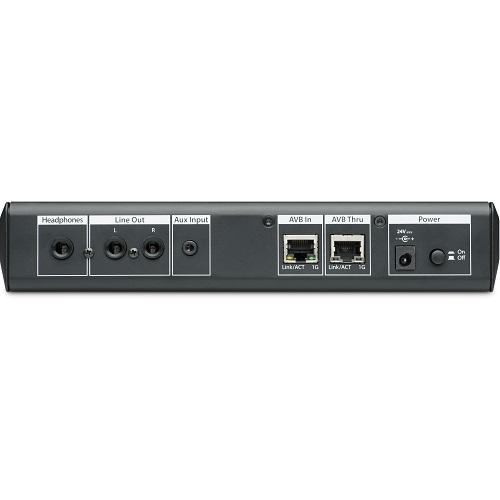

Connectivity
Dual Ethernet ports provide AVB audio input with daisy-chain capability. A 1/8" stereo aux input allows local audio sources to be added to the mix. Two balanced 1/4" TRS line outputs are available for feeding additional amplifiers or recording devices.
Specifications
- AVB channels: 16 mono input via dual Ethernet ports
- Sample rate: 24-bit, 48 kHz
- DAC dynamic range: 115 dB (A-weighted, 48 kHz)
- Headphone output: 1/4" TRS stereo, 150 mW/ch at 60 ohms
- Headphone frequency response: 20 Hz to 20 kHz (+/-0.05 dB)
- Headphone THD+N: 0.01% (1 kHz, max gain)
- Line outputs: 2 balanced 1/4" TRS, +18 dBu max, 100 ohm impedance
- Aux input: 1/8" stereo
- EQ: 3-band with sweepable mid on all channels and main mix
- Presets: 16 store/recall slots
- Power: 24V external supply or PoE (802.3at Type 1)
- Width: 9.4" (239 mm)
- Depth: 7.6" (193 mm)
- Height: 1.8" (46 mm)
- Weight: 1.2 lb (0.5 kg)
In the Box
- EarMix 16M personal monitor mixer
- 24V external power supply
- Quick Start Guide
