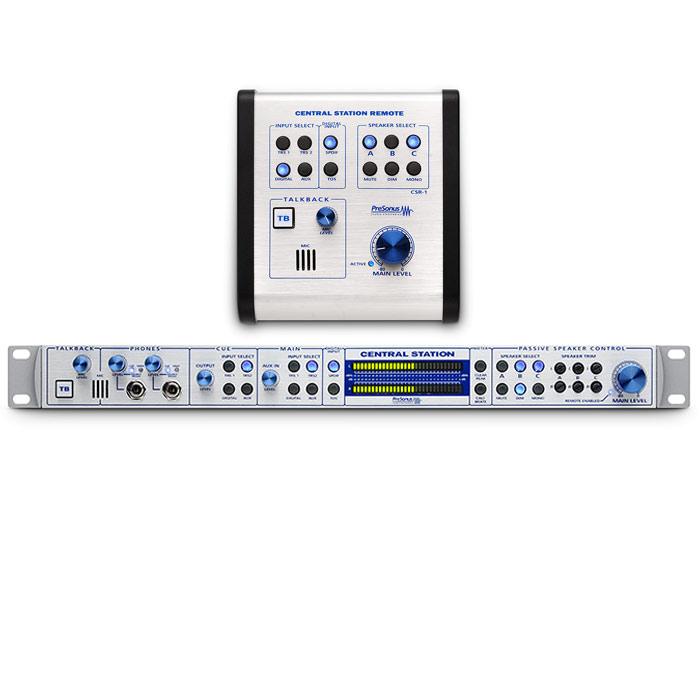

Central Station Plus Studio Control Center Interface With Remote

With Central Station, you can easily switch between three sets of stereo, analog input sources. Two stereo S/PDIF digital sources connect via one coax and one Toslink optical port. You can audition these sources with up to three pairs of speakers, with individual trim pots for each speaker—recessed to avoid accidents.

You also get a pair of line-level main outputs, a pair of line-level cue outputs, and two screaming-loud headphone amplifiers with individual level controls. And because Central Station is a 1U rack-mount device, with only one multi-conductor cable running to the remote control on your desktop, all of the cabling is in the back of your rack, where it belongs.

3 sets of stereo analog inputs let you switch between sources

2 sets of S/PDIF digital inputs (coax and optical)

3 sets of stereo speaker outputs with:

• Speaker Select switches
• Recessed trim pot for each speaker output

Cue section with:

• Input-select switch
• Output-level control

Main section with:

• Input-select switch
• Aux-input level control
• Output-level control
• Mute, Dim (-20 dB), and Mono switches

2 headphone outputs, each with:Passive audio path: no op amps or IC's in main audio path

• Dual-function volume controls
• Main-Cue input switches

Onboard talkback microphone

Talkback microphone input w/level control (feeds headphone and cue outputs)

Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with:Footswitch jack for hands-free talkback operation

• Clear Peak switch
• Calibrate to match DAW or other audio device

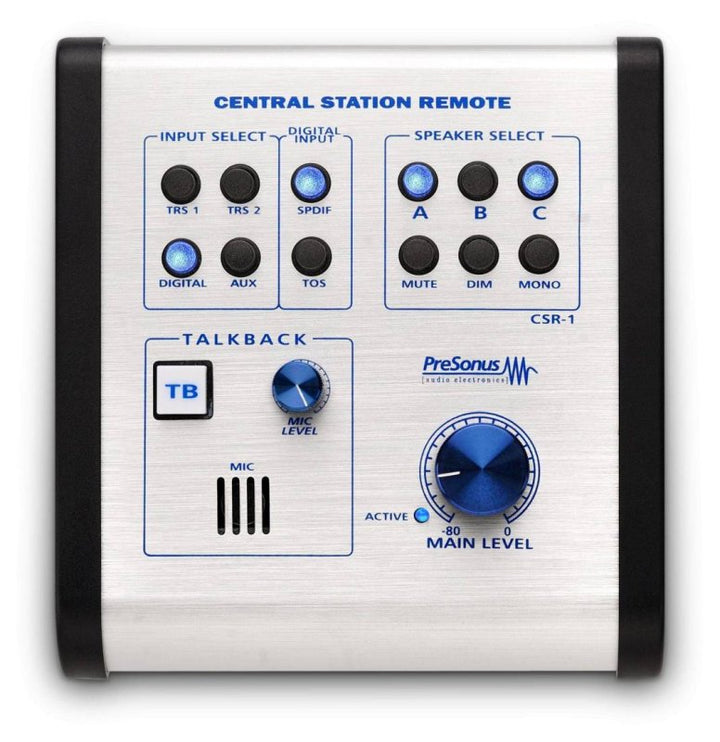

Included Control Station Remote (CSR-1) provides remote control of:

• Main Volume
• Input select
• Output select
• Talkback
• Mute
• Dim
• Mono

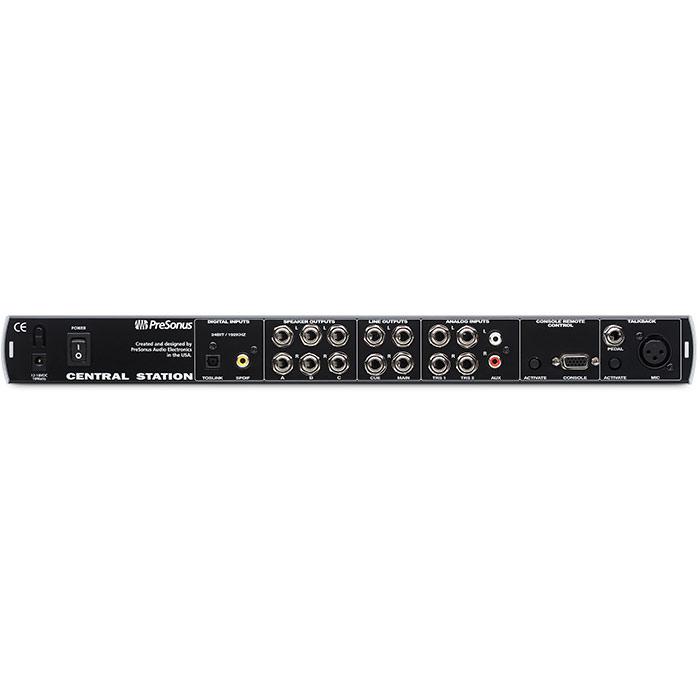

Input/Output

• 4 balanced ¼" analog line inputs (2 L/R pairs)
• 2 unbalanced RCA analog line inputs (L/R pair)
• 1 stereo S/PDIF optical (TOSLINK) digital input
• 1 stereo S/PDIF coax (RCA) digital input
• 1 balanced XLR talkback-microphone input
• 6 balanced ¼", line-level speaker outputs (3 L/R pairs) w/separate, passive volume controls
• 2 balanced ¼", line-level Main outputs (1 L/R pair) with source selection
• 2 balanced ¼", line-level Cue outputs (1 L/R pair) with volume control and source selection
• 2 stereo ¼" headphone jacks w/dual-function volume controls and Main-Cue input switches
• 1 DB15 port for optional Control Station Remote (CSR-1)

Digitalia

• S/PDIF coax and optical digital inputs
• High-definition, 24-bit, 192 kHz D/A converters (115 dBu dynamic range)

Physical

• 1U 19" rack-mountable, rugged steel chassis
• External AC power supply

Remote-control all functions of Central Station, including:Onboard electret condenser talkback microphone

• Input switching
• Speaker selection
• Main volume
• Talkback system

Talk button (momentary switch) for talkback system

Active light shows when CSR-1 is controlling main volume

Connects with a proprietary DB15 cable (included)

Keep desktop neat and clutter-free
