Description

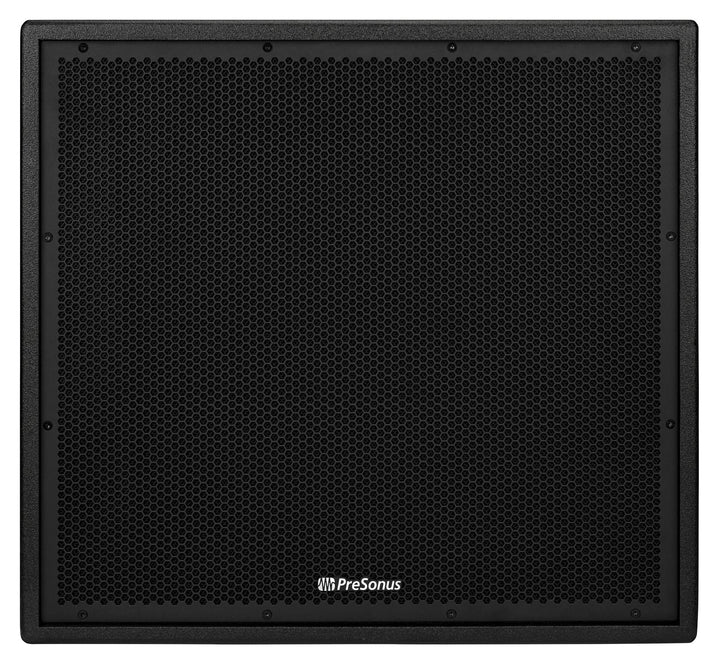

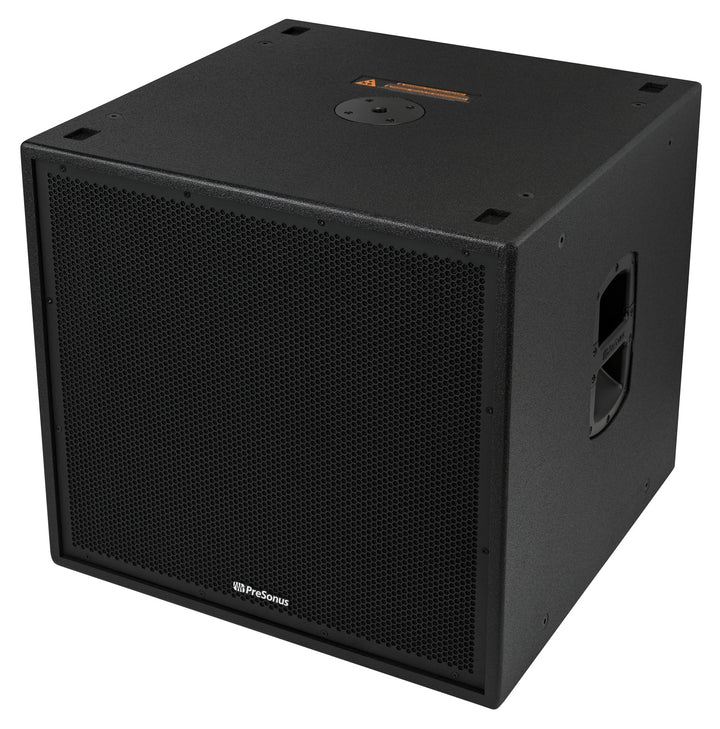

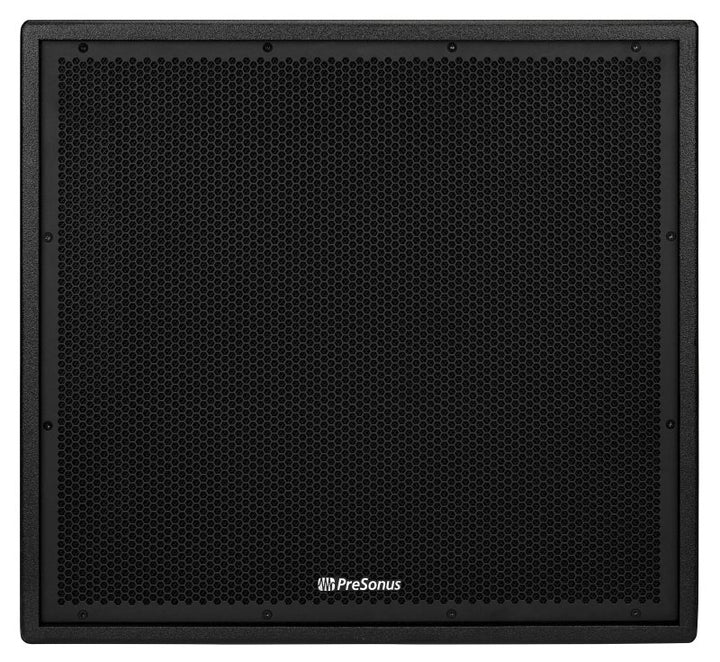

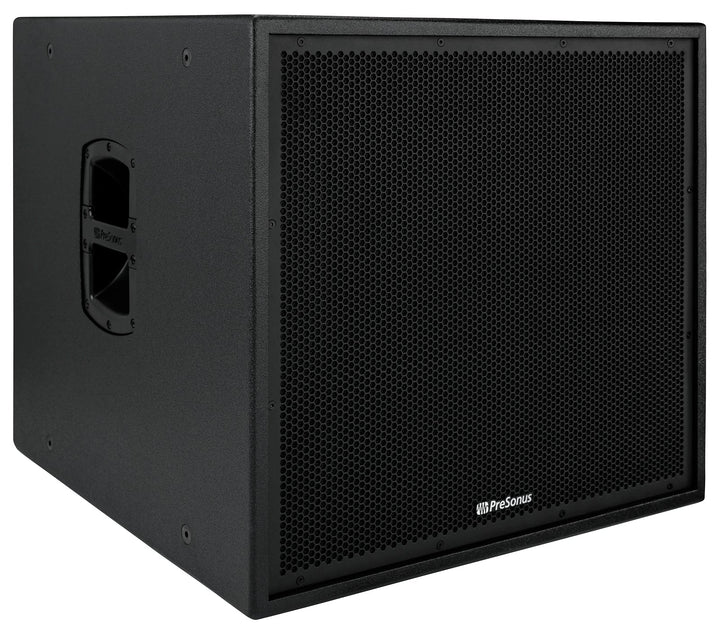

The PreSonus CDL Sub18 is an active 18" subwoofer driven by an integrated 2,000W Class D power amplifier. Its 18" LF transducer with a 4" voice coil provides 7mm of driver travel before over-excursion, delivering tight, coherent low-end that complements any full-range loudspeaker. A unique ported design maximizes efficiency, and the compact form factor suits both installed and mobile sound applications.
System Integration

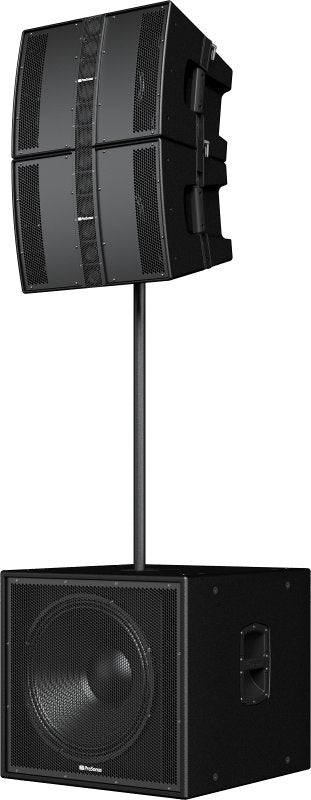

An integrated M20 threaded pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, two CDL Sub18 units can be stacked together. Sound-enhancing presets and a variable lowpass filter adjust the transition between the subwoofer and full-range loudspeakers.
Rigging and Mounting
Integrated M10 fly points allow suspended installation. Locking powerCON AC connectors (in and out) simplify power distribution in multi-cabinet systems.

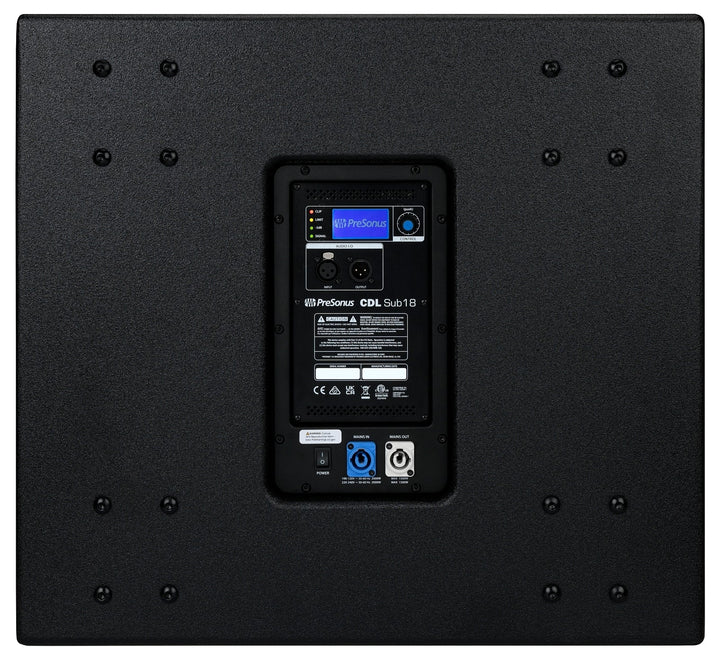

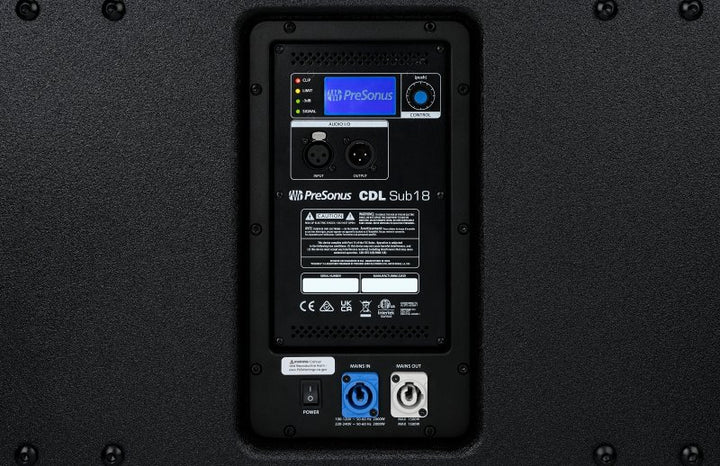

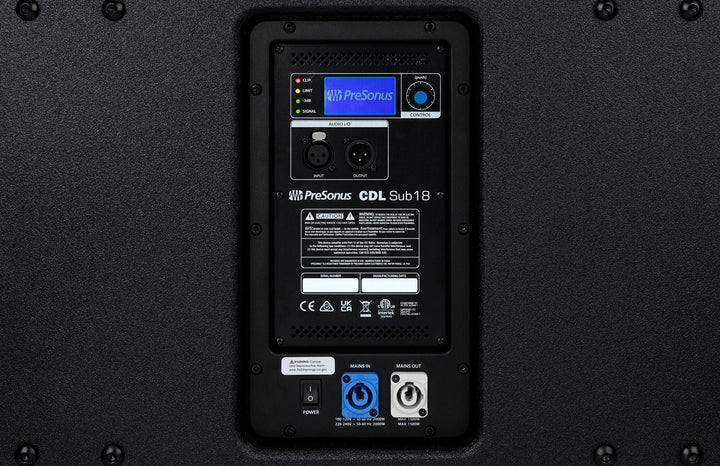

Inputs and Outputs
- Balanced XLR input
- Balanced XLR direct output
- Locking powerCON AC in and out
Specifications
- LF Driver: 18" with 4" voice coil
- Amplification: 2,000W peak (1,000W RMS) Class D
- Max SPL: 135 dB peak
- Frequency response: 36 Hz - 144 Hz
- Lowpass filter: Variable
- Pole mount: Integrated M20 threaded
- Rigging: Integrated M10 fly points
- Enclosure: 15mm eucalyptus plywood, Chemline Polyurea finish, tour-grade steel grille
In the Box
- PreSonus CDL Sub18
- Quick Start Guide
