Description

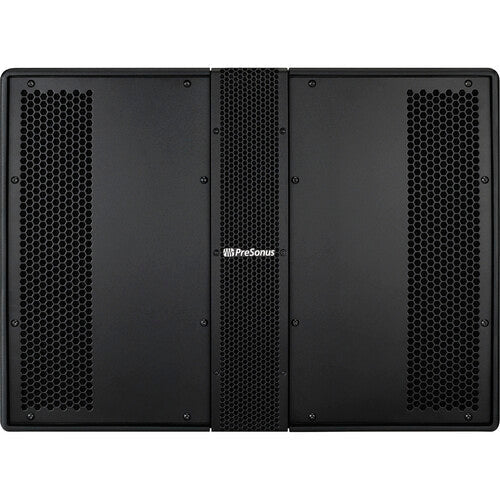

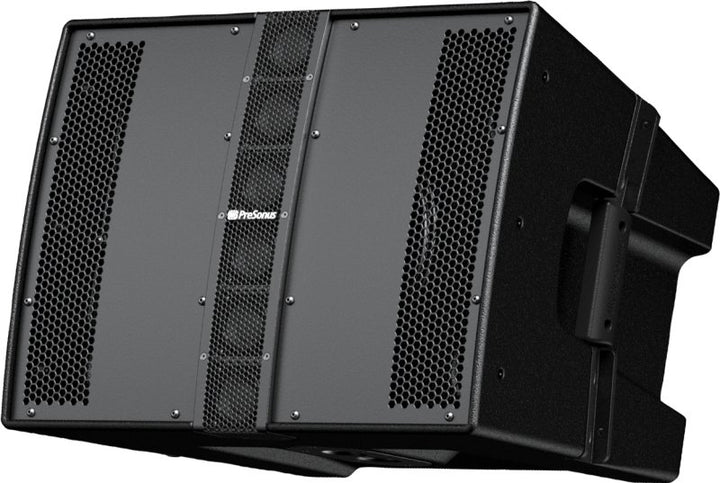

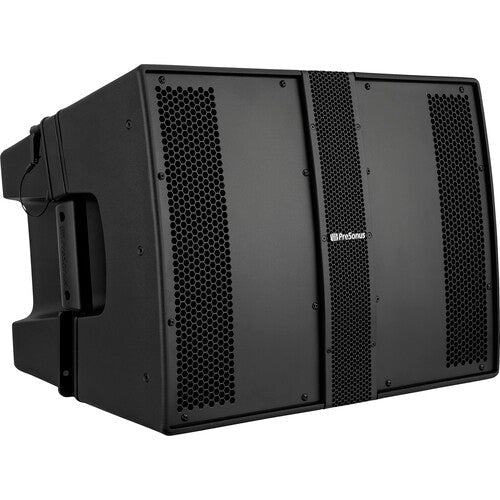

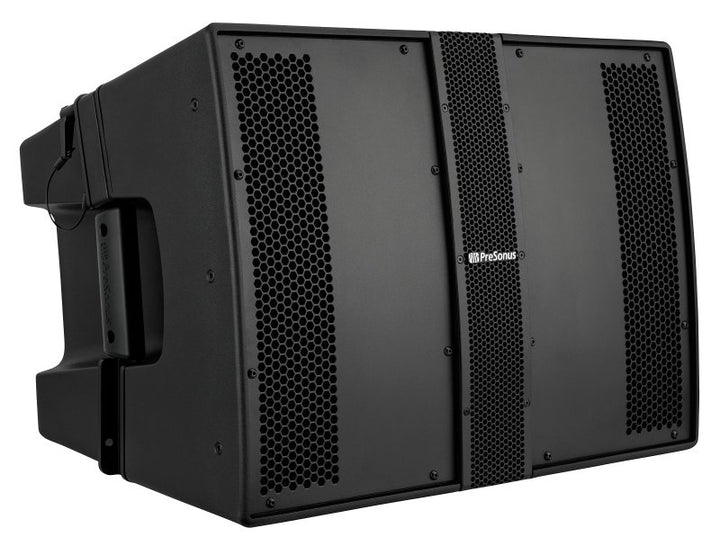

The PreSonus CDL10P is a 10" constant-directivity loudspeaker that combines the best attributes of point source and line array technologies into a single, scalable platform. A continuous-directivity constant curve array with six 2" cone drivers disperses sound 120 degrees horizontally, while a 10" long-throw LF transducer with a 2.5" voice coil handles the lows. An integrated 500W x 500W Class D amplifier provides high SPL output with fast transient response.
Constant Directivity Design
The hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis. The 15-degree vertical directivity can be extended from 30 degrees up to 90 degrees by arraying additional CDL10P units. A low 420 Hz crossover point minimizes comb filtering and enhances intelligibility.
Rigging and Mounting

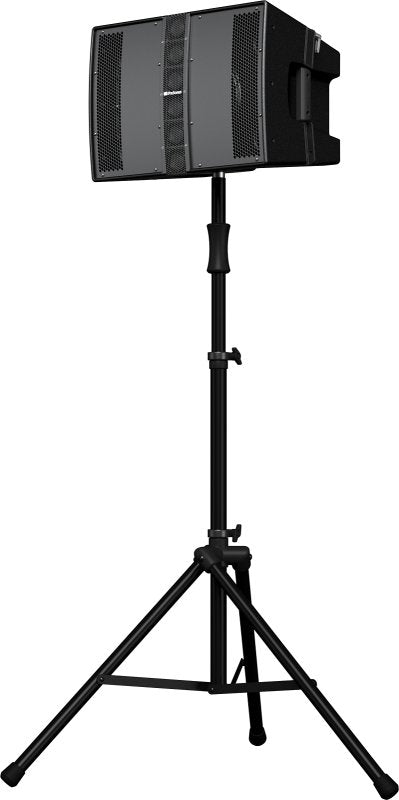

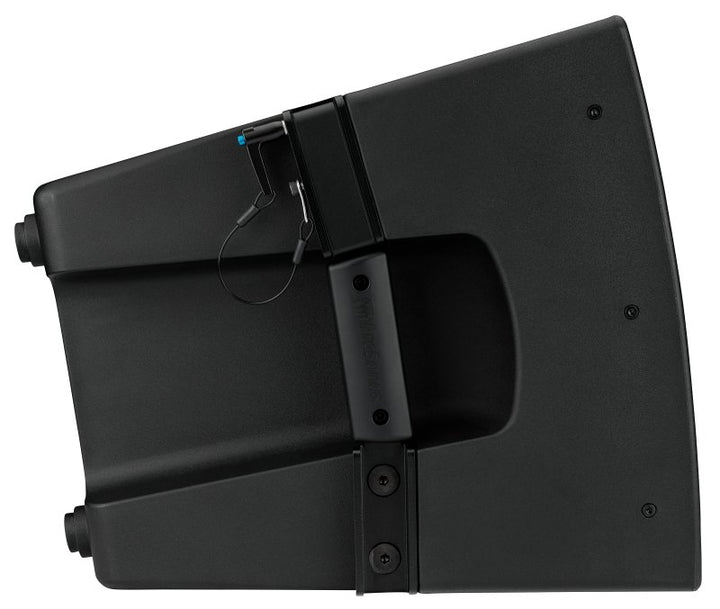

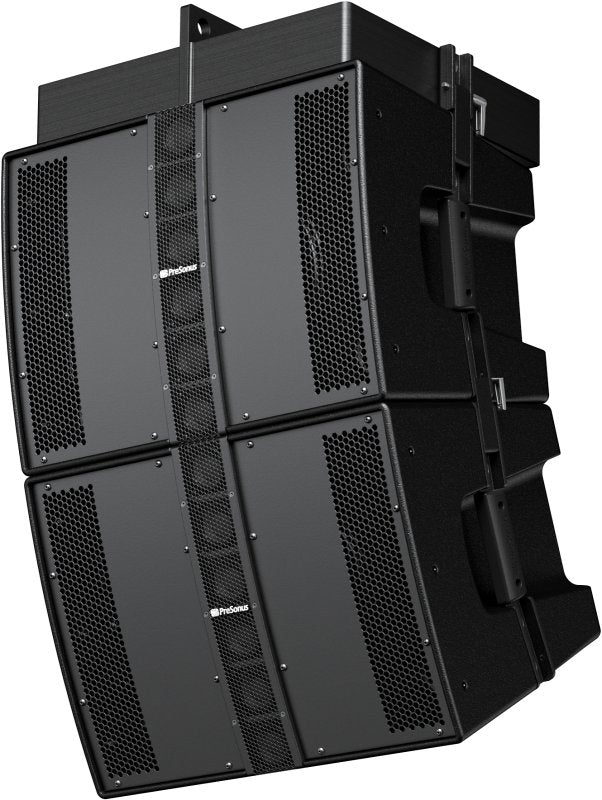

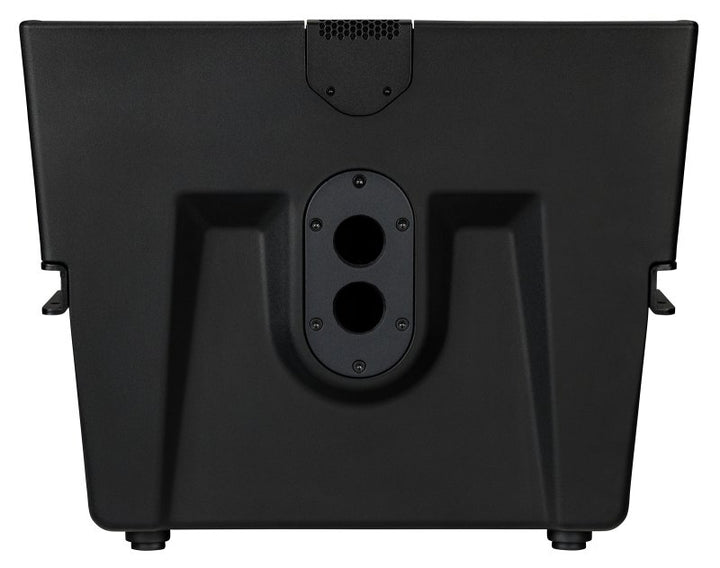

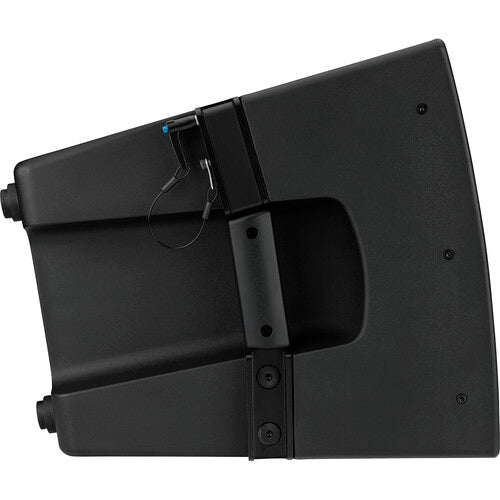

Integrated pin-loaded rigging hardware supports vertical arrays of up to six CDL10P enclosures. A dual-angle 35mm pole socket with 7.5-degree downward tilt accommodates one or two enclosures on a tripod or atop a PreSonus CDL Sub18, CDL18s, or ULT18 subwoofer.

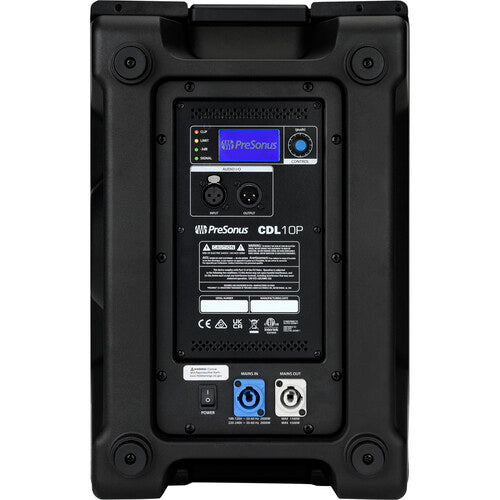

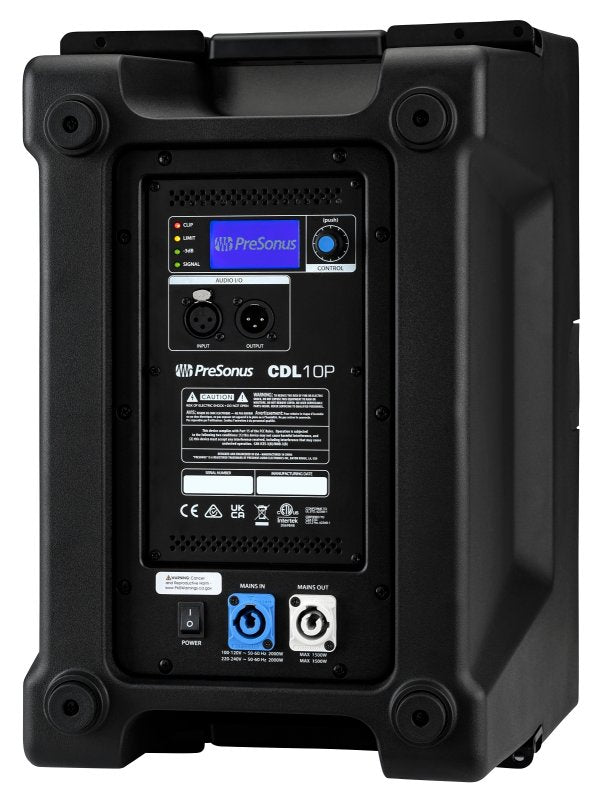

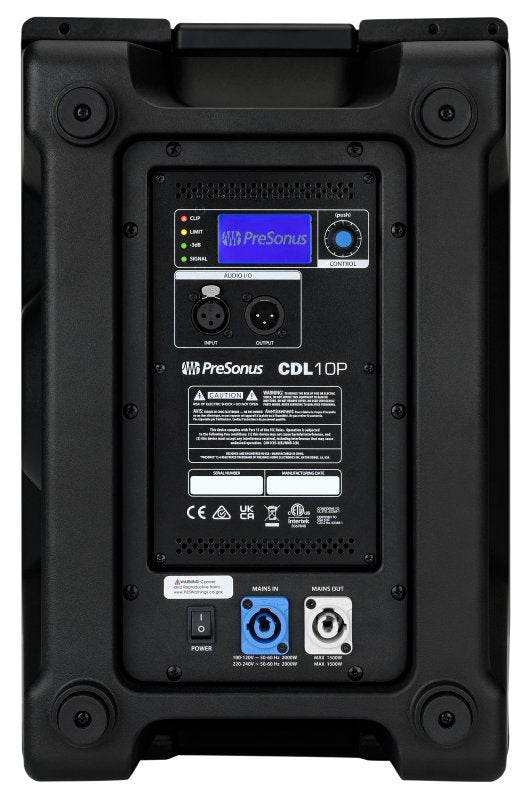

DSP and Monitoring
Onboard DSP presets facilitate arrayed configurations including array mode (1-6 boxes) and sub mode (Off, CDL18s, ULT18, or AIR18s). A 90 Hz high-pass filter is available. Signal, -3 dB, limiter protection, and clip monitoring LEDs indicate system status.
Specifications
- HF Array: Six 2" cone drivers in constant curve array
- LF Driver: 10" long-throw with 2.5" voice coil
- Amplification: 500W + 500W Class D
- Horizontal dispersion: 120 degrees
- Vertical directivity: 15 degrees per box (extendable to 90 degrees)
- Crossover: 420 Hz
- Pole mount: 35mm socket with 7.5-degree downward tilt
- Max array size: 6 enclosures
- Enclosure: Lightweight plastic with 1.2mm tour-grade steel grille
In the Box
- PreSonus CDL10P
- Quick Start Guide
