AIR-XD-SUB-18

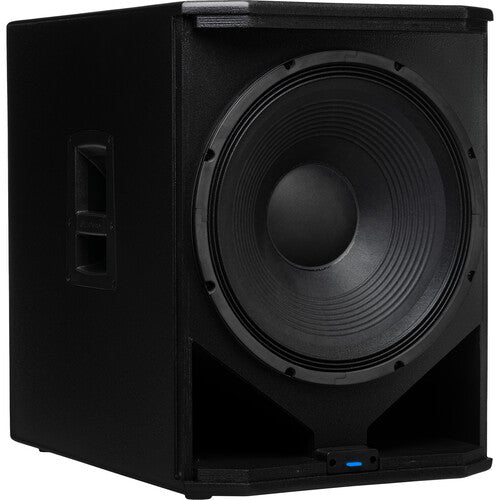

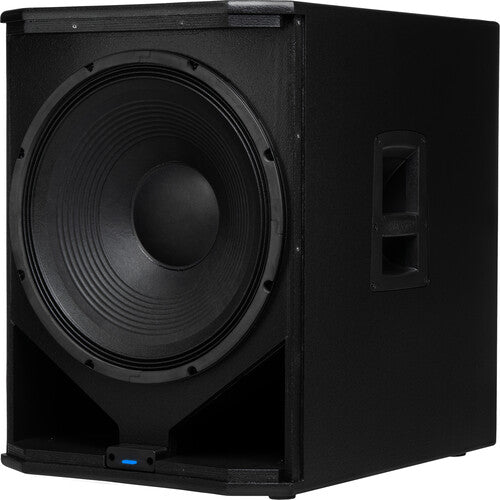

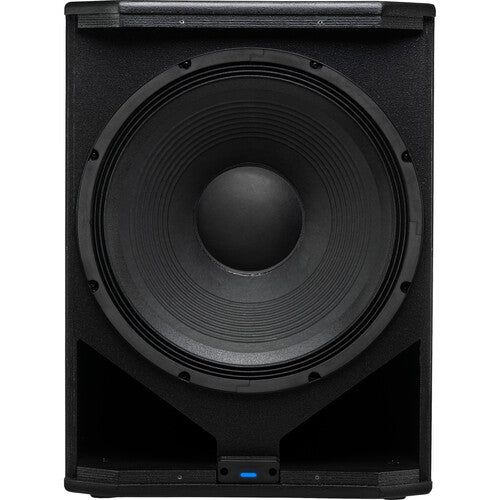

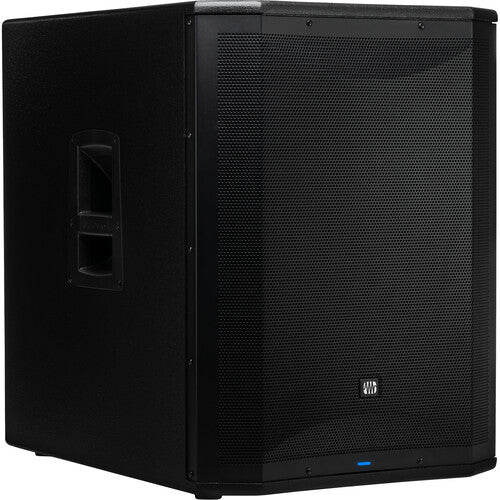

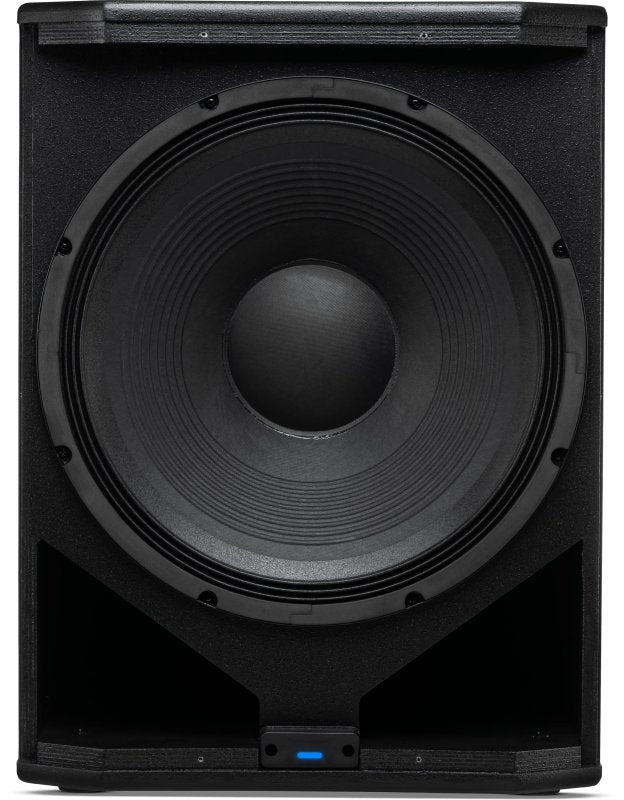

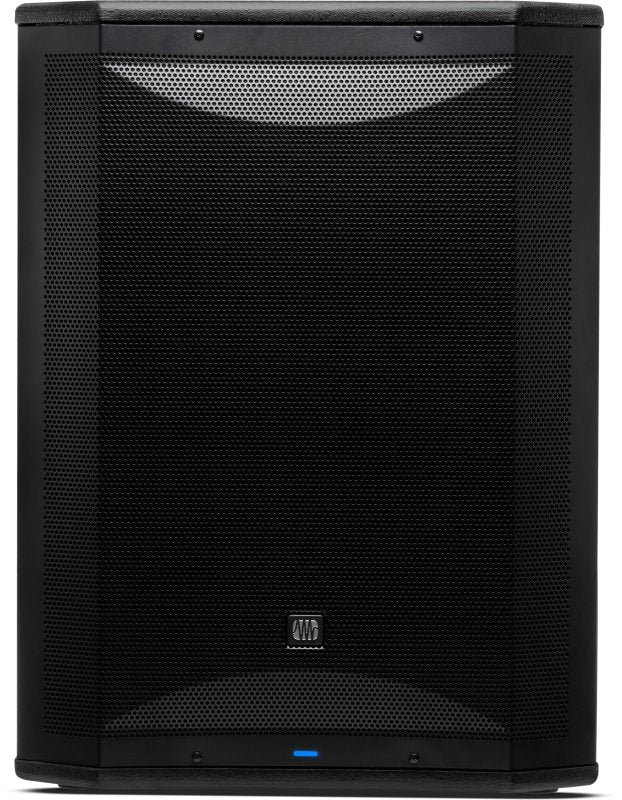

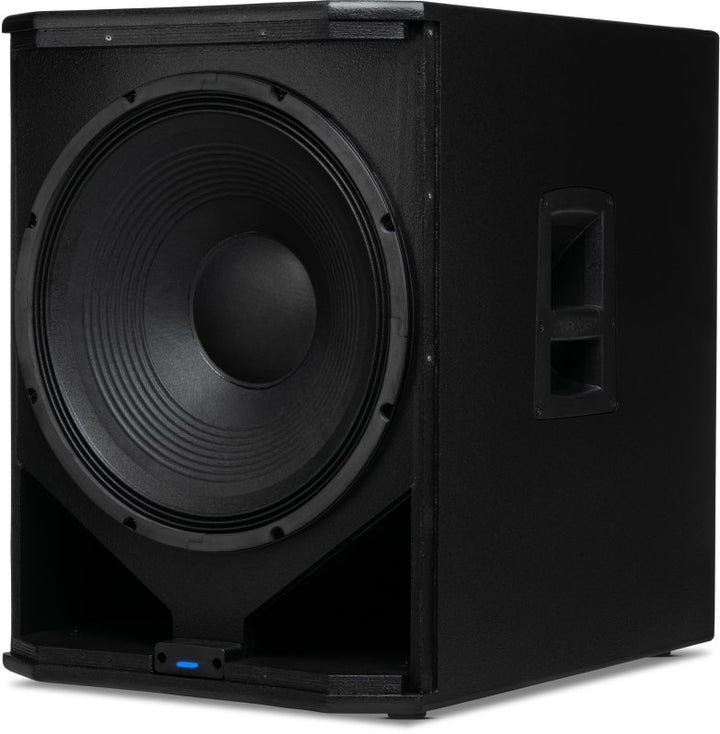

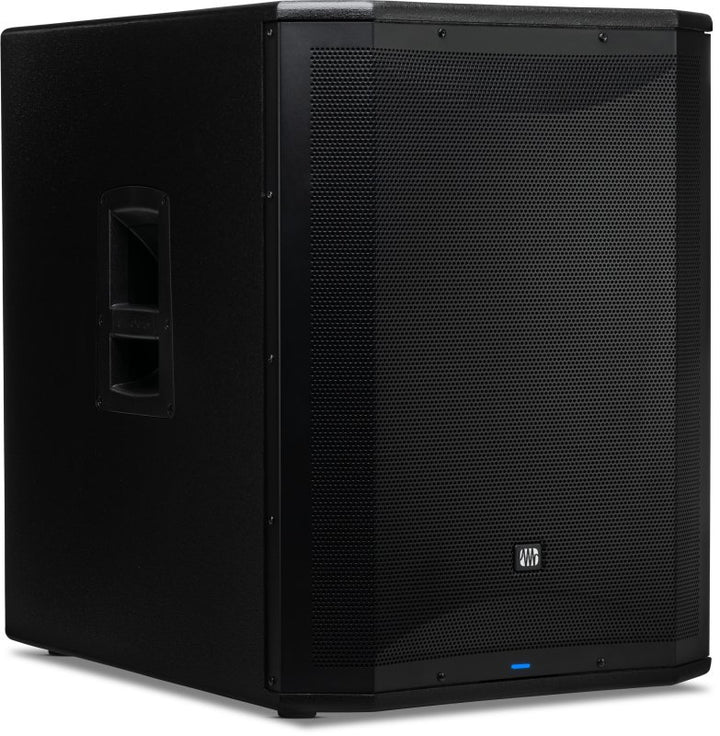

Equally suited for mobile systems and fixed installations, the PreSonus AIR XD Sub 18 active subwoofer delivers powerful, accurate low-end performance and integrates seamlessly with any full-range PA—especially the AIR XD-series. Its 18-inch woofer with a 3-inch voice coil is powered by 2000W of Class D amplification, providing deep, punchy bass down to 33 Hz and output levels up to 130 dB.

Advanced onboard DSP makes setup and tuning fast and easy. A variable lowpass filter (60–150 Hz) lets you fine-tune crossover points for smooth transitions to your mains. Presets for AIR XD full-range loudspeakers ensure plug-and-play integration, while onboard alignment delay and array presets allow quick configuration of ground-stacked or end-fire subwoofer arrays. A full-color display offers intuitive navigation, precise metering, and easy control of all settings.

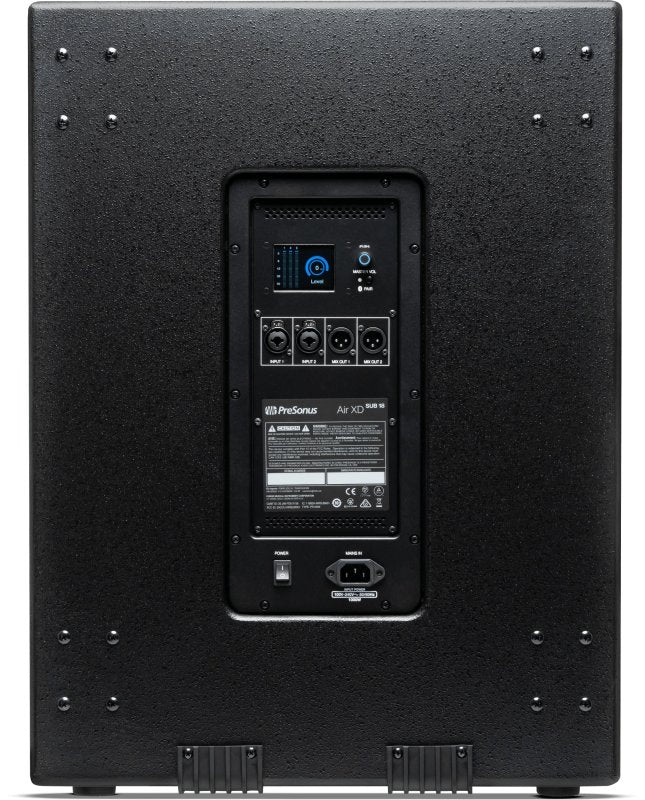

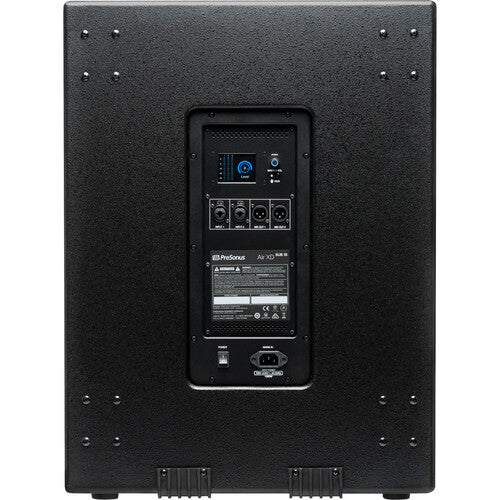

The AIR XD Sub 18 includes two XLR/¼" combo inputs with direct outputs for flexible signal routing. Built-in Bluetooth with TWS Bridge Mode enables reliable wireless audio streaming and stereo pairing with a second speaker—ideal for mobile events, parties, and corporate setups.

Despite its size and output, the AIR XD Sub 18 is compact, portable, and rugged. Its 15mm tour-grade wood enclosure includes ergonomic side handles, integrated caster mounts, and ground-stacking provisions—making it easy to transport and deploy for both touring and installed sound environments.

Features:

• High-performance 18-inch woofer with 3-inch voice coil for deep, defined bass
• 2000W Class D power delivers up to 130 dB of clean, powerful low-end
• Extended 33 Hz–131 Hz frequency response for extended sub-bass coverage
• Dual XLR/¼" combo inputs with direct outputs for flexible signal routing
• Integrated Bluetooth with TWS Bridge Mode for easy stereo wireless playback
• Adjustable lowpass filter (60–150 Hz) ensures smooth crossover to mains
• Presets for ground-stacked and end-fire arrays enable fast cardioid configurations
• 18-inch custom woofer with 3-inch voice coil
• 2000W Class D power (dynamic)
• Frequency Response: 47 Hz to 103 Hz (-3 dB), 33 Hz to 131 Hz (-10 dB)
• 130 dB SPL (max)
• 2 XLR / ¼” combo inputs with direct outputs
• Built-in Bluetooth with TWS Bridge Mode for wireless stereo pairing
• Variable lowpass filter lets you dial in upper frequency limit
• Alignment delay up to 12m
• Locate controls adjust performance for arrayed and non-arrayed applications:
  • Normal – non-arrayed applications
  • Cardioid—create a ground-stacked cardioid subwoofer array (using two of the same model subwoofer)
  • Endfire – create an end-fire cardioid subwoofer array (using two of the same model subwoofer)
• “Mo’ Bass” tuning for extended low-end performance
• Polarity invert

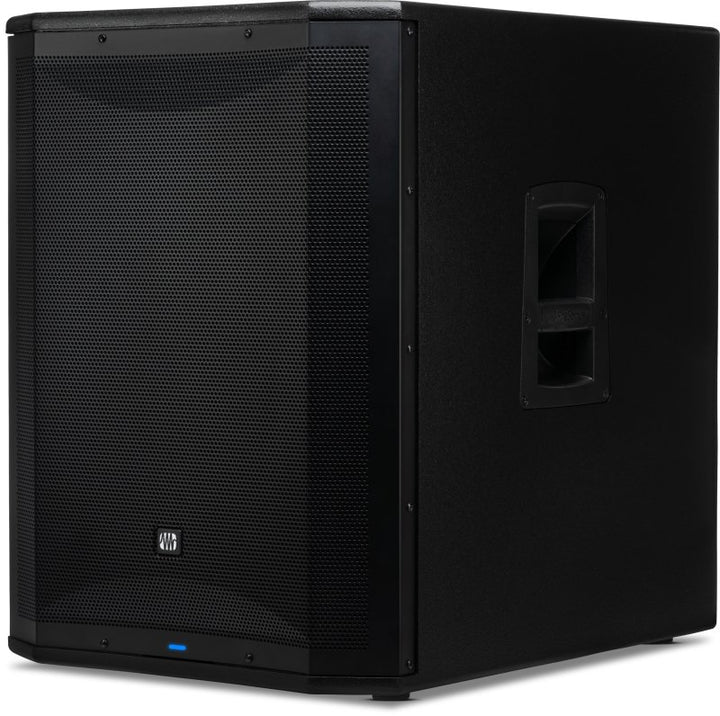

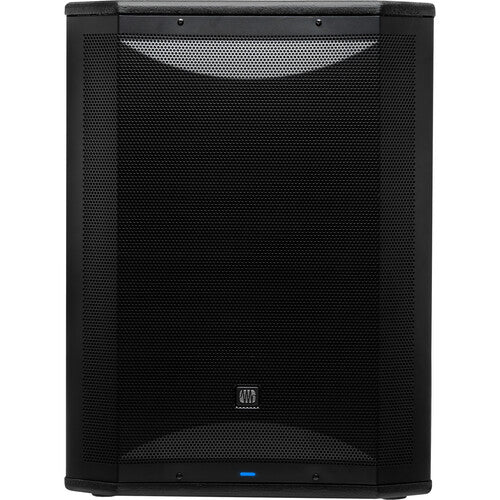

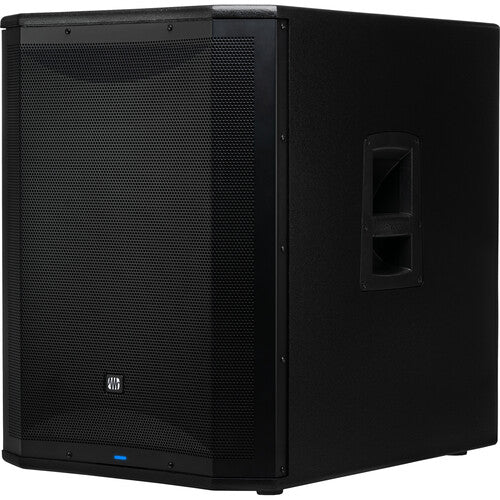

• Rugged, texture-painted wood enclosures and tour-grade 1.5mm steel grille
• Comfortable ergonomic handles, ground-stacking provisions, and castor provisions (castor kit included)
