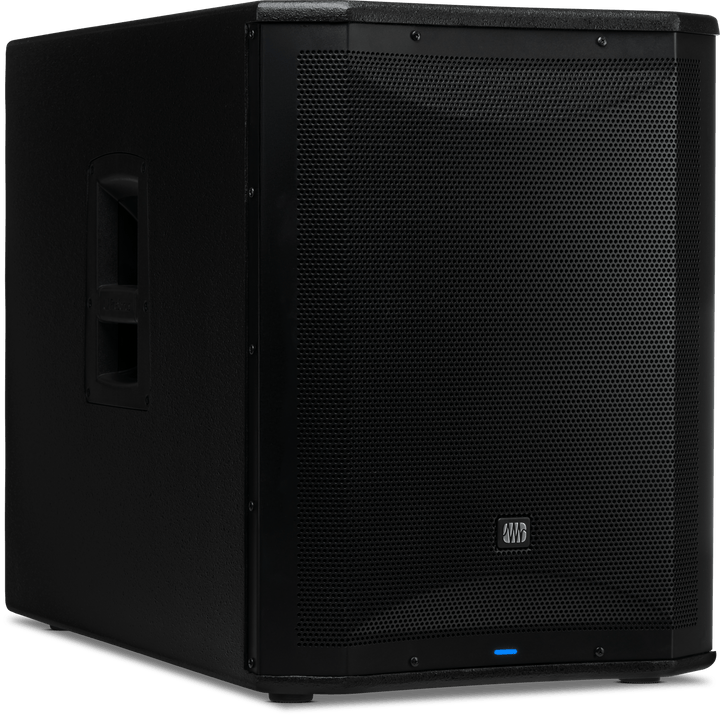

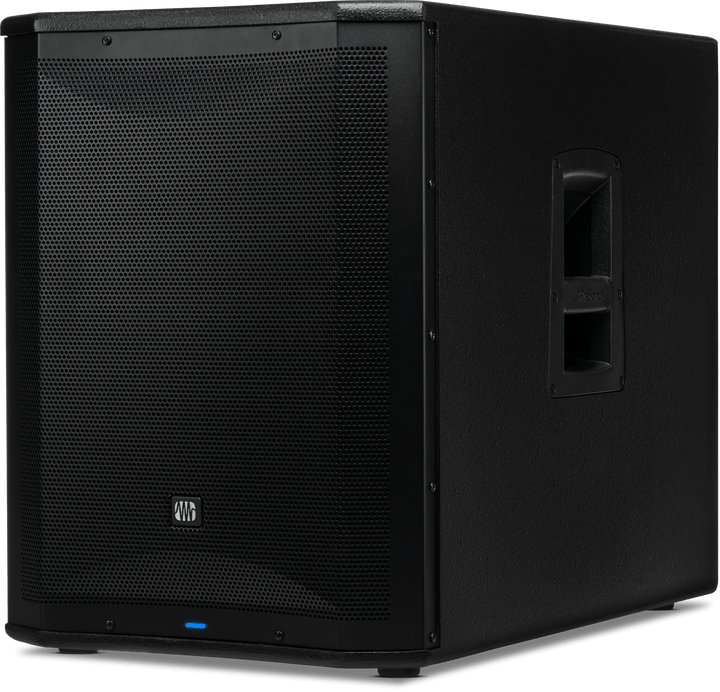

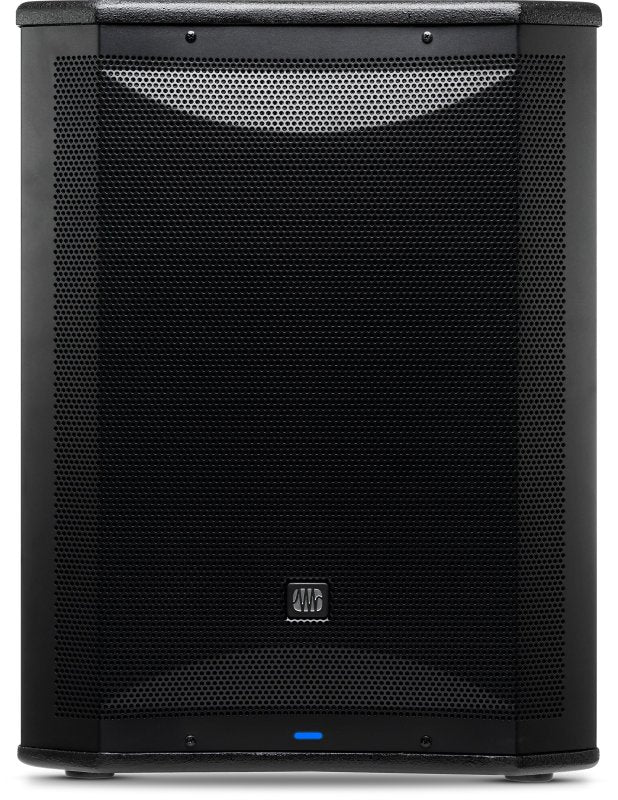

AIR XD SUB 15 Active Extended Definition Subwoofer - 15"

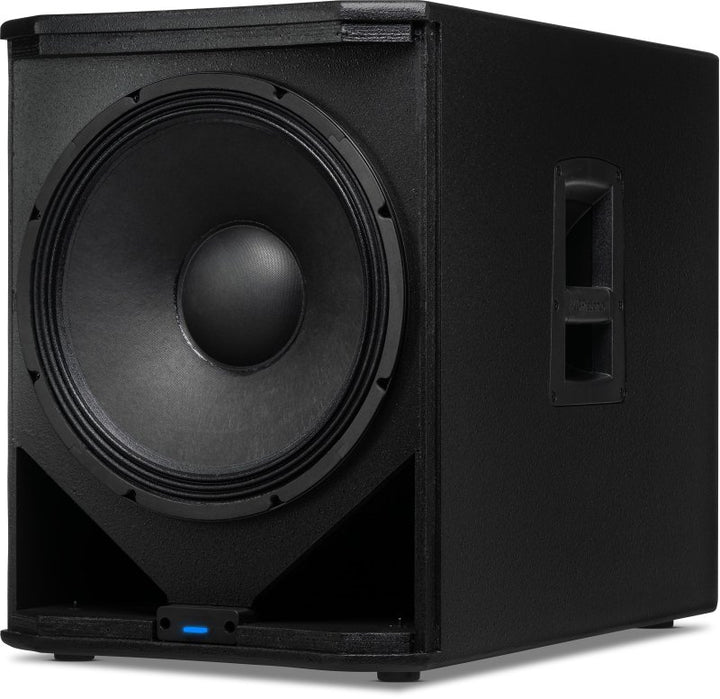

The PreSonus AIR XD Sub 15 is a high-performance active subwoofer designed for professional use, delivering deep, extended low-end and high SPL for any application. Its custom 15-inch low-frequency driver with enlarged 3” voice coil provides efficient power handling and tight, dynamic bass with minimal distortion, while advanced tuning options—including variable lowpass filtering, alignment delay, and cardioid/end-fire array presets—allow precise control of low-frequency performance in any setup.

Powered by 2,000W of efficient Class D amplification, the AIR XD Sub 15 delivers powerful, clean output with consistent headroom for live sound, installs, and mobile applications. A full-color 2.6” LCD provides intuitive metering, system control, and rapid access to DSP presets, EQ, and tuning modes.

Built-in Bluetooth with TWS Bridge Mode enables wireless stereo pairing with AIR XD full-range speakers, while flexible routing and direct outputs allow seamless integration into FOH or monitoring setups. Rugged wood enclosures with ergonomic handles, ground-stacking provisions, and built-in caster mounting make the AIR XD Sub 15 as portable as it is powerful, whether flown, stacked, or installed permanently.

Features

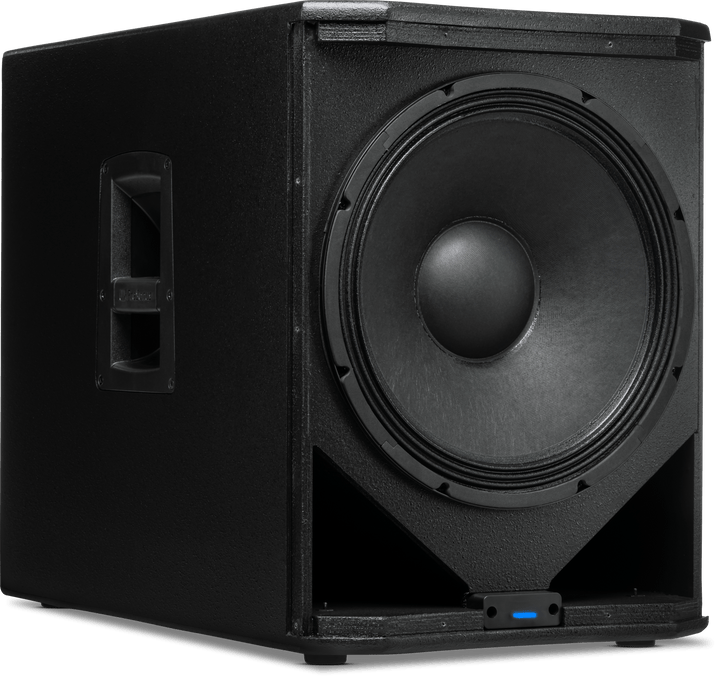

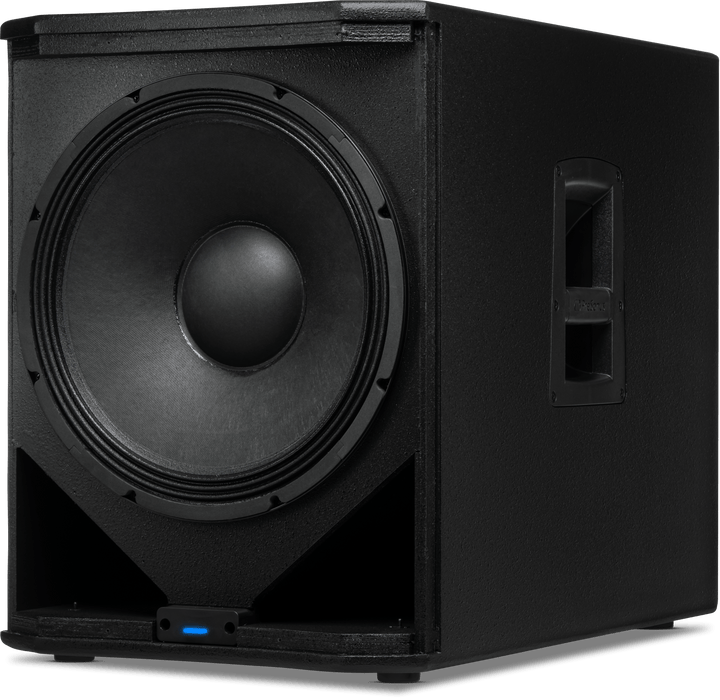

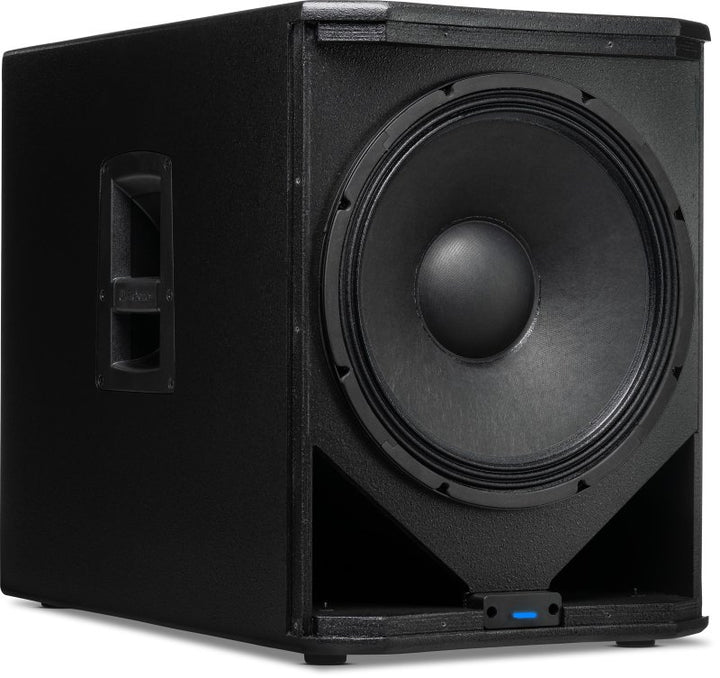

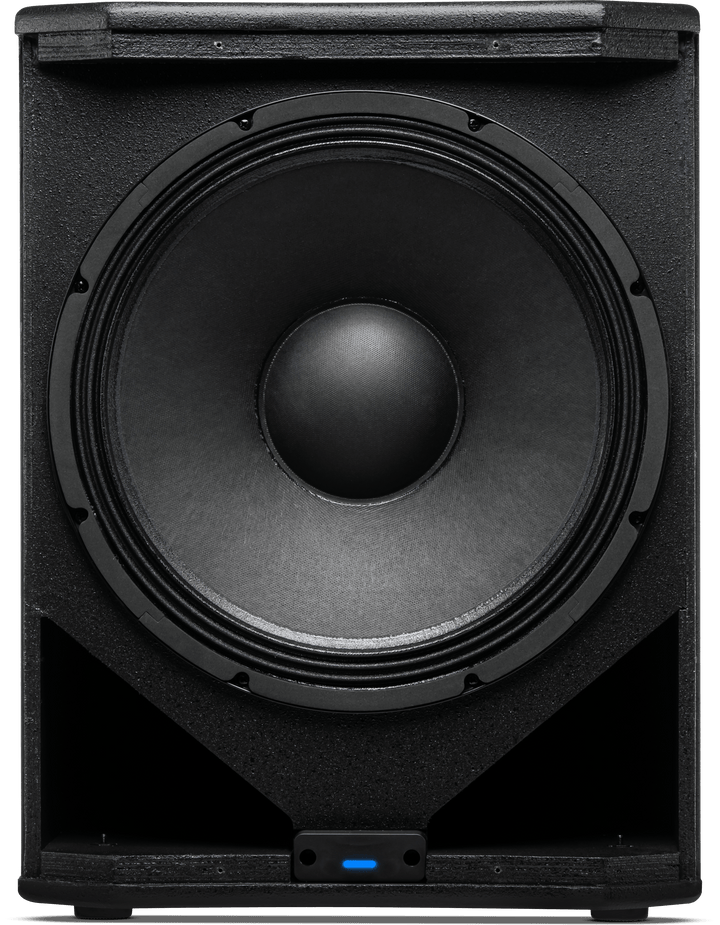

• Custom 15-inch low-frequency driver with enlarged 3” voice coil for deep, dynamic bass and minimal distortion
• 2,000W Class D amplifier delivers powerful, efficient low-end performance
• Frequency Response: 39 Hz to 95 Hz (-3 dB), 32 Hz to 131Hz (-10 dB)
• 128 dB SPL (max)
• Advanced DSP with variable lowpass filter, alignment delay, and cardioid/end-fire array presets
• Integrated “Mo’ Bass” enhancement for added low-frequency punch
• Full-color 2.6” LCD for metering, DSP control, and tuning options
• Built-in Bluetooth with TWS Bridge Mode for wireless stereo pairing with AIR XD full-range models

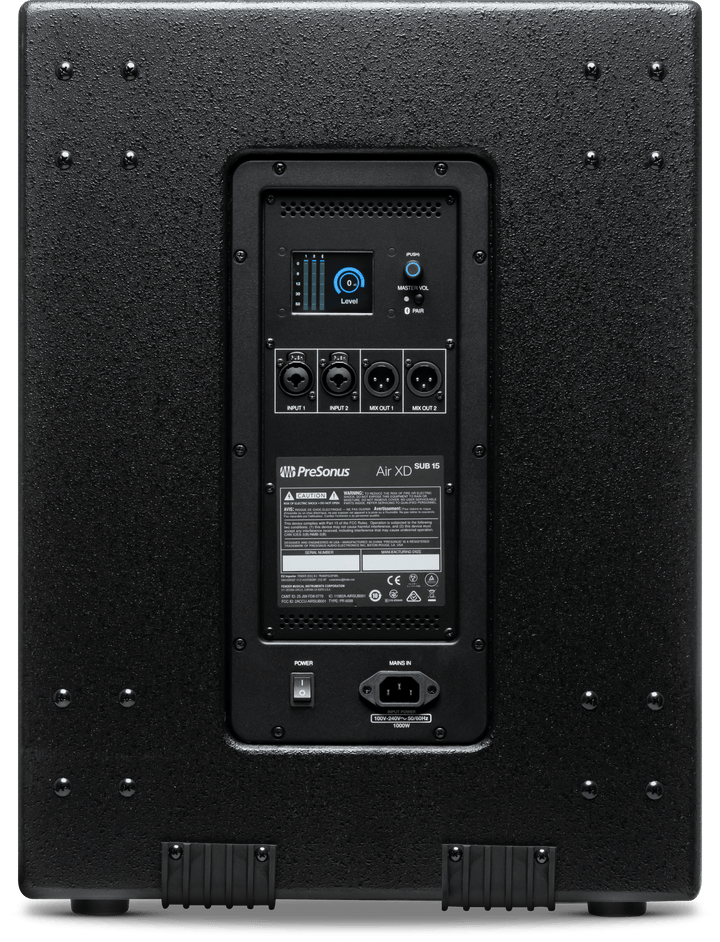

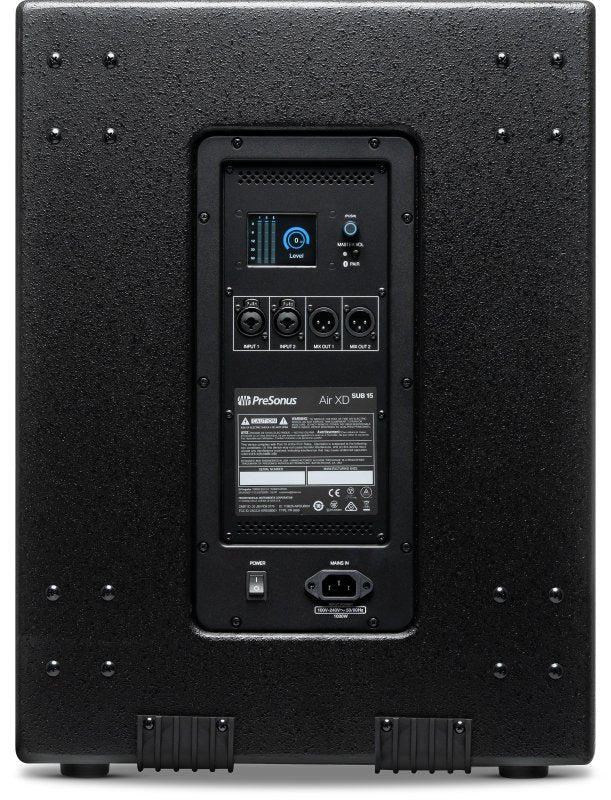

• Dual combo inputs with direct outputs for flexible routing and system integration

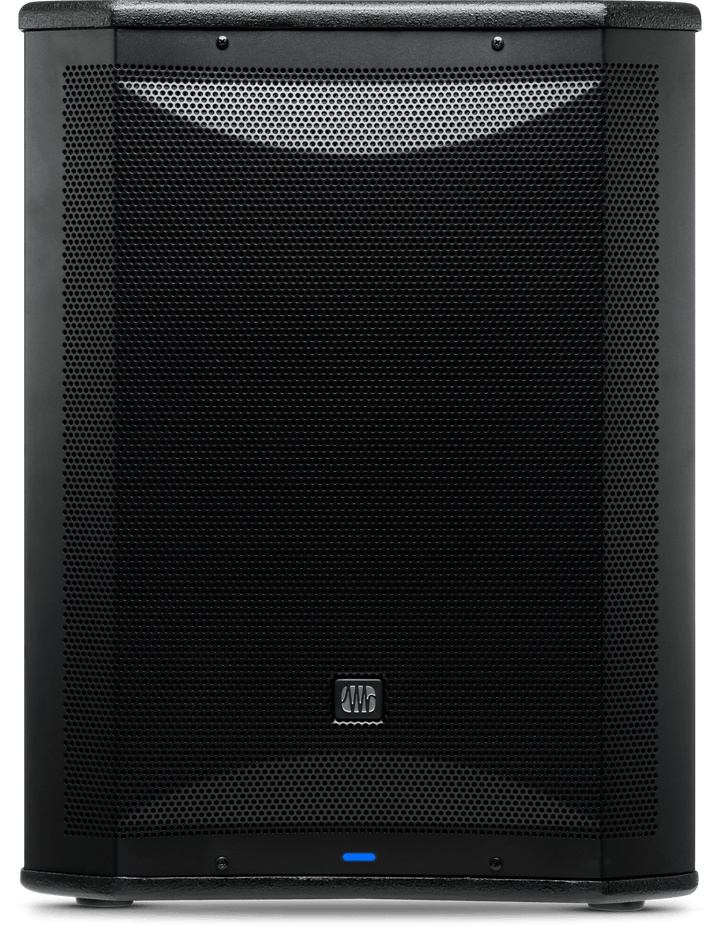

• Rugged wood enclosure with ergonomic handles, ground-stacking provisions, and built-in caster mounting for portability

Specifications

• Included Accessories Casters
• Bluetooth Bluetooth® V5.0
• Channels Two
• Connectivity Bluetooth
• Inputs Three - 2 x XLR/TRS Line Combo, Bluetooth
• Line Out Two - 2 x XLR Link Out
• Power Consumption 5.6A (230V-50 Hz), 11.1A (120V)
• VoltageRequirements 100-240 VAC, 50-60 Hz
• Amplifier Type Class-D
• Color Black
• Product Name AIR XD Sub 15 1 x 15” Active Extended Definition Subwoofer
• Series AIR
• Audio Controls Gain, Volume, Hi/Lo EQ, X-over
• Cabinet Material 15mm Plywood
• Cooling Passive radiator
• Grille Material 1.5 mm Steel
• Handle 2 Side
• LF Transducers 15” (3” Voice Coil)
• Pole Socket Ground-Stack Provisions
• Line Input Connection Type XLR/TRS Mic/Line Combo
• Line Inputs Impedance 14K ohm
• Line Inputs Maximum Level +25dBu
• Product Depth 27.4" (69.6 cm)
• Product Height 21" (53.4 cm)
• Product Height/Length 21" (53.4 cm)
• Product Weight 73.1 lbs (32.9 kg)
• Product Width 16.7” (42.4 cm)
• DSP Features Low-pass EQ, crossover, delay, polarity and “Mo’Bass” mode
• Power Cable IEC
• Protections Output limiter
• Line Outputs Connection Type XLR Male, Balanced
• Peak SPL 128 dB
• Total Power Output 2000 Watts
• Crossover Frequency 60 Hz - 150 Hz
• Speaker Type Active Vented Design
• Total Impedance NA
