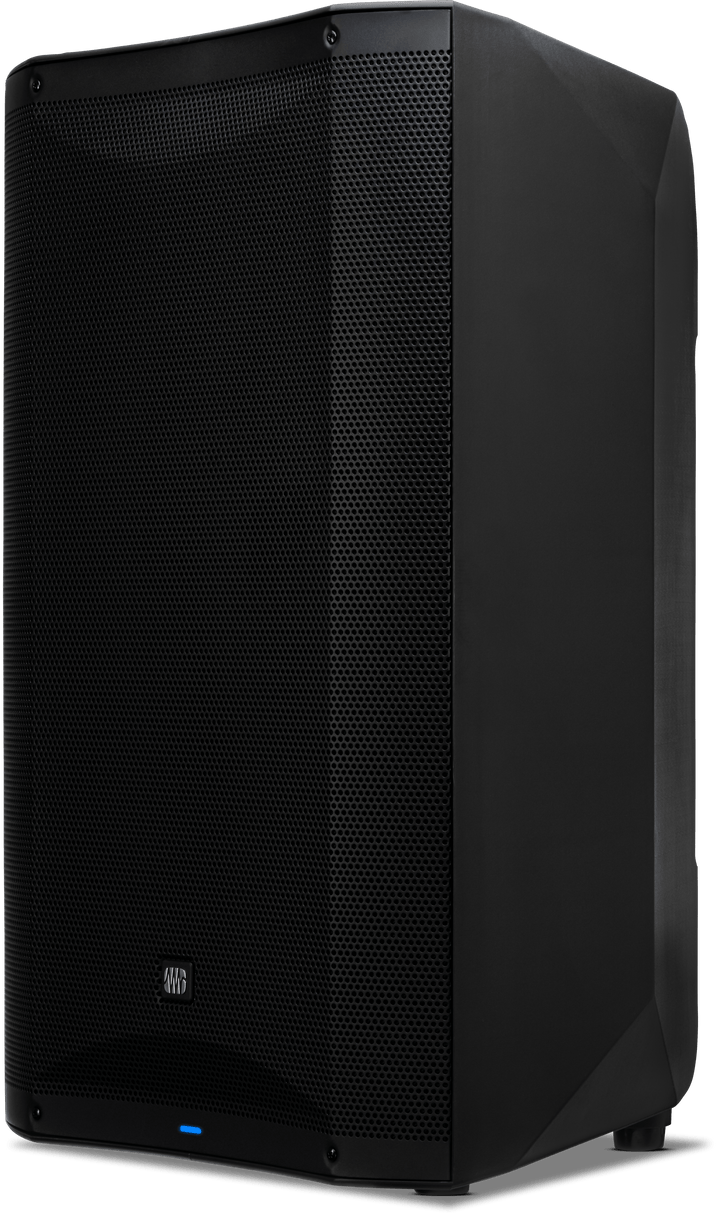

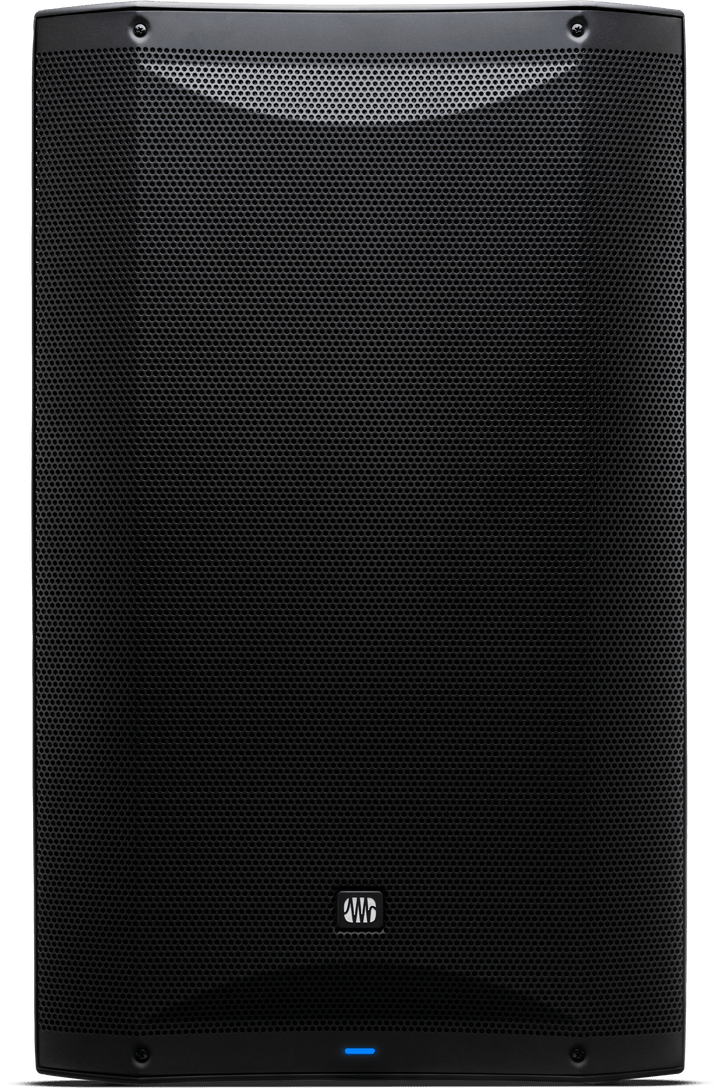

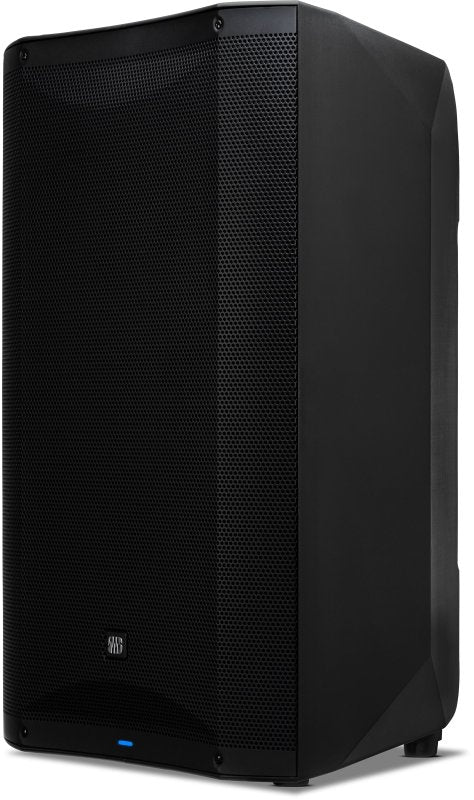

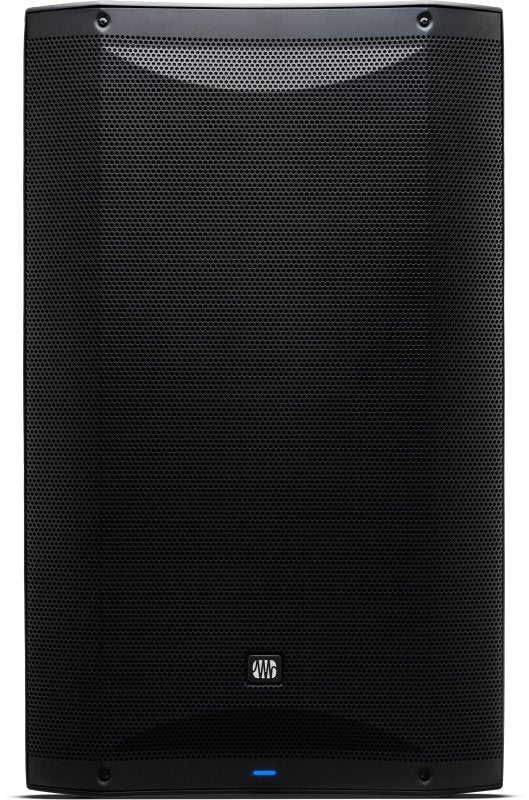

AIR XD 15 2 Way Active Extended Definition Loudspeaker - 15"

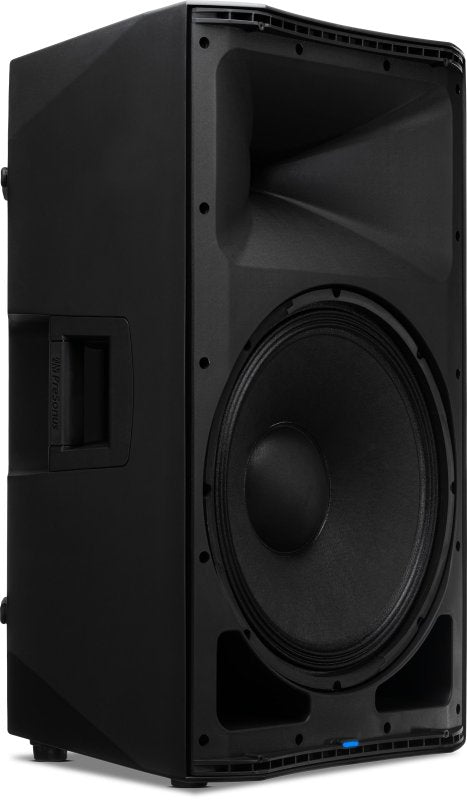

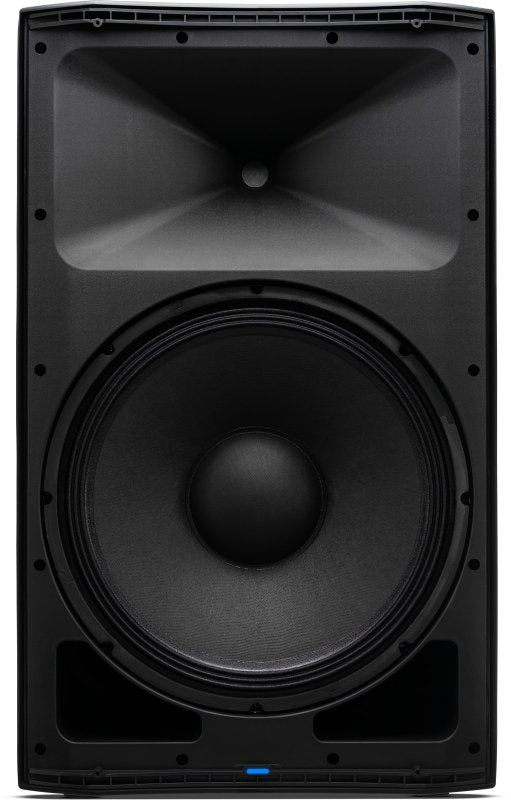

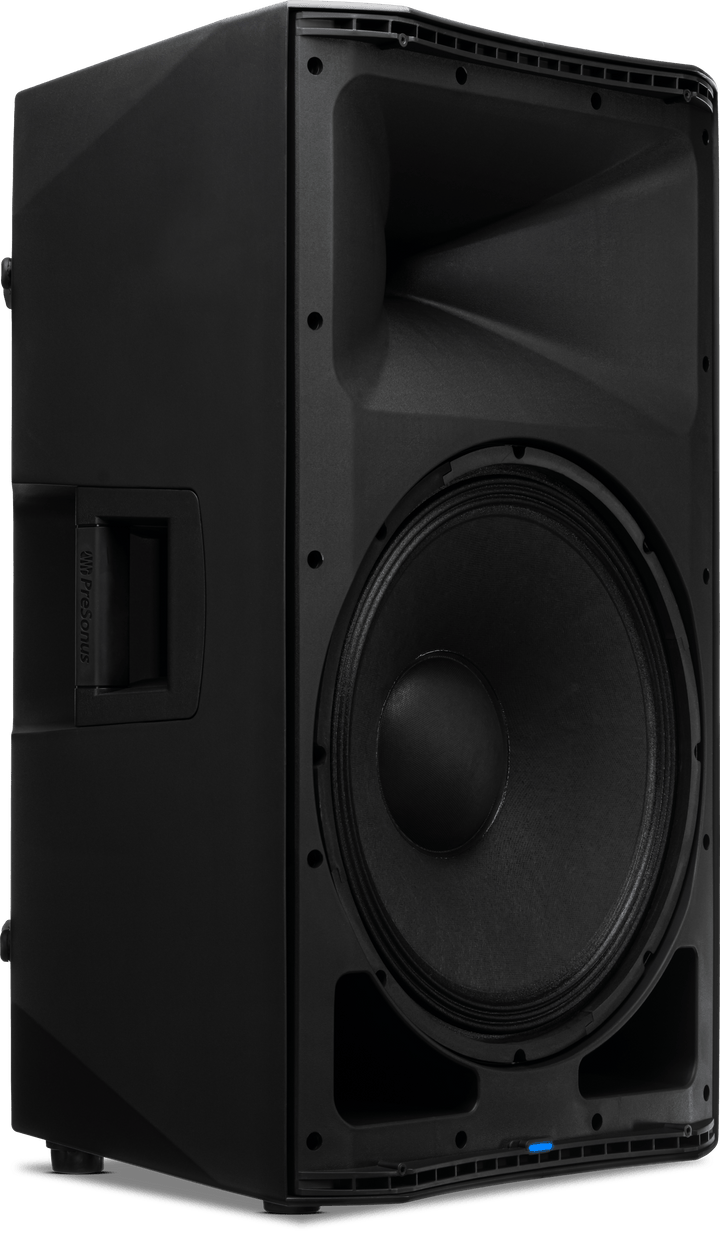

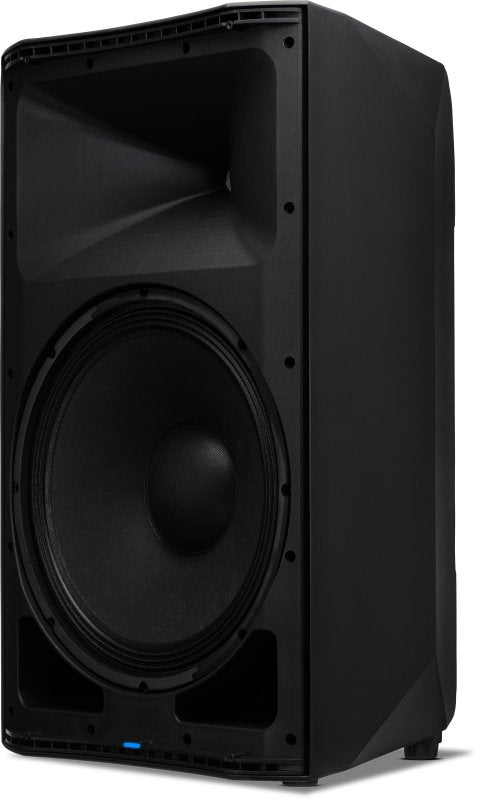

The PreSonus AIR XD 15 is a full-range active loudspeaker designed for professional use, delivering extended-definition sound, high SPL, and precise tonal balance for any application. Its custom 15-inch low-frequency driver features an enlarged 2.56” voice coil for efficient power handling and extended low-end response down to 40 Hz, producing tight, dynamic bass with minimal distortion. The 1.35” high-frequency driver uses a PEEK diaphragm, offering exceptional stiffness, wear resistance, and high-temperature tolerance, resulting in clear, detailed, and ultra-responsive highs even under prolonged, high-output operation.

Powered by 1,500W of efficient Class D amplification, the AIR XD 15 can reach up to 134 dB SPL while maintaining clarity and headroom. Onboard DSP presets, ±10 dB EQ, and performance tuning modes allow quick adjustment for speech, music playback, FOH, or monitor use. A full-color 2.6” LCD provides intuitive metering, system control, and rapid access to all settings.

Built-in Bluetooth with TWS Bridge Mode enables effortless wireless stereo pairing, making it ideal for mobile DJs, corporate events, and fast setups. The integrated mixer includes combo mic/line and aux inputs, allowing seamless connectivity and versatile signal routing. Rugged enclosures with ergonomic handles and multiple mounting options make the AIR XD 15 as portable as it is powerful, whether flown, pole-mounted, ground-stacked, or used as a floor monitor.

Features

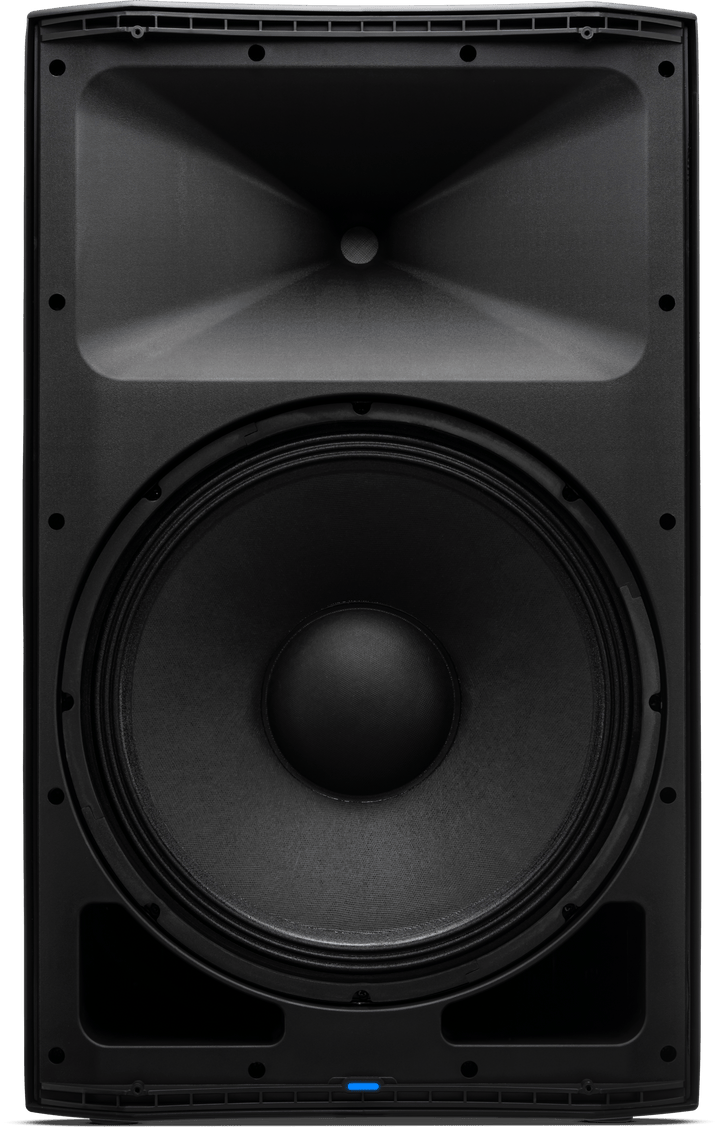

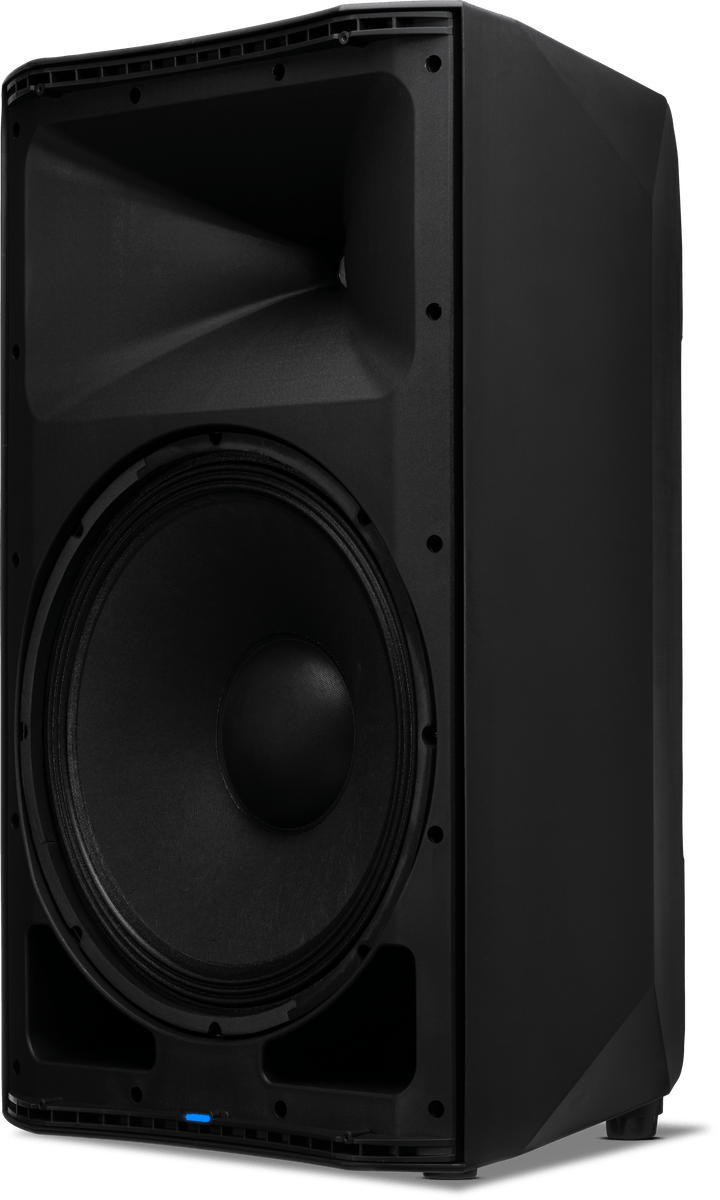

• Custom 15-inch low-frequency driver with enlarged voice coil for extended low-end response down to 40 Hz
• 1.35” High-frequency compression driver with PEEK diaphragm for clear, detailed, and durable highs
• 1,500W Class D bi-amplification for clean, efficient power and up to 134 dB SPL
• Onboard DSP with performance presets, ±10 dB EQ, and tuning modes for speech, music, FOH, or monitor use
• Full-color 2.6" LCD for fast, intuitive metering and system control
• Built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing

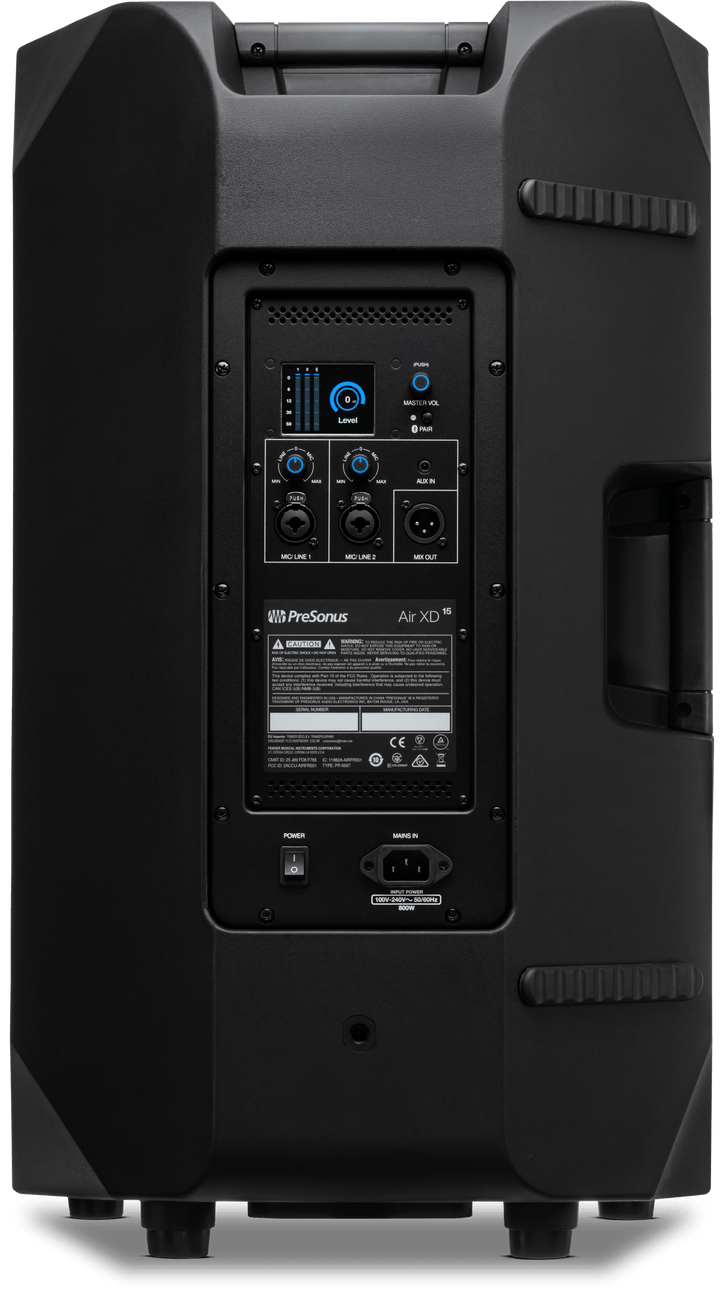

• Integrated 3-channel mixer with combo mic/line and aux inputs for flexible connectivity
• 90˚ horizontal dispersion and 60˚ vertical dispersion
• Frequency Response: 47 Hz to 20 kHz (-3 dB), 40 Hz to 20 kHz (-10 dB)

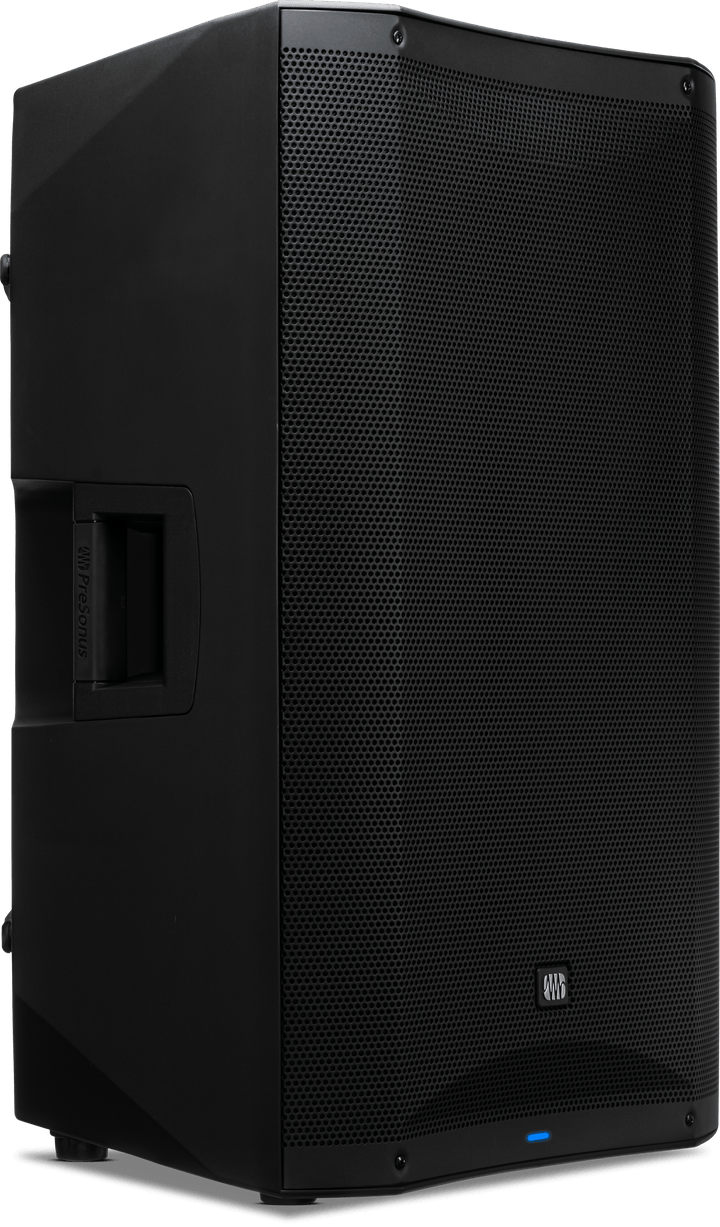

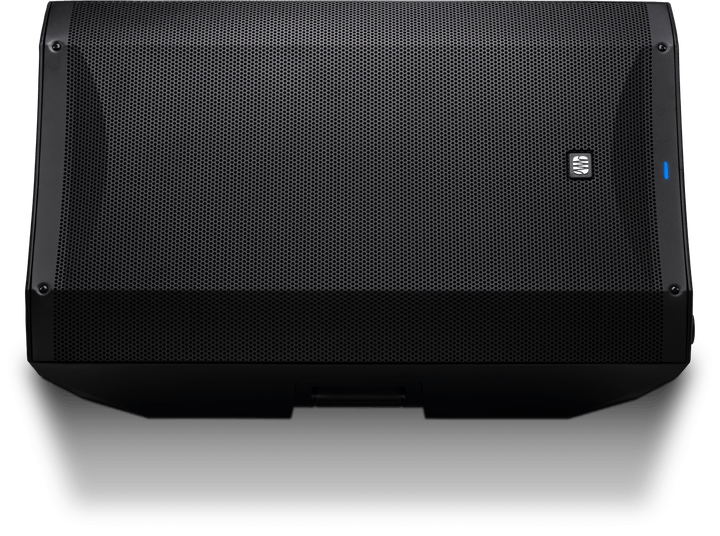

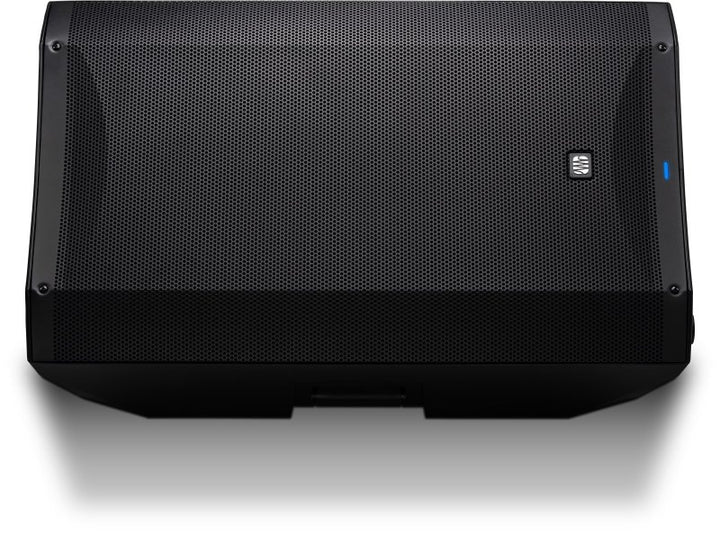

• Rugged, portable enclosure with ergonomic handles and multiple mounting options: flown, pole-mounted, ground-stacked, or floor wedge

Specifications

• Auxiliary Input 1/8 in (3.5 mm) Stereo
• Bluetooth Bluetooth® V5.0
• Channels Three
• Connectivity Bluetooth
• Inputs Four - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8” TRS Stereo, Bluetooth Stereo)
• Amplifier Type Class-D
• Color Black
• Product Name AIR XD 15 2-Way Active Sound-Reinforcement Loudspeaker
• Series AIR
• Audio Controls Gain, Volume, Hi/Lo EQ
• Cabinet Material H-PP Molded
• Cooling Passive radiator
• Grille Material 1.2 mm Steel
• HF Powere 468W
• HF Transducers 1.35” Compression
• Handle 1 Top, 1 Side
• LF Power 1060W
• Line Input Connection Type XLR/TRS Mic/Line Combo
• Line Inputs Impedance 30K ohm
• Line Inputs Maximum Level +14dBu
• Microphone Preamp Input Impedance 30K ohm
• LF Transducers 15” (2.56” Voice Coil)
• Pole Socket Dual Position (0˚, 7.5˚)
• Product Depth 15.8" (40.2 cm)
• Product Height 27.9" (70.9 cm)
• Product Height/Length 27.9" (70.9 cm)
• Product Weight 51.3 lbs (23.1 kg)
• Product Width 16.9" (42.9 cm)
• DSP Features Speaker modes, Location, Bass, Treble
• Power Cable IEC
• Protections Output limiter
• Suspension M10 Suspension Points, Flypoints: 2 Top, 1 Back
• Line Outputs Connection Type XLR Male, Balanced
• Peak SPL 134 dB
• Total Power Output 1500 Watts
• Coverage Pattern 90 degree (H) x 60 degree (V)
• Crossover Frequency 1.6 kHz
• Speaker Type Active 2-Way
• Total Impedance NA
