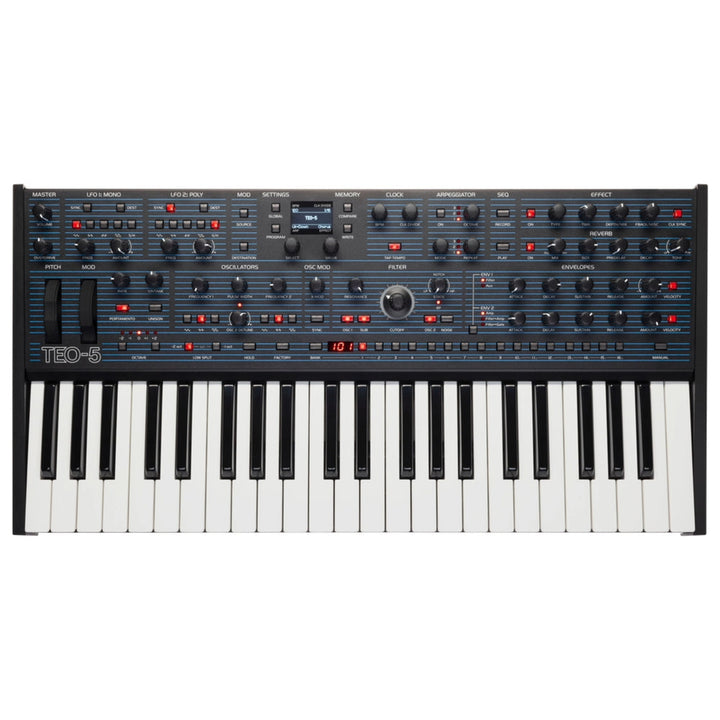

TEO-5 Keyboard

More than his initials, they mark the culmination of a synth pioneer’s vision.  TEO-5 captures the secrets of the OB-X, Four Voice, and TVS, their legendary spirit distilled into an innovative dream machine.

Take your music to the next level with genuine analog VCOs. TEO’s five inspiring voices sing with the warmth and power of pure triangle, sawtooth and pulse waves. But this isn’t your grandfather’s synth. Updated oscillators roar with analog through-zero FM, birthing textures never heard before in an Oberheim instrument.

Specifications:

Voice Path:

• 5-voice, 2x VCOs with saw, square/pulse, triangle, and noise
• Oscillator hard sync and X-Mod with through-zero FM
• Simultaneously selectable wave shapes plus sub oscillator
• Discrete SEM-lineage VCF delivers authentic Oberheim tone and presence
• Filter State knob morphs from low-pass to high-pass through notch, with selectable band-pass mode
• Poly and Mono LFOs with 5 wave shapes and tempo sync
• Meticulously modeled envelope responses based on OB-8
• Modulation matrix with 19 slots x 19 sources x 64 destinations in a flexible design where almost any mod route is possible, including audio rate sources and destinations.

• Enhanced unison allows variable voice stacking from 1-5 voices
• Polyphonic portamento
• Vintage knob recreates vintage synth characteristics by adding voice-to voice variations in component behavior
• Full-featured arpeggiator
• Polyphonic step sequencer with up to 64 steps
• One dedicated reverb effect with damping, pre-delay, decay and tone
• One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, Oberheim phase shifter and ring modulator emulations, vintage rotating speaker, distortion, high-pass filter and Lo-Fi

Hardware:

• 256 factory programs in classic and modern styles, with storage space for 256 more custom user programs
• Direct program access, including single-button access to the current set of 16 programs
• The premium 3.5 octave FATAR velocity- and touch-sensitive keyboard allows unparalleled expression and responsiveness
• Velocity sensitivity adds expressiveness to volume and filter
• Channel Aftertouch adds real-time performance-based modulation
• Modulation wheel and spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)

• Hold switch latches held notes on
• Manual switch: when on, the front panel is live; what you see is what you hear
• Transpose controls for +/- 2 octaves range
• Integral, fanless, heatsink-free power supply
• High-resolution OLED display enables patch management and easy access to advanced features
• Weight: 17 lbs.  Dimensions: 25” L x 12.75” W x 4.4” H
