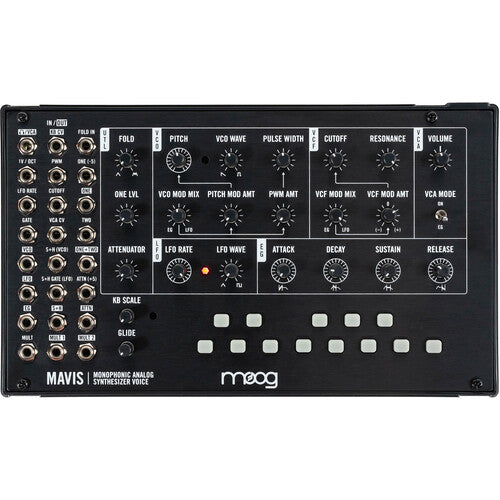

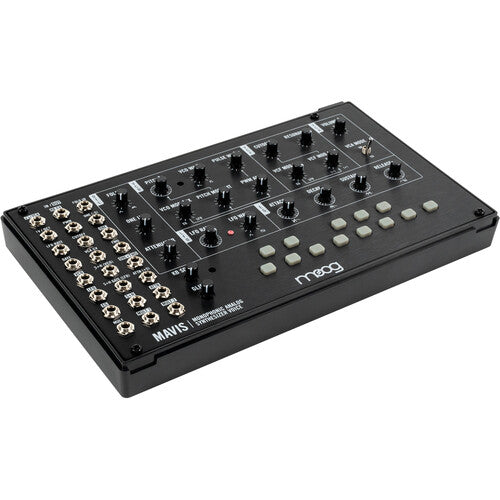

Mavis

Musicians, producers, and analog synthesizer enthusiasts in need of a low-cost analog synthesizer voice will be thrilled with the Moog Mavis, an all-analog synthesizer kit that delivers the classic sound and quality for which Moog is known. The kit is simple to build, requires no soldering, and includes everything you need. The instrument is standalone or works as a 44 HP Eurorack module in any compatible enclosure. The integrated 24-point patchbay is compatible with all Eurorack modules, especially the Mother-32, DFAM, and Subharmonicon instruments.

The synthesizer features a single, all-analog VCO with a variable saw/square waveform with PWM. The classic low-pass Moog ladder filter helps tame harmonics, while the LFO and ADSR envelope generator provides movement to your sound. The integrated keyboard features glide and keyboard-scaling for unusual tonal options. The Mavis is the first Moog instrument to include a wavefolder, which combines subtractive synthesis with additive wavefolding for tons of personality. Mavis includes a protective cover, patch overlays, and five 6" patch cords.

Built-In Keyboard with Glide and KB ScalingAs a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 V/oct controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards.Full-Range Analog OscillatorA voltage-controlled oscillator with PWM (pulse-width modulation), waveform mixing, and mod-source mixing, delivers rich harmonic character and motion.Voltage-Controlled FilterSculpt your sound with the -24 dB Moog low-pass ladder filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads.Audio Rate LFO and 4-Stage Envelope GeneratorMavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours.Wavefolding and Modular UtilitiesMavis features Moog's first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer.Patchable Sample and Hold (S+H) CircuitGenerates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random-sequencing mode of performance.24-Point PatchbayMavis is eager to play along with other voltage-controlled devices (especially with Moog's other semimodular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them.Protective CoverMavis includes a fitted protective cover for use during studio downtime or for taking your instrument on the go.SpecificationsFormatStandalone or 44 HP Eurorack ModuleOscillatorAnalog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWMFilterAnalog 24 dB Moog Low-Pass Ladder FilterEnvelope Generators1 x ADSR (Attack, Decay, Sustain, Release)ProcessorDiode WavefolderLFOAnalog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/SquareUtilitiesModular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled MixerSample & HoldSample & HoldVCAAnalog Voltage-Controlled Amplifier (VCA)Keyboard1-Octave Keyboard with Glide and ScalingPatchbay24-Point Patchbay: 1/8" / 3.5 mm TS ConnectorsDimensions (W x D x H)9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cmWeight0.94 lb / 0.43 kg

Built-In Keyboard with Glide and KB ScalingAs a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 V/oct controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards.Full-Range Analog OscillatorA voltage-controlled oscillator with PWM (pulse-width modulation), waveform mixing, and mod-source mixing, delivers rich harmonic character and motion.Voltage-Controlled FilterSculpt your sound with the -24 dB Moog low-pass ladder filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads.Audio Rate LFO and 4-Stage Envelope GeneratorMavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours.Wavefolding and Modular UtilitiesMavis features Moog's first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer.Patchable Sample and Hold (S+H) CircuitGenerates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random-sequencing mode of performance.24-Point PatchbayMavis is eager to play along with other voltage-controlled devices (especially with Moog's other semimodular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them.Protective CoverMavis includes a fitted protective cover for use during studio downtime or for taking your instrument on the go.SpecificationsFormatStandalone or 44 HP Eurorack ModuleOscillatorAnalog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWMFilterAnalog 24 dB Moog Low-Pass Ladder FilterEnvelope Generators1 x ADSR (Attack, Decay, Sustain, Release)ProcessorDiode WavefolderLFOAnalog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/SquareUtilitiesModular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled MixerSample & HoldSample & HoldVCAAnalog Voltage-Controlled Amplifier (VCA)Keyboard1-Octave Keyboard with Glide and ScalingPatchbay24-Point Patchbay: 1/8" / 3.5 mm TS ConnectorsDimensions (W x D x H)9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cmWeight0.94 lb / 0.43 kg

Built-In Keyboard with Glide and KB ScalingAs a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 V/oct controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards.

Built-In Keyboard with Glide and KB ScalingAs a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 V/oct controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards.

Built-In Keyboard with Glide and KB Scaling

Built-In Keyboard with Glide and KB Scaling

As a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 V/oct controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards.

As a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 V/oct controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards.

Full-Range Analog OscillatorA voltage-controlled oscillator with PWM (pulse-width modulation), waveform mixing, and mod-source mixing, delivers rich harmonic character and motion.

Full-Range Analog OscillatorA voltage-controlled oscillator with PWM (pulse-width modulation), waveform mixing, and mod-source mixing, delivers rich harmonic character and motion.

Full-Range Analog Oscillator

Full-Range Analog Oscillator

A voltage-controlled oscillator with PWM (pulse-width modulation), waveform mixing, and mod-source mixing, delivers rich harmonic character and motion.

A voltage-controlled oscillator with PWM (pulse-width modulation), waveform mixing, and mod-source mixing, delivers rich harmonic character and motion.

Voltage-Controlled FilterSculpt your sound with the -24 dB Moog low-pass ladder filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads.

Voltage-Controlled FilterSculpt your sound with the -24 dB Moog low-pass ladder filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads.

Voltage-Controlled Filter

Voltage-Controlled Filter

Sculpt your sound with the -24 dB Moog low-pass ladder filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads.

Sculpt your sound with the -24 dB Moog low-pass ladder filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads.

Audio Rate LFO and 4-Stage Envelope GeneratorMavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours.

Audio Rate LFO and 4-Stage Envelope GeneratorMavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours.

Audio Rate LFO and 4-Stage Envelope Generator

Audio Rate LFO and 4-Stage Envelope Generator

Mavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours.

Mavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours.

Wavefolding and Modular UtilitiesMavis features Moog's first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer.

Wavefolding and Modular UtilitiesMavis features Moog's first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer.

Wavefolding and Modular Utilities

Wavefolding and Modular Utilities

Mavis features Moog's first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer.

Mavis features Moog's first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer.

Patchable Sample and Hold (S+H) CircuitGenerates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random-sequencing mode of performance.

Patchable Sample and Hold (S+H) CircuitGenerates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random-sequencing mode of performance.

Patchable Sample and Hold (S+H) Circuit

Patchable Sample and Hold (S+H) Circuit

Generates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random-sequencing mode of performance.

Generates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random-sequencing mode of performance.

24-Point PatchbayMavis is eager to play along with other voltage-controlled devices (especially with Moog's other semimodular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them.

24-Point PatchbayMavis is eager to play along with other voltage-controlled devices (especially with Moog's other semimodular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them.

24-Point Patchbay

24-Point Patchbay

Mavis is eager to play along with other voltage-controlled devices (especially with Moog's other semimodular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them.

Mavis is eager to play along with other voltage-controlled devices (especially with Moog's other semimodular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them.

Protective CoverMavis includes a fitted protective cover for use during studio downtime or for taking your instrument on the go.SpecificationsFormatStandalone or 44 HP Eurorack ModuleOscillatorAnalog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWMFilterAnalog 24 dB Moog Low-Pass Ladder FilterEnvelope Generators1 x ADSR (Attack, Decay, Sustain, Release)ProcessorDiode WavefolderLFOAnalog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/SquareUtilitiesModular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled MixerSample & HoldSample & HoldVCAAnalog Voltage-Controlled Amplifier (VCA)Keyboard1-Octave Keyboard with Glide and ScalingPatchbay24-Point Patchbay: 1/8" / 3.5 mm TS ConnectorsDimensions (W x D x H)9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cmWeight0.94 lb / 0.43 kg

Protective CoverMavis includes a fitted protective cover for use during studio downtime or for taking your instrument on the go.SpecificationsFormatStandalone or 44 HP Eurorack ModuleOscillatorAnalog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWMFilterAnalog 24 dB Moog Low-Pass Ladder FilterEnvelope Generators1 x ADSR (Attack, Decay, Sustain, Release)ProcessorDiode WavefolderLFOAnalog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/SquareUtilitiesModular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled MixerSample & HoldSample & HoldVCAAnalog Voltage-Controlled Amplifier (VCA)Keyboard1-Octave Keyboard with Glide and ScalingPatchbay24-Point Patchbay: 1/8" / 3.5 mm TS ConnectorsDimensions (W x D x H)9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cmWeight0.94 lb / 0.43 kg

Protective Cover

Protective Cover

Mavis includes a fitted protective cover for use during studio downtime or for taking your instrument on the go.SpecificationsFormatStandalone or 44 HP Eurorack ModuleOscillatorAnalog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWMFilterAnalog 24 dB Moog Low-Pass Ladder FilterEnvelope Generators1 x ADSR (Attack, Decay, Sustain, Release)ProcessorDiode WavefolderLFOAnalog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/SquareUtilitiesModular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled MixerSample & HoldSample & HoldVCAAnalog Voltage-Controlled Amplifier (VCA)Keyboard1-Octave Keyboard with Glide and ScalingPatchbay24-Point Patchbay: 1/8" / 3.5 mm TS ConnectorsDimensions (W x D x H)9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cmWeight0.94 lb / 0.43 kg

Mavis includes a fitted protective cover for use during studio downtime or for taking your instrument on the go.

Specifications

FormatStandalone or 44 HP Eurorack ModuleOscillatorAnalog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWMFilterAnalog 24 dB Moog Low-Pass Ladder FilterEnvelope Generators1 x ADSR (Attack, Decay, Sustain, Release)ProcessorDiode WavefolderLFOAnalog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/SquareUtilitiesModular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled MixerSample & HoldSample & HoldVCAAnalog Voltage-Controlled Amplifier (VCA)Keyboard1-Octave Keyboard with Glide and ScalingPatchbay24-Point Patchbay: 1/8" / 3.5 mm TS ConnectorsDimensions (W x D x H)9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cmWeight0.94 lb / 0.43 kg

Standalone or 44 HP Eurorack Module

Analog Voltage-Controlled Oscillator (VCO)Waveforms: Mixable Saw/Square with PWM

Analog 24 dB Moog Low-Pass Ladder Filter

1 x ADSR (Attack, Decay, Sustain, Release)

Diode Wavefolder

Analog Low-Frequency Oscillator (LFO)Mixable Waveforms Triangle/Square

Modular Utilities: Attenuators, Offsets, Mults, and a Flexible DC-Coupled Mixer

Sample & Hold

Analog Voltage-Controlled Amplifier (VCA)

1-Octave Keyboard with Glide and Scaling

24-Point Patchbay: 1/8" / 3.5 mm TS Connectors

9.0 x 5.3 x 1.5" / 22.9 x 13.3 x 3.8 cm

0.94 lb / 0.43 kg
