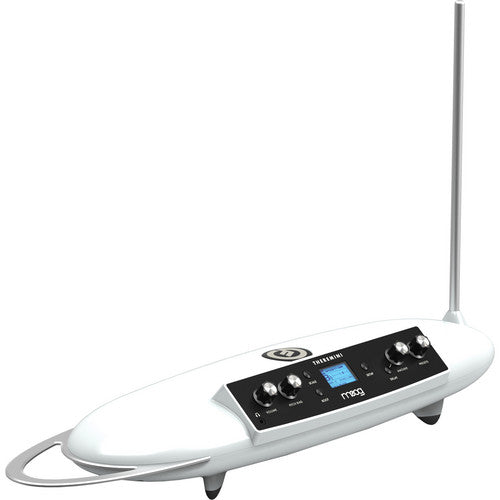

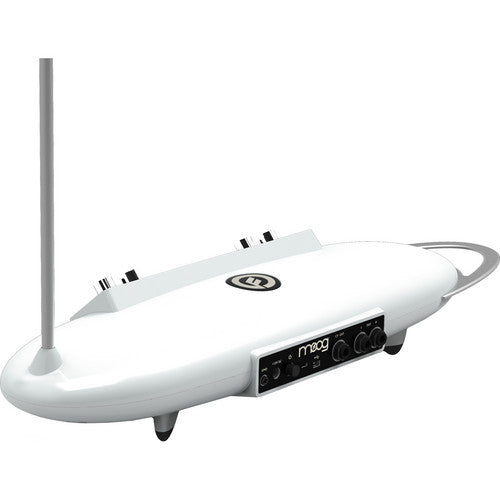

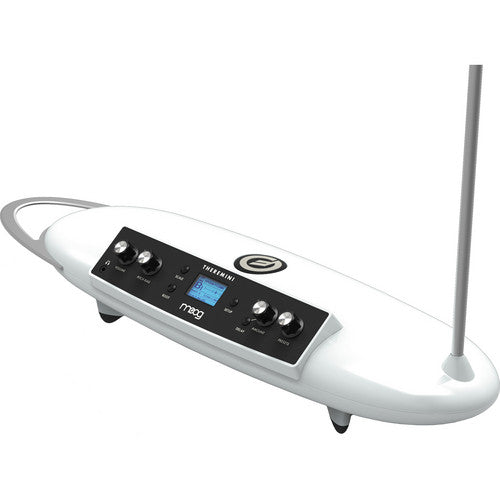

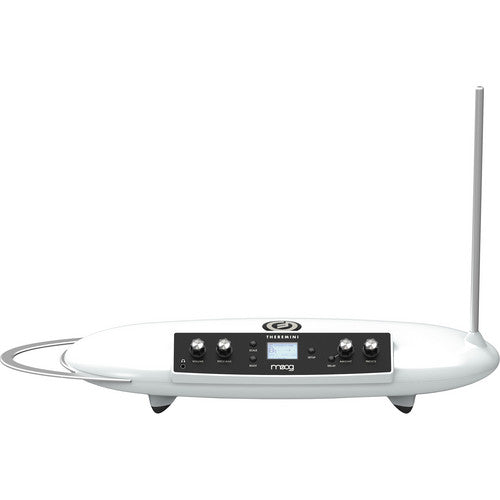

Mini Etherwave Theremin

The MOOG Theremini is designed for practice, studio recording, and live performance. The instrument is played without physical contact by using hand gestures to change volume and pitch by controlling the distance to the device's antennas.

To assist in learning to play the instrument, the Theremini features a built-in tuner that allows you to see what note you are playing and whether the note is sharp, flat, or in tune. A 0 to 100% assistive pitch correction knob allows you to adjust the playing difficulty level of the device by automatically keeping the sound in pitch to a user-defined scale or root note. At 100%, the assistive pitch correction will make it impossible to play a wrong note. At 0%, no pitch correction will be applied. The tuner and assistive pitch correction functions can be used in conjunction to educate the performer on the range of the instrument and develop proper playing technique.

Additional controls include a preset knob that provides 32 wavetable-based sounds, root and scale buttons for selecting a scale and root note, controls for setting and recalling a playing range, and a variable stereo ping-pong delay for individual presets.

For listening, the unit includes a front-panel 1/8" stereo headphone jack with a volume control, as well as a built-in speaker that is muted when the headphone jack is engaged. Two 1/4" audio outputs enable connection to an audio interface, mixer, or other equipment for studio recording or live performance. A single-pitch CV output with selectable range enables external connection to a sequencer or synthesizer using a control voltage signal, and a mini-USB port allows the device to communicate with other devices over MIDI.

The unit's pitch antenna can be removed and placed in a built-in storage compartment on the bottom of the device. Integrated rubberized feet prevent the unit from slipping on the playing surface, and a built-in 3/8" microphone stand connector allows you to put the instrument on a stand. Alternatively, you can use the included camera stand adaptor for placing the unit on a tripod. An amplifier, case, and stand are available and sold separately.

Volume KnobControls headphone output volume or built-in speaker volume depending on whether headphones are connectedPitch Bias KnobDetermines the amount of pitch correction applied—from 0% to 100%Scale ButtonSelects from a list of pre-programmed scalesRoot ButtonSelects the root note to be used in a scaleSetup ButtonProvides access to the setup menu so that the device's functions can be calibrated, also doubles as a shift keyDelay Length ButtonSelects the length of the delay from short, medium, long, and offDelay Amount KnobControls the amount of delay mixed with the unprocessed signalPreset KnobSelects the preset to be played from the built-in collection of 32 Wavetable presetsSpecificationsLCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kgPackaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

Volume KnobControls headphone output volume or built-in speaker volume depending on whether headphones are connectedPitch Bias KnobDetermines the amount of pitch correction applied—from 0% to 100%Scale ButtonSelects from a list of pre-programmed scalesRoot ButtonSelects the root note to be used in a scaleSetup ButtonProvides access to the setup menu so that the device's functions can be calibrated, also doubles as a shift keyDelay Length ButtonSelects the length of the delay from short, medium, long, and offDelay Amount KnobControls the amount of delay mixed with the unprocessed signalPreset KnobSelects the preset to be played from the built-in collection of 32 Wavetable presetsSpecificationsLCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kgPackaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

Volume KnobControls headphone output volume or built-in speaker volume depending on whether headphones are connected

Volume KnobControls headphone output volume or built-in speaker volume depending on whether headphones are connected

Volume Knob

Volume Knob

Controls headphone output volume or built-in speaker volume depending on whether headphones are connected

Controls headphone output volume or built-in speaker volume depending on whether headphones are connected

Pitch Bias KnobDetermines the amount of pitch correction applied—from 0% to 100%

Pitch Bias KnobDetermines the amount of pitch correction applied—from 0% to 100%

Pitch Bias Knob

Pitch Bias Knob

Determines the amount of pitch correction applied—from 0% to 100%

Determines the amount of pitch correction applied—from 0% to 100%

Scale ButtonSelects from a list of pre-programmed scales

Scale ButtonSelects from a list of pre-programmed scales

Scale Button

Scale Button

Selects from a list of pre-programmed scales

Selects from a list of pre-programmed scales

Root ButtonSelects the root note to be used in a scale

Root ButtonSelects the root note to be used in a scale

Root Button

Root Button

Selects the root note to be used in a scale

Selects the root note to be used in a scale

Setup ButtonProvides access to the setup menu so that the device's functions can be calibrated, also doubles as a shift key

Setup ButtonProvides access to the setup menu so that the device's functions can be calibrated, also doubles as a shift key

Setup Button

Setup Button

Provides access to the setup menu so that the device's functions can be calibrated, also doubles as a shift key

Provides access to the setup menu so that the device's functions can be calibrated, also doubles as a shift key

Delay Length ButtonSelects the length of the delay from short, medium, long, and off

Delay Length ButtonSelects the length of the delay from short, medium, long, and off

Delay Length Button

Delay Length Button

Selects the length of the delay from short, medium, long, and off

Selects the length of the delay from short, medium, long, and off

Delay Amount KnobControls the amount of delay mixed with the unprocessed signal

Delay Amount KnobControls the amount of delay mixed with the unprocessed signal

Delay Amount Knob

Delay Amount Knob

Controls the amount of delay mixed with the unprocessed signal

Controls the amount of delay mixed with the unprocessed signal

Preset KnobSelects the preset to be played from the built-in collection of 32 Wavetable presetsSpecificationsLCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kgPackaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

Preset KnobSelects the preset to be played from the built-in collection of 32 Wavetable presetsSpecificationsLCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kgPackaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

Preset Knob

Preset Knob

Selects the preset to be played from the built-in collection of 32 Wavetable presetsSpecificationsLCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kgPackaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

Selects the preset to be played from the built-in collection of 32 Wavetable presets

Specifications

LCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kgPackaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

LCD Screen128 x 64 pixel LCD with white backlightHeadphone Jack1/8" / 3.5 mm TRS headphone jackAudio OutputLeft: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TSCV In/Out Controls1/4" TS, 0 to 5 V or 0 to 10 V selectableUSBMini-USB 2.0 high speed for USB MIDISecurityKensington lock slotPower ControlPush on/Push offPower Requirements12 VDC / 1.2 A from 100 to 240 VAC external supply (included)DimensionsWith Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cmWeight3.0 lb / 1.4 kg

128 x 64 pixel LCD with white backlight

1/8" / 3.5 mm TRS headphone jack

Left: line level 1/4" unbalanced TSRight: line level 1/4" unbalanced TS

1/4" TS, 0 to 5 V or 0 to 10 V selectable

Mini-USB 2.0 high speed for USB MIDI

Kensington lock slot

Push on/Push off

12 VDC / 1.2 A from 100 to 240 VAC external supply (included)

With Antenna: 22.75 x 6.5 x 15" / 57.79 x 16.5 x 38.10 cmWithout Antenna: 22.75 x 6.5 x 4" / 57.79 x 16.5 x 10.16 cm

3.0 lb / 1.4 kg

Packaging InfoPackage Weight5.4 lbBox Dimensions (LxWxH)26.5 x 8 x 5.2"

Packaging Info

5.4 lb

26.5 x 8 x 5.2"
