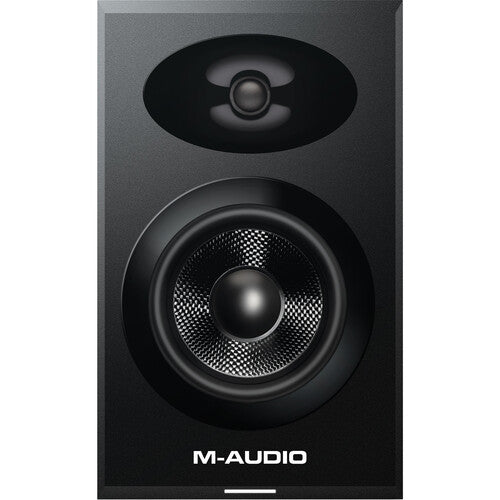

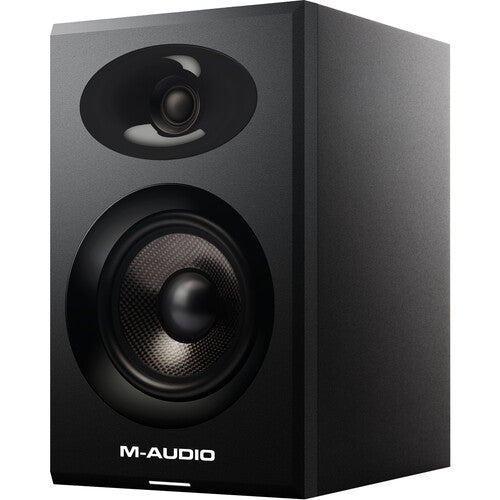

BX5 Graphite

Dishing out 100 watts of bi-amplified power, M-Audio’s BX5 Graphite 5-inch studio monitors are a superb entryway into the world of studio-grade sonics. This monitor’s potent pairing of a 5-inch carbon fiber low-frequency driver and a 1-inch natural silk-dome tweeter provide both startlingly articulate upper-range detail and rich, powerful low end — the latter quality further bolstered by the BX5 Graphite’s bass-boosting optimized rear port. Our production gurus particularly appreciate how the BX5 Graphite’s High Frequency and Acoustic Space control parameters allow you to dial in your monitors to make the most out of almost any studio space. Factor in the computer-optimized tweeter waveguide’s immaculate imaging, and the M-Audio BX5 Graphite is a must-have monitor for the aspiring producer serious about studio sound.

Accommodates any acoustic space

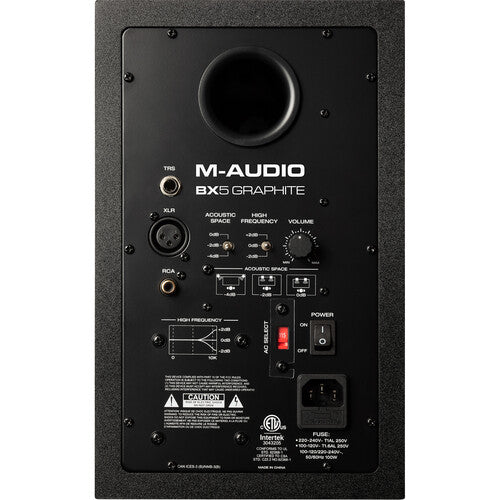

From well-tuned spaces of acoustic excellence to the bedroom studio, M-Audio’s BX5 Graphite active studio monitors are designed to excel in almost any environment. Their secret? High Frequency and Acoustic Space control parameters located on the rear panel. These two intuitive controls grant an impressively deep level of control, making it a breeze to temper both the high-end acoustics of your BX5 Graphite and how it interacts with the room around it.

Features

• Studio-grade active monitor sporting a 100-watt bi-amplified design
• 5-inch carbon fiber low-frequency driver equipped with a damped rubber surround and high-temp voice coil delivers a clear, powerful, and precise response
• 1-inch natural silk-dome tweeter provides exceptional transient detail
• Computer-optimized tweeter waveguide provides incredibly precise sonic imaging
• High Frequency and Acoustic Space controls allow you to tune your sound to your respective room perfectly

Specifications

• Powered: Yes
• Power Configuration: Bi-amped
• Quantity: Single
• LF Driver Size: 5"
• LF Driver Type: Carbon Fiber Woofer
• HF Driver Size: 1"
• HF Driver Type: Natural Silk Dome Tweeter
• LF Driver Power Amp: 60W
• HF Driver Power Amp: 40W
• Total Power: 100W
• Input Types: 1 x 1/4" TRS, 1 x XLR, 1 x RCA
• Features: Room Tuning
• Enclosure Type: Rear Ported
• Enclosure Material: Acoustically-inert MDF
• Power Source: Standard IEC AC Cable
• Height: 11.73"
• Width: 9.09"
• Depth: 7.24"
• Weight: 16.98 lbs
• Manufacturer Part Number: BX5GRAPHITEXUS
