Description

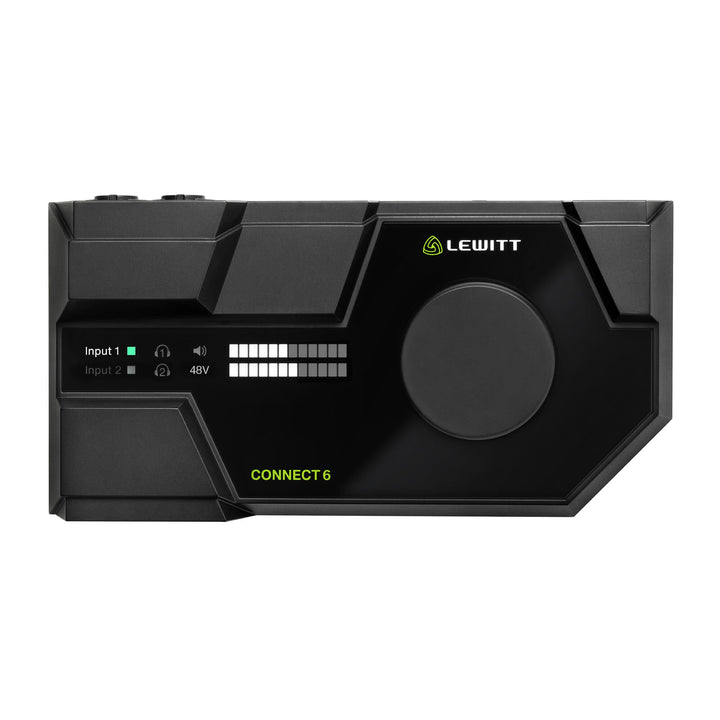

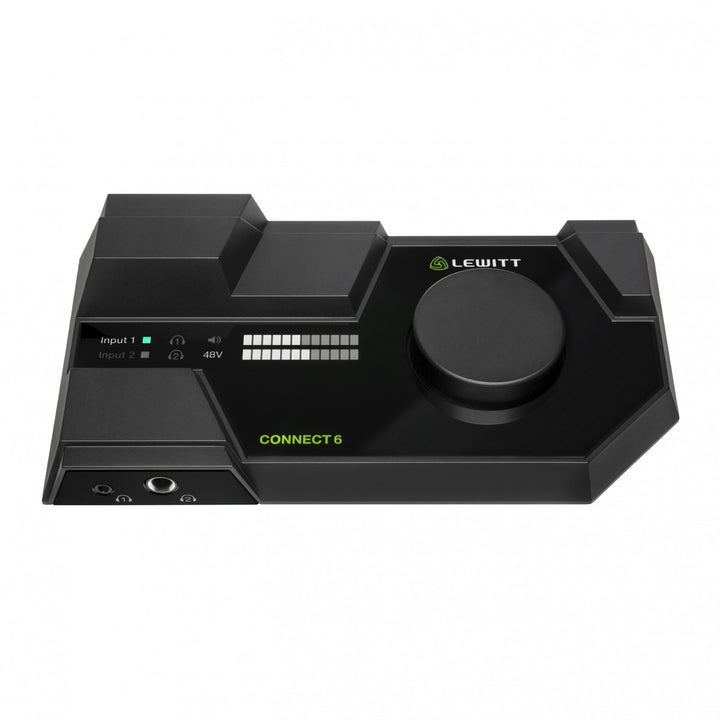

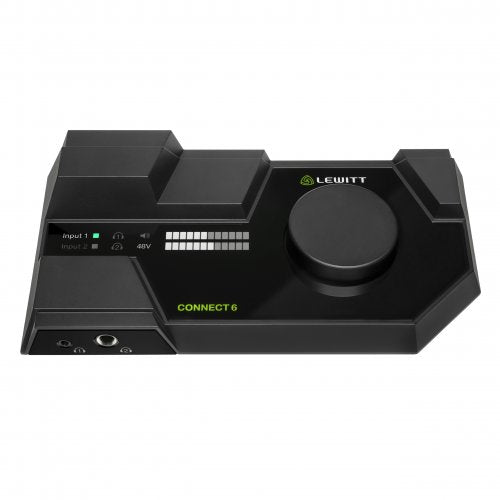

The Lewitt CONNECT6 is a dual USB-C audio interface for content creators and musicians who need more inputs and routing flexibility. Two combo mic/instrument inputs, a stereo aux input, and separate computer and mobile USB ports cover recording, streaming, and mobile workflows. Hardware DSP, two independent mixes, and dual headphone outputs keep monitoring and capture under one roof.
Features

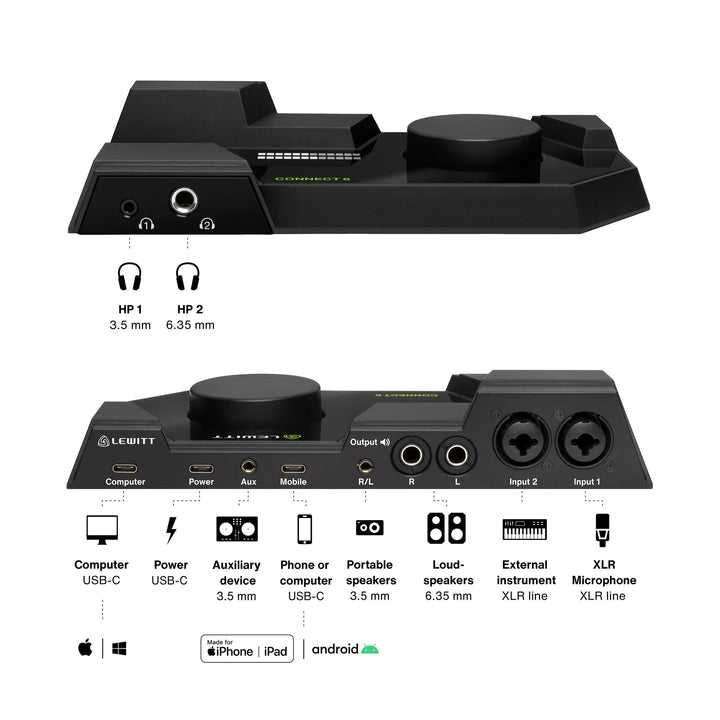

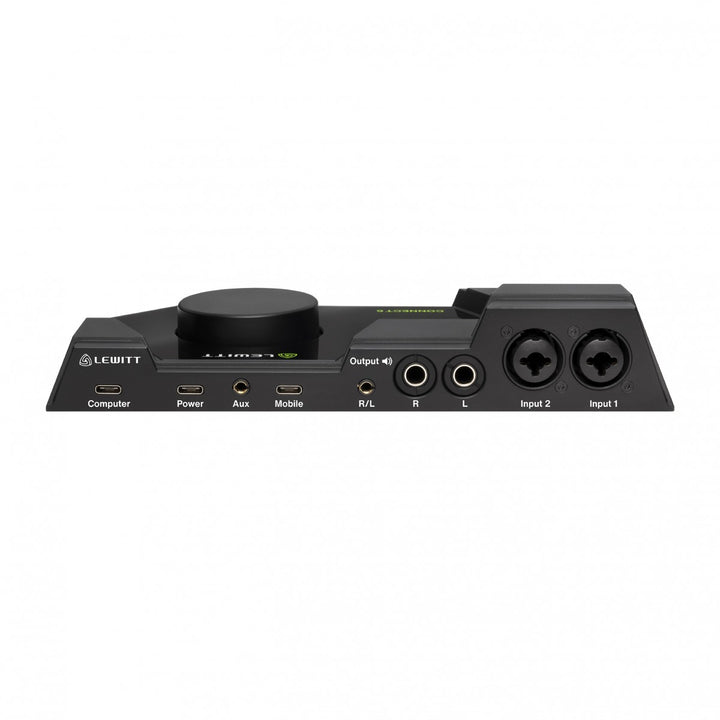

- Two studio-grade combo XLR/6.3 mm mic and instrument inputs with 48 V phantom
- Stereo 3.5 mm aux input for synths and line sources
- Dual USB-C ports: computer (UAC 2.0) and mobile (UAC 1.0) with device charging
- Two independent headphone outputs (3.5 mm and 6.3 mm) with separate volume controls
- Balanced 6.3 mm monitor outputs plus 3.5 mm stereo speaker output
- Hardware DSP: low-cut filter, expander, compressor, 4-band EQ, and Autosetup
- Loopback and two software mixes (MIX A and MIX B)
- Rotary knob control with RGB LED metering
- LEWITT Control Center software; includes Steinberg Cubase LE and Cubasis LE
Specifications
- Digital: 24-bit; computer port 44.1/48/96 kHz (UAC 2.0), mobile port 44.1/48 kHz (UAC 1.0)
- Mic/instrument gain range: -6 to 72 dB
- Mic EIN: -133 dBV (A-weighted)
- THD+N: 0.002%
- Frequency response: 20 Hz to 20 kHz
- I/O: 12 inputs / 6 outputs (includes software channels)
- Compatible with: macOS, Windows, iOS (MFi), Android
- Dimensions: 220 x 114 x 43 mm
- Weight: 395 g
- Recommended external power: USB-C PD 27 W or higher (not included)
