Description

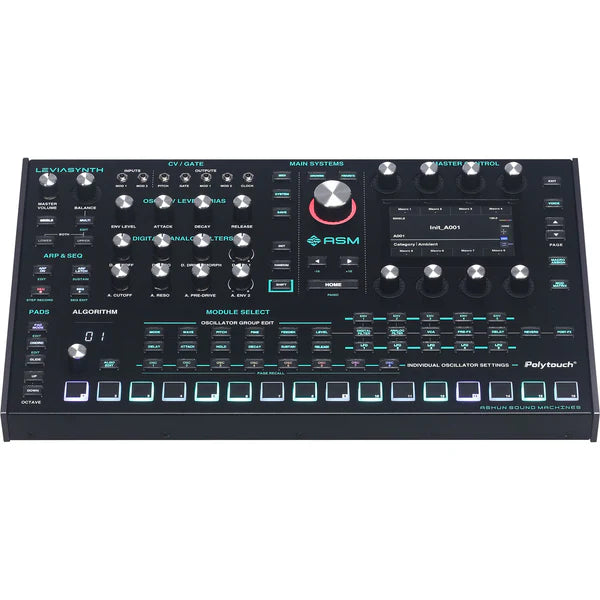

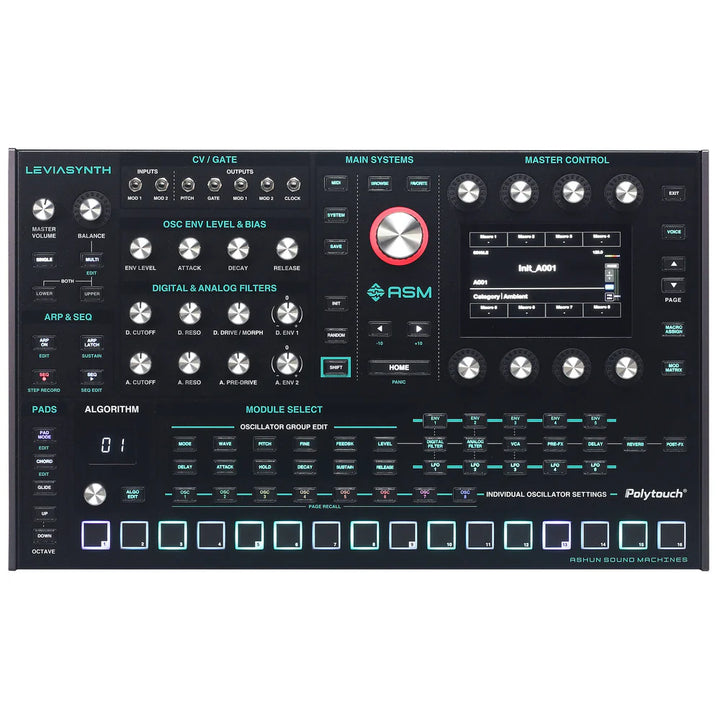

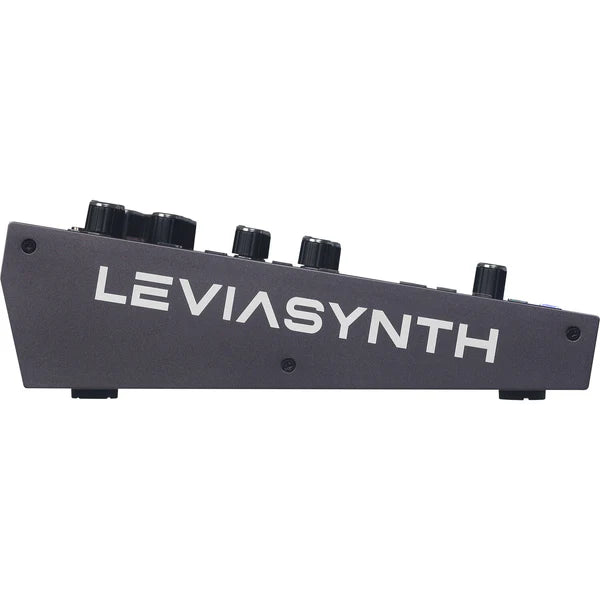

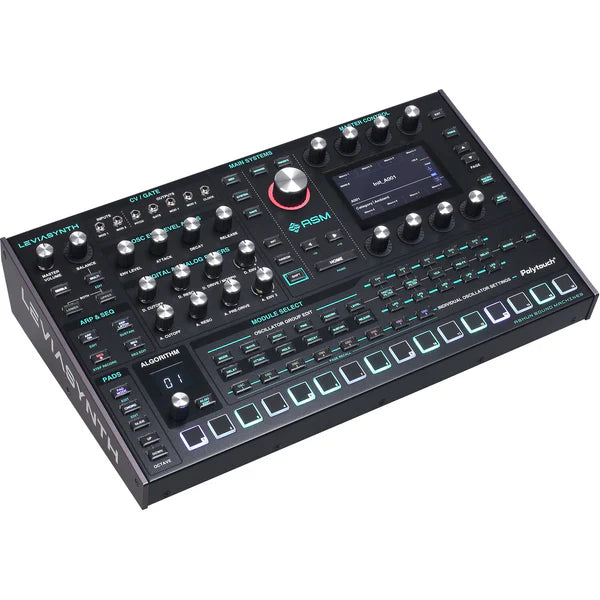

The ASM Leviasynth Desktop is a 16-voice hybrid algorithmic synthesizer module with 8 oscillators per voice, combining an analog 4-pole low-pass filter with 18 digital filter types. Its 16 Polytouch pads provide polyphonic aftertouch for expressive performance without an external keyboard, and 144 preset algorithms define how the oscillators interact for deep timbral variety.
Synthesis Architecture
Each voice contains 8 oscillators with over 300 waveforms and 7 independent oscillator modes. The 144 preset algorithms determine oscillator interaction (phase modulation, frequency modulation, PWM, HTE sync, three phase distortion types), plus one fully customizable algorithm per patch and an algorithm morph function for continuously variable routing. An analog 4-pole (24 dB/oct) low-pass filter with pre-drive saturation and self-oscillation works alongside 18 digital multimode filter types derived from the Hydrasynth.
Modulation and Sequencing
- Envelopes: 13 DAHDSR per voice (1 per oscillator + 5 group envelopes)
- LFOs: 5 per voice (sine, triangle, saw, square, pulse, S&H, noise, random, step), tempo sync and semitone lock
- Mod matrix: 32 slots, 170 sources, 425+ destinations
- Sequencer: 3-track polyphonic (notes + macro automation)
- Arpeggiator: 9 modes with Entropy function for real-time note manipulation
- Macros: 8 macro controllers, each routable to multiple destinations
Connectivity
- Audio: 2x 1/4" balanced (L/Mono, R), 1/4" headphones, 1/8" headphones
- MIDI: DIN In / Out / Thru, USB (class compliant)
- CV / Gate: 2x 1/8" inputs (Mod 1, Mod 2), 5x 1/8" outputs (CV, Gate, Mod 1, Mod 2, Clock)
- Pedals: 2x 1/4" (expression, sustain)
Specifications
- Polyphony: 16 voices (Single mode) / 2 x 8 voices (Multi mode, layer or split)
- Pads: 16 Polytouch (polyphonic aftertouch, velocity sensitive)
- Patches: 1,024 Single + 640 Multi
- MPE: Fully compatible
- Display: Multi-color touchscreen
- Rack mounting: Rack ears included
- Power: 12V 2A DC (included)
- Dimensions (W x D x H): 442 x 267 x 92 mm (17.4 x 10.5 x 3.6")
- Weight: 4.75 kg (10.5 lb)
In the Box
- ASM Leviasynth Desktop
- Rack ear set
- 12V 2A DC power supply
