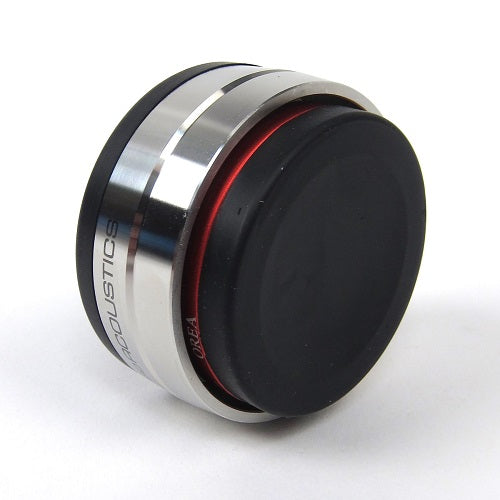

IsoAcoustics OREA Bordeaux Audio Component Isolator (Single)

The IsoAcoustics OREA Bordeaux is a machined stainless steel isolation foot for high fidelity audio components, rated at 32 lbs (14.5 kg) per unit. It suits heavier components such as monoblock amplifiers, power conditioners, large turntables and speakers. OREA feet are sold individually so you can match the number of contact points to the weight and balance of the component, and the Bordeaux ring on the lower isolator identifies the model at a glance.

How the OREA Works

The upper flange creates a suction cup effect against the underside of the component while the lower flange adheres to the shelf, so the energy is managed inside the core of the isolator rather than passing into the rack. Each model is tuned for a specific weight range, which is why staying inside the rated capacity matters more than the number of feet used.

Using OREA Feet in Multiples

Total capacity is the per-unit rating multiplied by the number of feet. IsoAcoustics recommends a minimum of three per component: three Bordeaux feet carry 96 lbs (43.5 kg) and four carry 128 lbs (58 kg). Where a component is heavier at the rear, a common arrangement is two feet at the back corners and one front center. The feet can sit around the existing feet, beside them, or the original feet can be removed so the OREA contacts the chassis directly.

Specifications

• Weight capacity: 32 lbs (14.5 kg) per unit
• Dimensions (Dia. x H): 2.6" x 1.4" (67 x 36 mm)
• Identifying ring color: Bordeaux
• Material: Machined stainless steel
• Quantity: 1 unit (single)
