iLoud Precision MTM MKII

Everything you need for the perfect mix

iLoud MTM MKII improves IK's already industry-leading speaker DSP to deliver unmatched sound quality and an entire suite of carefully designed features that turn any space into the ideal mixing and mastering setup.

Enjoy clear, neutral sound from 40 Hz to 24 kHz, with a deep, controlled low end you'd expect from a speaker twice the size, plus a linear phase response for clarity and transparency that rivals speakers twice the cost. Its MTM design delivers precise time alignment at any distance for hours of fatigue-free listening and minimizes acoustic interactions making it the ideal speaker for desktop use.

Plus, iLoud MTM MKII instantly tunes itself to any room with improved ARC auto-calibration. MTM MKII ensures ideal acoustic performance in any space in seconds, making it the perfect companion for home, project, mobile or makeshift spaces where room treatment isn't an option.

Best of all, iLoud MTM MKII now supports IK's award-winning X-MONITOR software, letting them recreate the sonic profile of dozens of other top studio monitors, plus reference systems from TVs to Bluetooth speakers to phones. You'll have all the reference systems you need to A/B your work and ensure a perfect translation, whether at home or on the go. It's an entire suite of precision-tuned monitoring in a unit small enough to fit in your carry-on.

Superior sonic performance

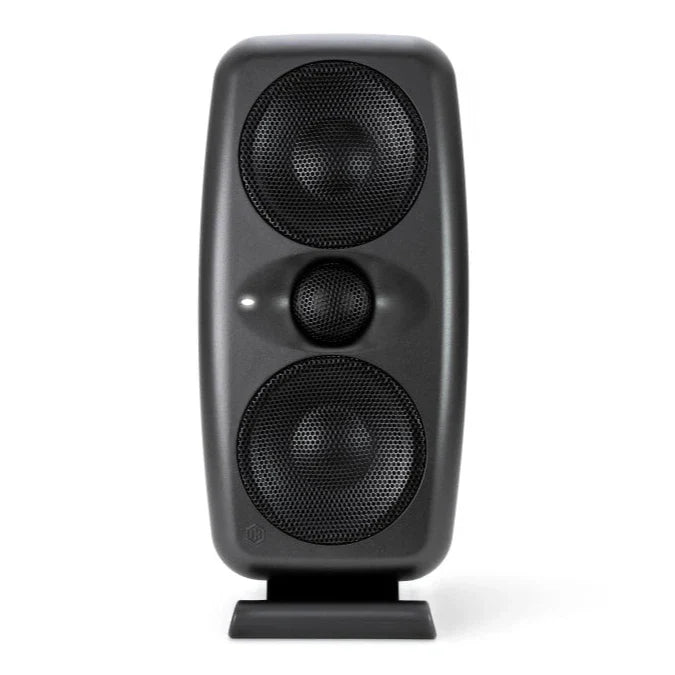

iLoud MTM MKII improves on the original's pair of 3.5" high-performance woofers and one 1" high definition, back-chamber loaded tweeter by adding improved speaker drivers for superior extension and low end, plus improved clarity and articulation in the midrange.

The midrange-tweeter-midrange symmetrical design provides ultra-precise, defined, point source sound that can't be achieved by traditional 2-way systems at close distances, meaning you'll mix faster and with less ear fatigue.

In addition to improved speaker drivers, iLoud MTM MKII maintains the original's tight vertical dispersion, minimizing the acoustic impact of desktop placement, ceiling and floor reflections to ensure the truest possible sound. And MTM MKII now offers wider horizontal dispersion, delivering a broader sweet spot for easier mixing vs. other MTM designs while maintaining the smoothest in-room response.

Improved power efficiency and max SPL mean iLoud MTM MKII also offers superior performance as a FOH mixing monitor, immersive speaker, or other volume-dependent tasks.

Improved ARC room correction

iLoud MTM MKII adds a deeper, more comprehensive ARC auto-calibration to tune to any room. Derived from IK's flagship iLoud Precision series, this 4-space measurement offers an unmatched level of definition and reliable translation in virtually any environment. Connect an ARC MEMS microphone to the mic input on each speaker and you'll be up and running in moments.

X-MONITOR integration

Also inherited from IK's flagship iLoud Precisions, iLoud MTM MKII now offers full X-MONITOR integration. This advanced control software gives you full control over every element of the speaker beyond the rear controls, and also allows for precise delay compensation between units for improved stereo imaging.

Best of all, X-MONITOR allows you to switch between virtual monitoring voices emulating both the frequency and phase response of other top studio monitors and reference systems. With 4 buttons to quickly recall various voices, it's an entire reference monitoring system in a single solution.

Great sound anywhere

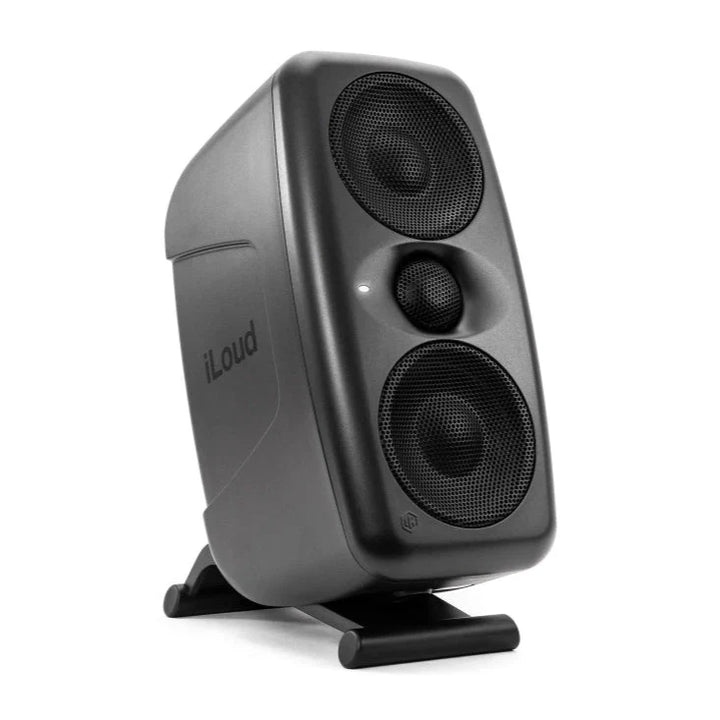

All this technological sophistication is packed into an ultra-compact unit that weighs less than 5 pounds and is small enough to fit a pair in your carry-on with room to spare. With the included tilting desktop mounts, it's the ideal desktop solution for home, project or mobile recording.

Mic stand mounts let iLoud MTM MKII be securely mounted behind a console for studio or FOH use, or even on boom arms to create immersive setups anywhere quickly with no tools required. Or an available mounting bracket lets you easily install MTM MKII as overheads or wall speakers in any studio.

There's never been a monitoring system as powerful and as portable as iLoud MTM MKII.

Features

• Ultra-flat 40 Hz to 20 kHz frequency range with deep, controlled bass
• Linear phase sound and precise time alignment eliminate ear fatigue
• Improved ARC calibration instantly tunes to any room
• X-MONITOR software emulates a range of top monitors and reference systems
• Includes desktop stands and mic stand mount points for use anywhere

Specifications

• Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
• LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers
• HF drivers: 1" low distortion, back chambered silk dome tweeter
• Acoustic design: DSP tuned bass reflex
• Amplification: 2 Class-D amps per speaker (100W total: 70W LF, 30W HF)
• Crossover: Digital, linear phase, 2.8 kHz
• Frequency response: 48 Hz – 28 kHz ±2 dB; 36 Hz – 32 kHz @ -10 dB
• Phase response: ±15° from 200 Hz to 20 kHz
• Max SPL: 110.5 dB peak (free field, 1 m)

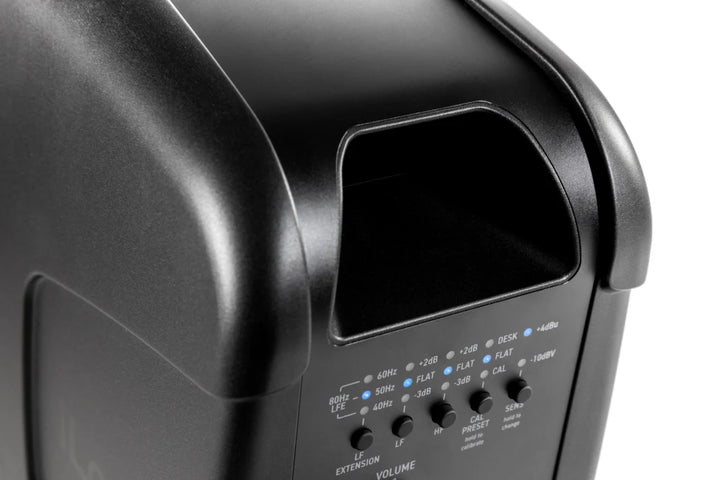

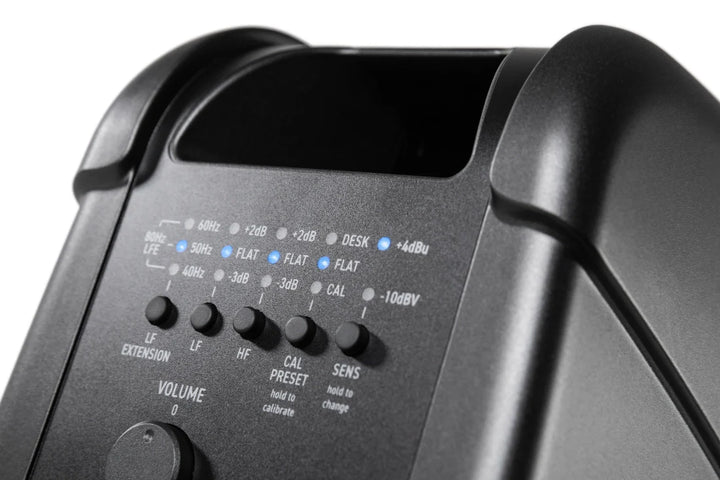

• Controls: LF extension, LF trim, HF trim, Desk position switches
• Calibration: Built-in ARC digital calibration with MEMS mic
• Latency: 2.44 ms

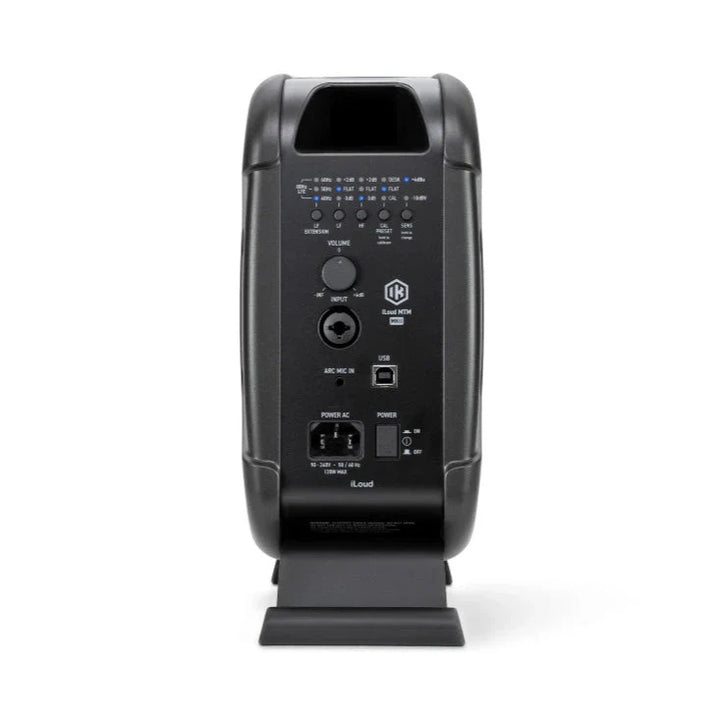

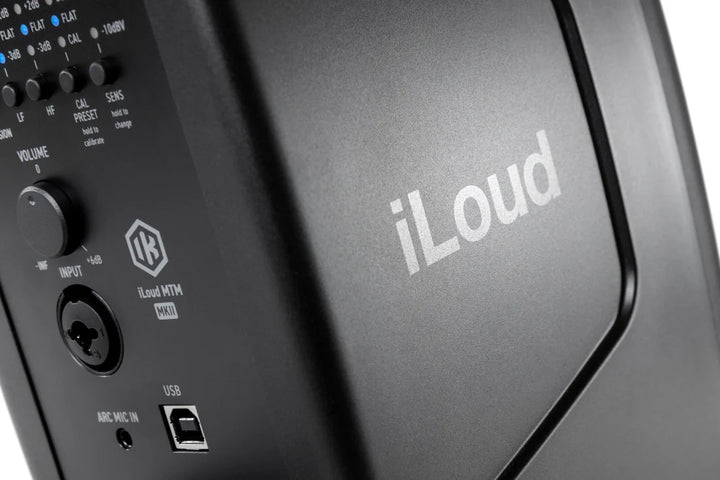

• Connectors: Combo XLR-1/4" TRS input, 1/8" ARC mic input, USB-B, AC power
• Power: 90–240V AC, auto-ranging, 120W max
• Dimensions: 264 x 160 x 130 mm (10.39" x 6.3" x 5.12")
• Weight: 2.5 kg (5.5 lbs) with foot
