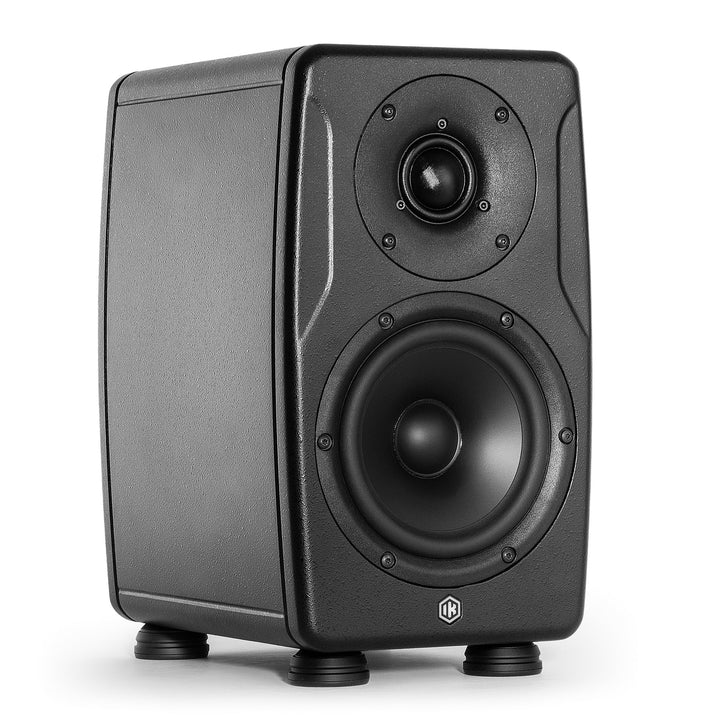

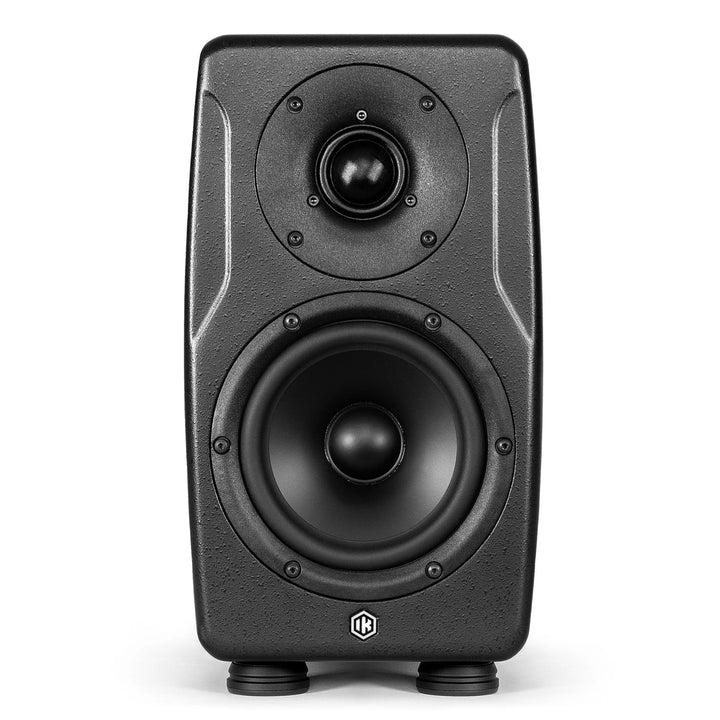

iLoud Precision 5 MKII

A new level of perfection

The new iLoud Precision MKII significantly upgrades nearfield monitoring while preserving its predecessor's groundbreaking performance. It integrates state-of-the-art DSP with a superior electro-acoustic system, the culmination of IK’s over 25 years of expertise in digital signal processing and loudspeaker design.

The MKII boasts a wholly redesigned tweeter for even greater clarity and precision. It also features a more robust cabinet, mounting points for easy wall or ceiling installation, and a refreshed aesthetic with a front-facing LED showcasing the new IK logo. In addition, the MKII now offers complete control through IK’s advanced ARC X software, enabling auto-calibration and providing an intuitive interface for customization in any studio environment.

Living up to its name

• Linear phase and time coherence: Delivers ultra-precise time alignment and extended low end for a new level of detail and accuracy.
• Ultra-flat response: +/-1 dB from 46 Hz to 30 kHz with low-frequency extension down to 39 Hz, ensuring transparent monitoring and reliable translation.
• Built-in room correction: Integrated ARC™ System calibration automatically adjusts to any environment with the included mic.
• ARC X reference modeling: Emulates the frequency and phase response of top studio monitors and reference systems.
• Flexible LF/HF controls: Switchable LF extension (Full/35/50/65/80 Hz) for immersive Atmos and multichannel setups.

A wide array of unique features

Advanced electro-acoustic design

• Audiophile-grade Class-D power amplifiers
• Ultralight-coated paper mid-woofer
• Graphene-reinforced 1.5" textile dome tweeter
• Low-resonance MDF cabinet with reinforced rigidity
• Precision-damped baffle to minimize diffractions and resonances

State-of-the-art DSP

• 96 kHz internal processing for total digital control
• Integrated ARC calibration with included mic
• ARC X software for advanced configuration and emulation
• Optional wired remote for quick profile switching
• Acoustic controls: LF extension, LF trim, HF trim, desk filter

Stunning performance

• Time coherence across the full spectrum
• Linear phase response from 150 Hz up
• Frequency response: +/-1 dB, 46 Hz – 30 kHz
• Peak SPL: 113.3 dB
• Unit-to-unit calibration tolerance within 0.5 dB

MKII: What’s new?

• Upgraded tweeter: Graphene-reinforced membrane provides improved rigidity and reduced mass for unmatched clarity and HF detail.
• Versatile mounting: Enhanced mounting points allow easy integration into immersive and Dolby Atmos setups with optional brackets.
• Refreshed LED design: Updated front-facing IK logo LED for modern style and functional illumination.

ARC X Software

The iLoud Precision MKII integrates seamlessly with ARC X — IK’s advanced control software for Mac and Windows. More than a calibration tool, ARC X is the central hub for monitoring setups of any size.

• Automated calibration across multiple speakers
• Visual interface to configure and manage room layout
• Instantly switch between emulated studio monitors and reference systems
• Includes over 20 system profiles, from pro monitors to consumer devices
• Transforms your studio into a fully calibrated, reliable mixing environment

Key Features

• Linear phase and time coherence for unmatched detail
• Ultra-flat frequency response with extended low end
• Built-in ARC™ System auto-calibration
• ARC X software for advanced system control and emulation
• LF extension and acoustic controls for immersive setups

Specifications

• Power: 135 W RMS total
• Frequency response: 46 Hz – 30 kHz (+/-1 dB); 39 Hz at -4 dB
• Max SPL: 101.6 dB continuous, 113.3 dB peak
• Drivers: 5" ultralight paper woofer; 1.5" graphene-reinforced textile dome tweeter
• Phase response: Linear, +/-20° from 150 Hz up
• Calibration: Built-in ARC, ARC X compatible
• Enclosure: MDF cabinet with precision damping
• Controls: LF extension, LF trim, HF trim, desk filter

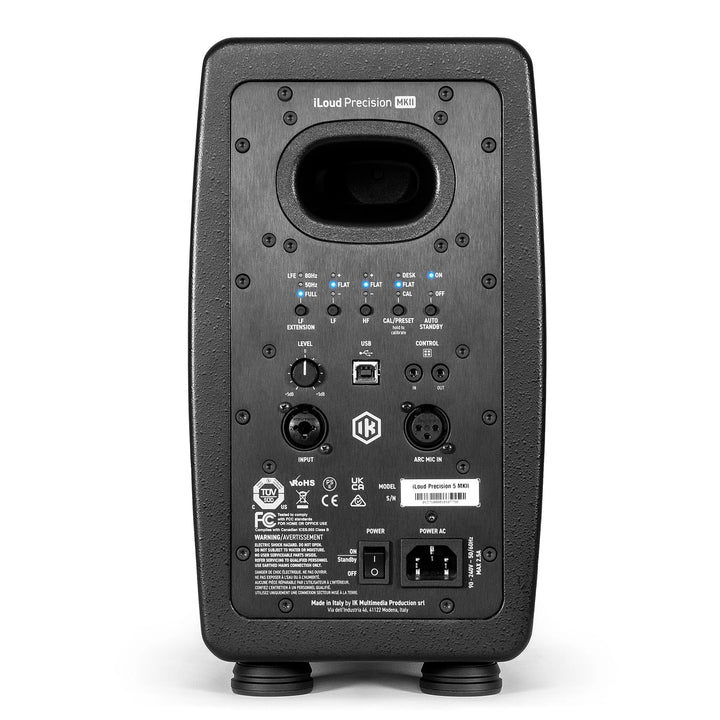

• Connections: Balanced inputs, ARC mic input, USB-B
• Dimensions: 30.5 × 17.7 × 24.8 cm (12" × 6.96" × 9.76")
