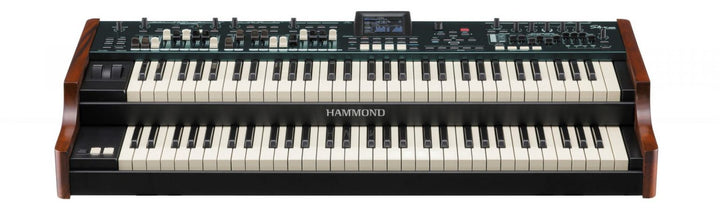

Hammond SKX Pro

The Hammond SkPRO has quickly become the preferred stage keyboard for musicians of all genres, and we’ve heard the call for a dual manual version. No matter which style you play, the SkxPRO will meet your demands for a genuine dual-manual Hammond Organ with all the required additional sounds any keyboard player requires, for any performance or recording session. The SkxPRO shares all the sounds and features of the 61 & 73 key SkPRO.

• Authentic Hammond Organ with tonal engine derived from our Top-of-the-line XK-5
• Dual 61-note "waterfall' keyboards with 9 virtual contacts
• New-generation digital leslie
• 3 independent sets of drawbars: upper/lower/pedal
• Expanded transistor and pipe organ voices (including classical and theatre organ ranks)
• Piano section with a wide variety of keyboard instruments, including new high-resolution gran and electric piano sounds
• Ensemble Section with essential brass, reed, string, choir, clav, polysynth, and percussion instruments
• All piano/ensemble voices fully programmable
• Analog-modelled mono synth section
• Pitch bend and modulation wheels
• Independent DSP effects for organ and piano/ensemble/mono synth
• Seamless switching of tones while playing
• Patches, combinations and centrally located favorite/allocate buttons for quick and easy access to performance needs
• External MIDI zones for outboard MIDI control
• Direct power connection (no outboard power-adapter)
• Multiple assignable outputs with discrete organ and bass outputs
• 1/8 inch stereo input jack for external audio sources
• 11-pin leslie jack for external leslie speaker cabinets
• On-board bulk storage for all programming
• USB Type A and B ports for USB MIDI and mass storage functions
• Large tilted color display giving essential instrument information instantly
• 37.5 lbs. Lightweight and easy to move

Sound Engine:

• Organ Section: MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ)
• Piano/Ensemble Section: Sampling Sound Engine, Polyphony?128
• Mono Synth Section: Analog Modeling Synthesizer, Monophonic

Keyboard:

• Dual 61, with velocity, semi-weighted, Square-front ("Waterfall"?-style)
• 61 note C1 to C6

Organ Section:

• Parts: 3 (Upper, Lower, Pedal)
• Drawbars: 3 sets, [Upper, Lower 9 pitches] Pedal, 2 pitches
• Voicing:Upper & Lower: 8(A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe), Pedal: 3 (Normal, Muted, Pipe)
• Percussion: Buttons: On, Volume Soft, Decay Fast, Third Harmonic

Piano/Ensemble Section:

• Component: 4, LFO: 2

Mono Synth Section:

• Oscillator: 6 types (Duo, Unison, Pulse, Sync, FM, Noise)
• Filter: 4 types (LP12, LP24, HP12, HP24), Resonance, Drive
• Modulator: LFO: 1, EG: 2 (Pitch&Filter, Amplitude)

Effects:

• Organ Section: Vibrato & Chorus , Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer , Leslie, Equalizer & Tone Control
• Piano/Ensemble Section: For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
• Mono Synth Section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
• Master: Equalizer, Reverb

Key Map:

• Internal Zone: Transpose, Octave, Split, Pedal To Lower, Lower to Pedal, Allocate, Pedal Sustain
• External Zones: 3 Zones (assignable to each keyboard)

Controllers:

• Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast)

Memory:

• Favorites: 10 banks x 10 numbers (Combination), 10 numbers (Page)
• Combination: Factory: 100, User: 100, Bundle: 100, Manual
• Organ Patch: Factory: 100, User: 100, Bundle: 100
• Piano / Ensemble Patch: Factory: 300, User: 400
• Mono Synth Patch: Factory: 100, User: 100, Bundle: 100
• Custom Tone Wheel: Factory: 4 x 3, User: 4 x 3
• Custom Pedal Registration: Factory: 3, User: 3
• Custom Pipe: Factory: 3, User: 3
• Custom Cabinet: Factory: 8, User: 8

Storage:

• Internal Memory, USB Flash Drive

Display:

• 320 x 240 pixel, Tilted for improved viewing

Connections:

• MIDI: IN, OUT
• USB: To Host
• Audio: Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control)
• Leslie: 11- pin, 1 and 3 channels available
• Others: Foot Switch 1/Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal

• Rated Power Consumption: 22W
• Dimensions: SkxPRO: 1002mm (W), 479mm (D), 183mm (H) [39.5" (W), 19" (D), 7.2" (H)]
• Weight: SkxPRO: 16.9kg [37.25 lbs]
• Accessory: AC cord
