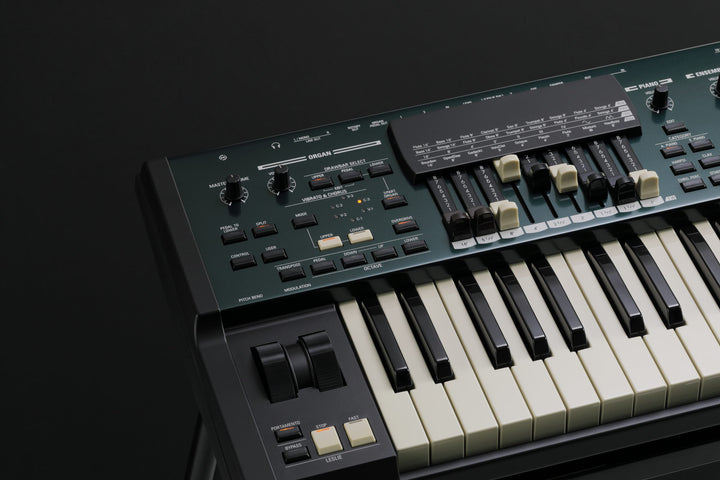

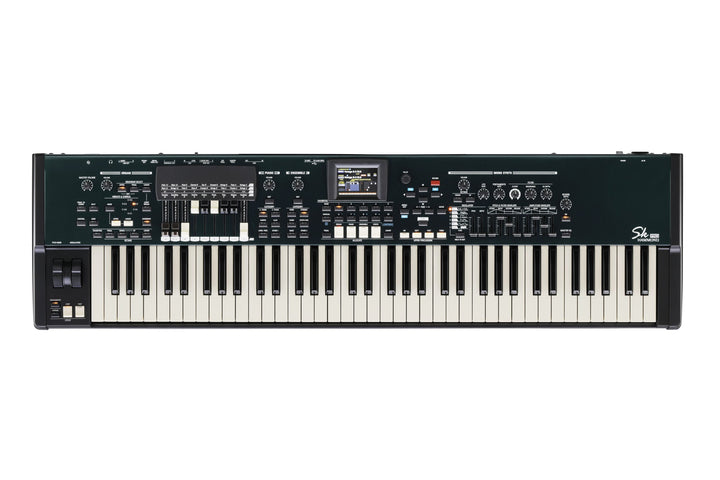

Hammond SK Pro 73

Hammond’s Sk Series set the standard for lightweight, stage keyboards with just the right mix of features for any player, regardless of genre. Hammond’s SkPRO advances and refines the Sk concept bringing unprecedented tonal versatility and functionality; combined with logical real-time controls.

• Ensemble Section with Essential Brass, Reed, String, Polysynth and Percussion Instruments
• Four Sound Engines which can be used separately or in any combination. All samples are at higher resolution than previous SK series
• Drawbar organ engine from Hammond XK-5
• Virtual 9 Multi-contact keyboard (Hammond Patent)
• New Ultra-authentic digital leslie.
• Expanded transistor ("Ace") and classical pipe organ voices (Including 32' Pedal and Theatre Pipe Organ Voices)
• Piano section with a wide variety of keyboard instruments , Including Hi-Res Grand and Electric piano sounds. With new "S" style Grand Piano (Legendary European Instrument)
• Analog-style mono synth section
• Pitch bend and modulation wheels
• Real AC connection. No "power adapter"
• Multiple assignable outputs with discrete organ and bass outputs
• 11-pin leslie jack and multiple pedal jacks
• Onboard bulk storage for all programming
• A & B USB ports for storage and MIDI-over-USB functions
• Seamless switching of tones while playing
• Patches, combinations, and centrally located favorite/allocate buttons allow quick and easy access to performance needs

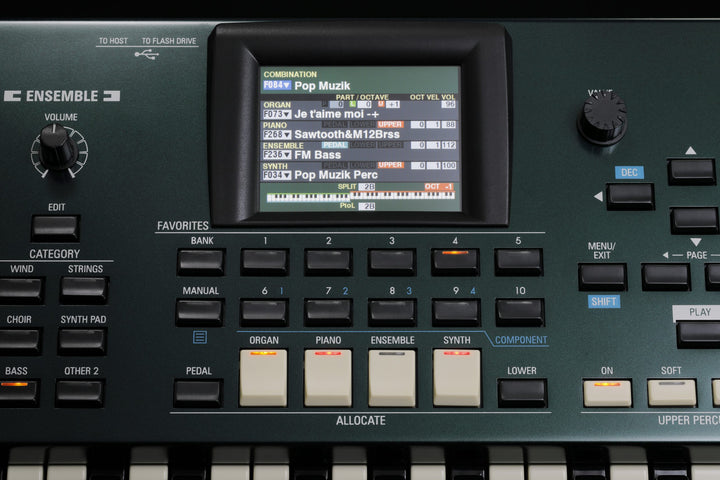

• Large color display

Sound Engine:

• Organ Section: MTW1 (Modelled Tone Wheel I), Polyphony: 61 (Tone Wheel Organ)
• Piano/Ensemble Section: Sampling Sound Engine, Polyphony?128
• Mono Synth Section: Analog Modeling Synthesizer, Monophonic

Keyboard:

• 61/73 note, with velocity, semi-weighted, Square-front ("Waterfall"?-style)
• 61 note C1 to C6 / 73 note F1 to F7

Organ Section:

• Parts: 3 (Upper, Lower, Pedal)
• Drawbars: 1 set, 9 pitches
• Voicing:Upper & Lower: 8(A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe), Pedal: 3 (Normal, Muted, Pipe)
• Percussion: Buttons: On, Volume Soft, Decay Fast, Third Harmonic

Piano/Ensemble Section:

• Component: 4, LFO: 2

• Oscillator: 6 types (Duo, Unison, Pulse, Sync, FM, Noise)
• Filter: 4 types (LP12, LP24, HP12, HP24), Resonance, Drive
• Modulator: LFO: 1, EG: 2 (Pitch&Filter, Amplitude)

Mono Synth Section:

• Favorites: 10 banks x 10 numbers (Combination), 10 numbers (Page)
• Combination: Factory: 100, User: 100, Bundle: 100, Manual
• Organ Patch: Factory: 100, User: 100, Bundle: 100
• Piano / Ensemble Patch: Factory: 300, User: 400
• Mono Synth Patch: Factory: 100, User: 100, Bundle: 100
• Custom Tone Wheel: Factory: 4 x 3, User: 4 x 3
• Custom Pedal Registration: Factory: 3, User: 3
• Custom Pipe: Factory: 3, User: 3
• Custom Cabinet: Factory: 8, User: 8

Effects:

• Organ Section: Vibrato & Chorus , Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer , Leslie, Equalizer & Tone Control
• Piano/Ensemble Section: For each section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
• Mono Synth Section: Multi Effect 1, Overdrive, Multi Effect 2, Equalizer
• Master: Equalizer, Reverb

Key Map:

• Internal Zone: Transpose, Octave, Split, Pedal To Lower, Allocate, Pedal Sustain
• External Zones: 3 Zones (assignable to each keyboard)

Controllers:

• Pitch Bend wheel, Modulation wheel, Portamento, Leslie (Bypass, Stop, Fast)

Memory:

• MIDI: IN, OUT
• USB: To Host
• Audio: Line Out L, R, Headphones, Individual 1, 2, Rotary Out, Organ Pedal Out, Aux In (with Volume control)
• Leslie: 11- pin, 1 and 3 channels available
• Others: Foot Switch 1/Leslie Switch, Foot Switch 2, Damper Pedal, Expression Pedal

Storage:

• Internal Memory, USB Flash Drive

Display:

• 320 x 240 pixel

Connections:

• Rated Power Consumption: 22W
• Dimensions: SK PRO?39.52" (W), 12.67"(D), 4.29"(H) inches / SK PRO-73?46.06"(W), 12.67"(D), 4.29(H) inches
• Weight: SK PRO?20.53 lbs / SK PRO-73: 24.25 lbs
• Accessory: AC cord
