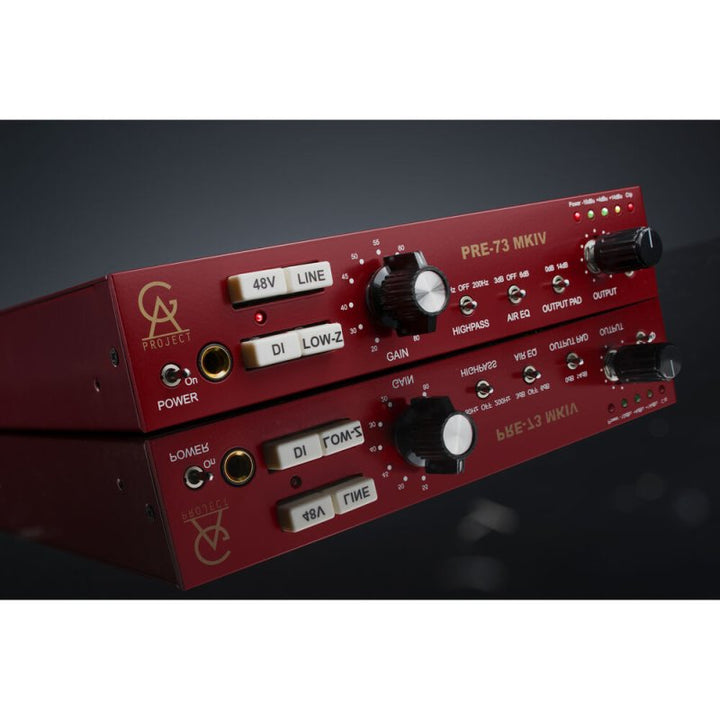

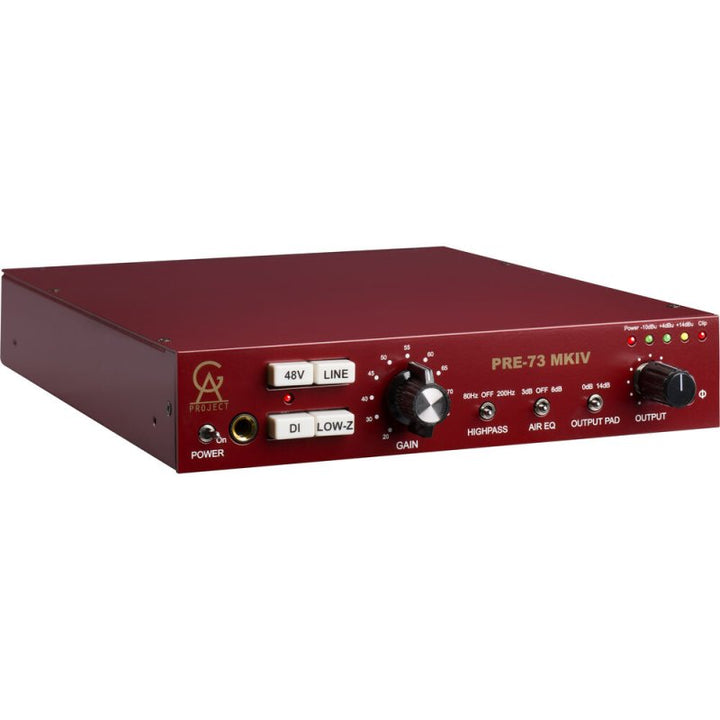

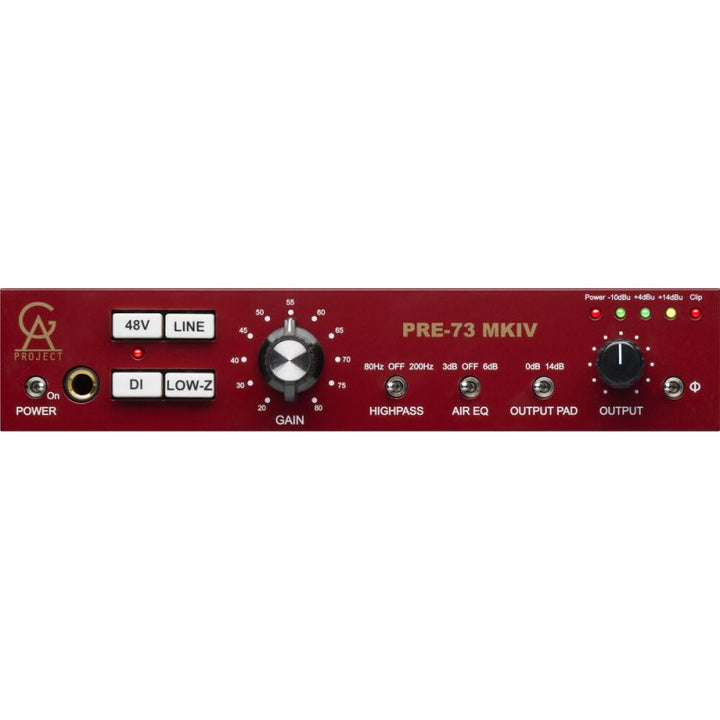

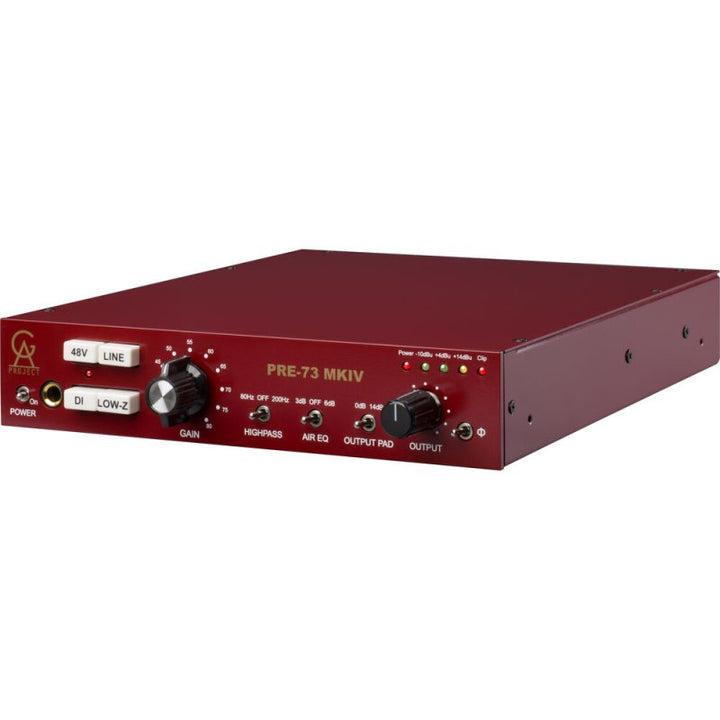

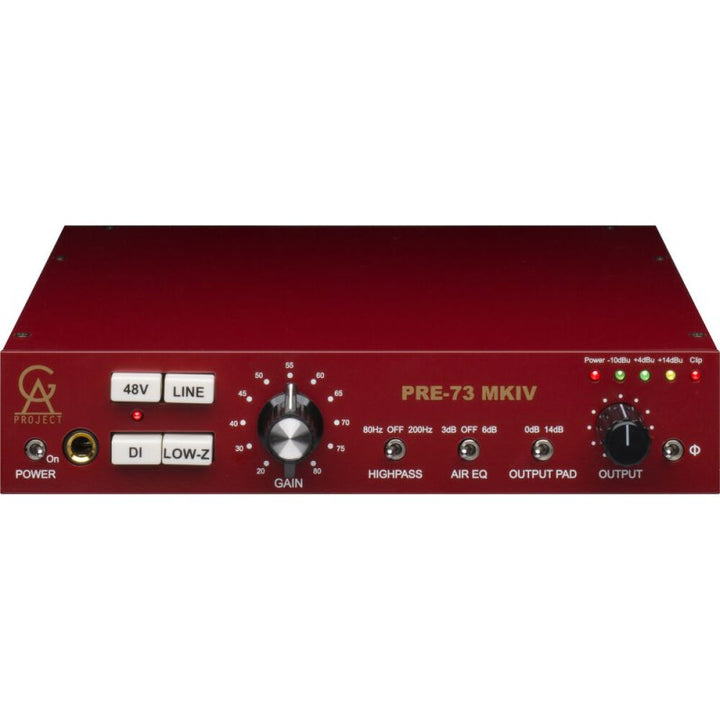

Golden Age Project PRE-73 MKIV Mic/Line/Instrument Preamplifier
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description
The Golden Age Project PRE-73 MKIV is a one-channel vintage-style microphone, line, and instrument preamplifier built around a discrete, transformer-balanced path inspired by classic 1073 console modules. Up to 80 dB of mic gain, an output level control, and a -14 dB output pad let you run clean or push the gain stages for color without slamming the next device in the chain.
Tone Shaping and Connectivity
Switchable 1200/300 ohm mic impedance, a two-position high-pass filter, and Air EQ (3 or 6 dB at 30 kHz) shape the top and bottom at the source. A front-panel Hi-Z input covers guitar and bass, an insert jack accepts outboard EQ or compression, and separate XLR and TRS outputs keep routing flexible. No ICs or surface-mount parts sit in the signal path; an external 24V supply keeps the PSU away from the transformers.
Specifications
- Type: Solid-state, discrete Class-A mic/line/instrument preamplifier
- Channels: 1
- Max mic gain: 80 dB (gain switch 20 to 80 dB; Line mode reduces gain by about 30 dB)
- Mic input impedance: 1200 or 300 ohms, switchable (Line mode about 10 kOhm)
- Phantom power: +48 V, switchable
- Polarity: Switchable
- High-pass filter: 6 dB/octave at about 40 Hz (HP1) or 170 Hz (HP2)
- Air EQ: +3 or +6 dB at 30 kHz
- Output pad: -14 dB
- Output termination: Selectable 600 ohm
- Metering: 4-step LED output level meter

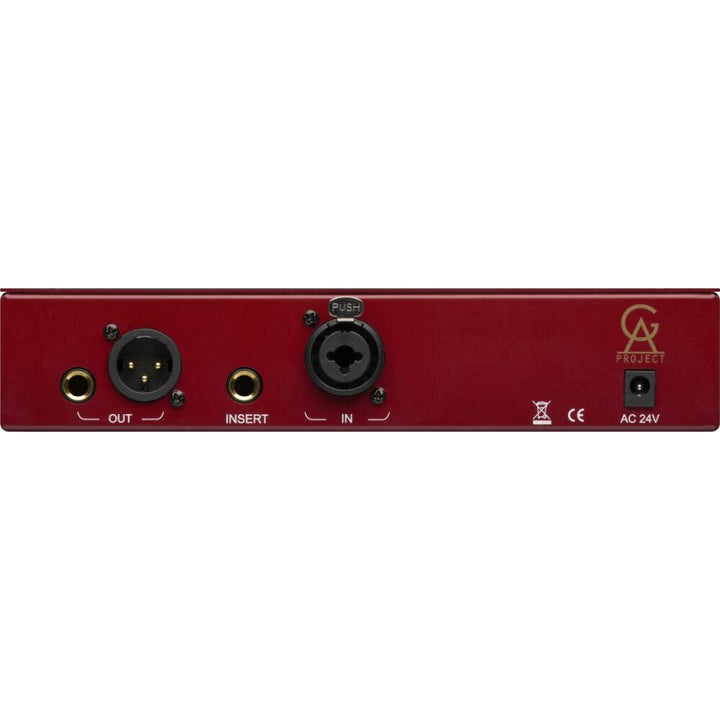

- Analog I/O: Combo XLR/TRS mic/line input; 1/4" Hi-Z instrument input; XLR and 1/4" TRS line outputs; 1/4" insert
- Format: 1U half-rack metal chassis
- Power: External 24V AC supply (included)
- Dimensions: 254 x 216 x 41.9 mm (10" x 8.5" x 1.65")
- Weight: 2.1 kg (4.6 lb)
In the Box
- PRE-73 MKIV preamplifier
- External 24V AC power supply
