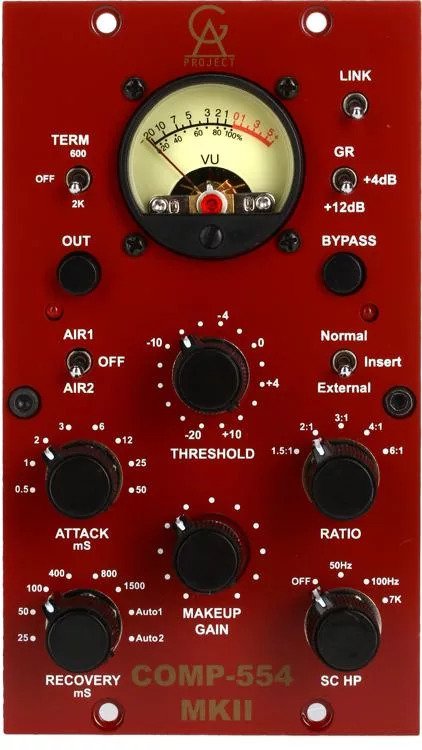

Golden Age Project COMP-554 MKII 500 Series Diode Bridge Compressor
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Golden Age Project COMP-554 MKII is the 500 Series version of the COMP-54 MKIII diode-bridge compressor, with extra routing and tone options for a lunchbox rack. The all-discrete Class-A path uses transformer-balanced input and output plus an interstage transformer. Stepped Threshold, Ratio, Attack, and Recovery (continuous Gain makeup) deliver 2254-style compression in a single 500 slot.
Sidechain, AIR, and Inserts
Three sidechain filter frequencies and three sidechain modes (Internal, Insert, External) cover bus and tracking work. External sidechain I/O is electronically balanced at +4 dBu on the right-slot rack connections. Dual insert connectors accept an EQ-573 in the audio and/or sidechain path. A three-position AIR EQ switch offers Flat, +3 dB, or +6 dB at 30 kHz. Separate hardwire bypass and compression OUT switches, stereo link, dual-reference output metering (+4 / +12 dBu), a two-position output termination switch, and soft-start power ramp complete the module. Transformers are prepared for Carnhill upgrade.
Specifications
- Type: 500 Series Class-A diode-bridge compressor
- Channels: 1 (single-width 500 module)
- Circuit: Discrete; no ICs in signal path; transformer-balanced I/O plus interstage transformer
- Controls: Threshold, Ratio, Attack, Recovery, Gain makeup
- Threshold: -20 dB to +10 dB
- Ratio: 1.5:1 to 6:1
- Stepped controls: All except Gain makeup
- Sidechain filters: Three selectable frequencies
- Sidechain modes: Internal, Insert, External (electronically balanced @ +4 dBu on right slot)
- AIR EQ: Flat, +3 dB, or +6 dB @ 30 kHz
- Meter: Output (+4 or +12 dBu reference) or gain reduction
- Bypass: Hardwire bypass; separate compression IN/OUT
- Inserts: Two connectors for EQ-573 in audio and/or sidechain path
- Link: Stereo link for two modules
- Output termination: Two-position switch
- I/O: Via 500 Series rack edge connector
- Power: 500 Series rack / lunchbox
- Form factor: Single-width 500 Series
- Weight: 1.91 kg (4.2 lb) as listed by distributor (may include packaging)
In the Box
- Golden Age Project COMP-554 MKII
