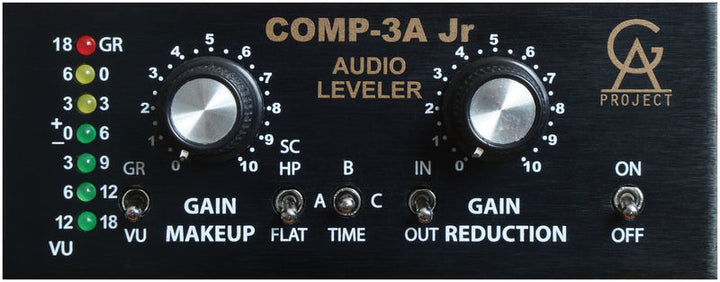

Golden Age Project COMP-3A Jr Vintage Style Optical Compressor

The Golden Age Project COMP-3A Jr is a single-channel vintage-style optical compressor/leveler in a compact 1RU quarter-rack chassis. The discrete signal path uses transformer-balanced input and output. An integrated optocoupler handles gain reduction, with Gain Makeup and Gain Reduction as the two primary controls.

Timing and Sidechain

A three-position TIME switch selects attack/release combinations: A is the fastest (LA-3A-like), B is slower (similar to the full-size COMP-3A), and C is slower still. Internal jumpers can lengthen timing on B and C. A selectable sidechain high-pass filter (-3 dB at 250 Hz, 6 dB/octave) reduces low-frequency triggering. Hardwire bypass and a rear Link jack support A/B checks and stereo pairs.

Specifications

• Type: Solid-state electro-optical compressor / leveler
• Channels: 1
• Gain reduction: Integrated optocoupler; fastest attack about 1 ms
• Main controls: Gain Makeup, Gain Reduction
• Timing: 3-position TIME switch (A / B / C); internal jumpers extend B and C
• Sidechain HPF: Selectable, -3 dB at 250 Hz, 6 dB/octave
• Max output level: 25 dBu
• Max compression: About 20 dB at +4 dBu input
• Makeup gain: About 24 dB above 0 dB gain setting
• Meter: LED bar, gain reduction or output level (0 VU about +4 dBu)
• Bypass: Hardwire
• Inputs: XLR and 1/4" TRS (parallel)
• Outputs: XLR and 1/4" TRS (parallel)
• Other I/O: Link jack (TS cable for stereo link)
• Signal path: Discrete main path; transformer-balanced I/O
• Power: External 24V AC supply (included)
• Form factor: 1RU quarter-rack (up to four in UNITE MKII)
• Dimensions: 121 mm W x 44 mm H (4.75 x 1.75 in); 1U quarter-rack
• Weight: 1.4 kg (3.1 lb)

In the Box

• Golden Age Project COMP-3A Jr
• External 24V AC power supply
