Global Truss ST-5056 12.2in Clamp on Pipe for F31/F32/F33/F34 - 1100lb Rated
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

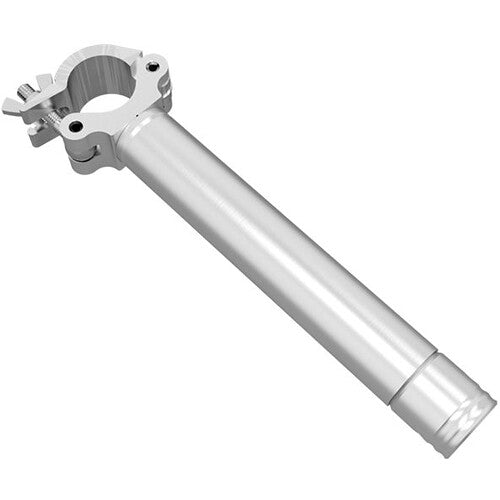

The Global Truss ST-5056 is a 12.2in clamp on pipe for F31/F32/F33/F34. It fits the 50mm (2in) main tubes used across the F31, F32, F33 and F34 ranges. It is rated for 1100 lb.
The Global Truss ST-5056 Heavy Duty Clamp is compatible with the F31, F32, F33, F34, and F44P trusses and features a 330mm spacer along with an M12 wing nut-secured clamp to hold tubing ranging in diameter from 48-51mm. It can support up to 1,102.3 lb and is TUV approved.
Specifications
- Minimum Tube Size: 48mm
- Maximum Tube Size: 51mm
- Profile Width: 50mm
- Max. Load Capacity: 500kg/1100lbs
- Length: 13in
- Unit Weight: 2.27lbs
- Maximum Weight Supported: 1,102.3 lb / 500 kg
- Spacer Length: 13" / 330 mm
- Tubing Diameter: Fits 1.9-2.0" / 48-51 mm
- Dimensions: 16 x 2 x 4.3" / 406 x 50 x 110 mm
- Weight: 2.3 lb / 1 kg
