Description

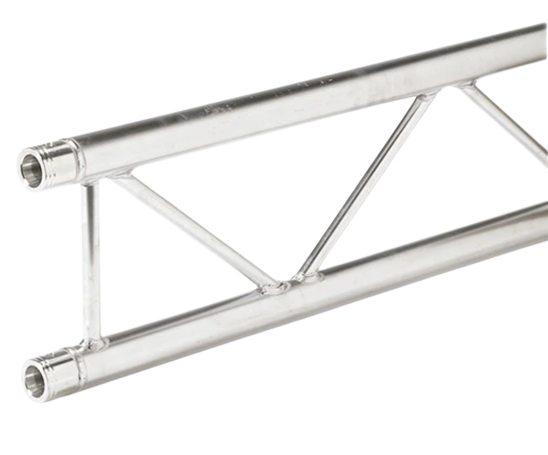

The Global Truss F32-IB-4050 is a 1.5m (4.92ft) I-beam truss. F32 is the two-chord I-beam truss with 50mm main tubes, and it uses the same conical couplers, pins and R-clips as F33 and F34.
The Global Truss IB 4050 4.92' Truss Segment fits the F32 I-Beam which is used for framing signs, video screens, and low ceiling displays.
This truss segment is fabricated by certified TUV welders and comes equipped with connecting hardware.
This truss segment is made of alloy and has a brushed aluminum finish.
Features
- Fits F32 I-Beams
- Alloy EN-AW 6082 T6 (AIMSi1 T6) brushed aluminum finish
- Comes with quick connect hardware
- Custom color powder coating
Specifications
- Material: Alloy EN-AW 6082 T6 (AIMSi1 T6) brushed aluminum finish
- Diameter: 4.92ft/1.5m
- Diagonal Brace: 0.75" (20 mm)
- Length: 4.92 ft.
- Overall Width: 11-7/16" (290 mm)
- Outer Diameter Tubing: 2" (50 mm)
- Wall Thickness: 0.08" (2 mm)
- Unit Weight: 11 lbs.
