Description

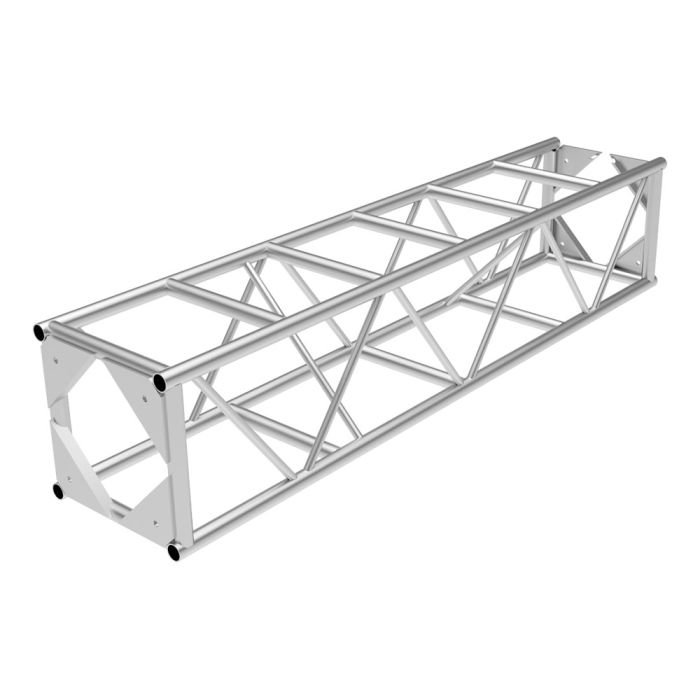

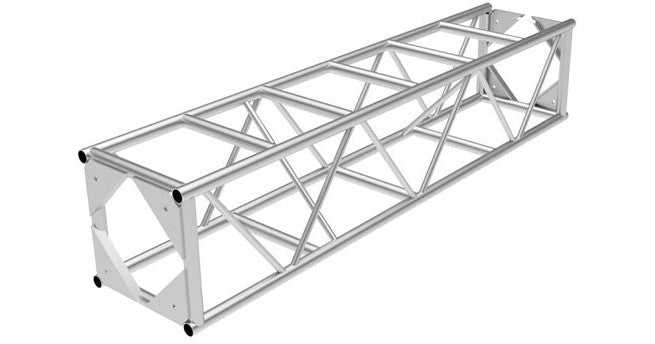

The Global Truss DT-GP20-8FT is a 2.4m (7.87ft) 20.5in End-Plate square truss. DT-GP20 is the 20.5in wide end-plated square truss that bolts together with plates instead of conical couplers.
This 8' straight segment of 20.5" End Plate Truss from Global Truss is used in the construction of support systems for sound and lighting for concerts, conventions, and public venues.
Features
- 20.5-Inch End Plate Trussing
- 8' Straight Segment

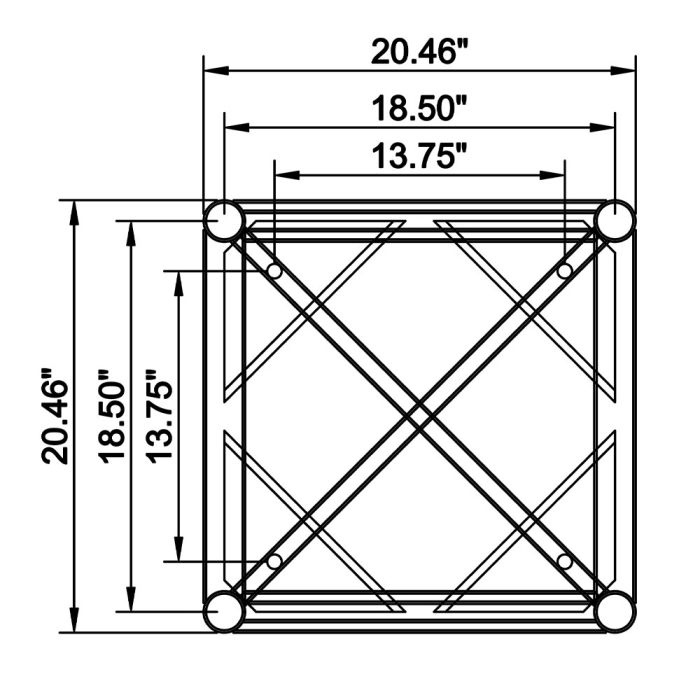

- 20.5″ Overall Truss Width
- 1.96″ 50mm Outer Diameter Tubing
- 0.11″ 3mm Wall Thickness
- 0.98″ 25mm Diagonal Bracing
- 0.08″ 2mm Wall Thickness
- Connecting Hardware Included
- Weight - 76 Lbs.
- 2" Outer Diameter Tubing
- 1" Diagonal Bracing
- 20.5" Overall Truss Width
- Bolt Plate Connection
Specifications
- Diameter: Outer Diameter Tubing: 2" / 5.1 cm
- Length: Straight Segment: 8' / 2.4 m
- Thickness: Outer Tubing Wall Thickness: 0.1" / 0.3 cm; Bracing Wall Thickness: 0.08" / 0.2 cm
- Dimensions: 8 x 1.71 x 1.71' / 243.8 x 52.12 x 52.12 cm
- Weight: 76 lb / 34.5 kg
