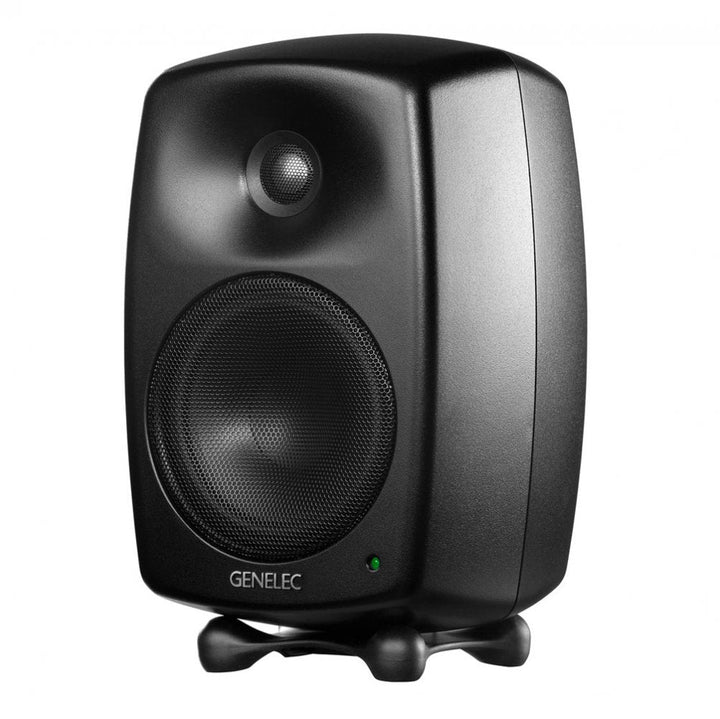

Genelec 8330A 5" SAM Studio Monitor (Black)
Color
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Genelec 8330A is a Smart Active Monitor (SAM) featuring a 5" bass driver, 3/4" metal dome tweeter, and both analog XLR and digital AES/EBU inputs. Combining the precision of Genelec's acoustic design with GLM room calibration technology, the 8330A offers transparent reproduction with powerful automatic room compensation. Its compact footprint and digital connectivity make it equally suited to music production, post-production, and broadcast environments.
Smart Active Monitoring (SAM)
- GLM calibration: Automated room measurement and multi-band EQ compensation via Genelec Loudspeaker Manager software
- Room-adaptive DSP: Compensates for standing waves, boundary effects, and early reflections
- System alignment: Level alignment (60 dB range) and delay alignment (up to 200 ms) for multichannel setups
- Digital audio: AES/EBU input supporting 16-24 bit word length and 32-192 kHz sample rates
Acoustic Design
- Minimum Diffraction Enclosure (MDE): Die-cast aluminium enclosure with minimal edge diffraction
- Directivity Control Waveguide (DCW): Wide, uncoloured sweet spot for accurate mix decisions
- Iso-Pod stand: Acoustic decoupling with adjustable tilt angle
- Intelligent Signal Sensing (ISS): Automatic standby mode
Specifications
- Finish: Black
- Type: 2-way SAM active monitor
- Bass driver: 5" (130 mm) cone
- Treble driver: 3/4" (19 mm) metal dome
- Amplifier power: 50W + 50W (Class D)
- Frequency response: 58 Hz - 20 kHz (+/-1.5 dB, GLM calibrated)
- Frequency range: 45 Hz - 23 kHz (-6 dB)
- Max SPL: 104 dB @ 1 m
- Crossover frequency: 2.9 kHz
- Analog input: XLR balanced (10 kOhm)
- Digital input: AES/EBU XLR (16-24 bit, 32-192 kHz)
- Digital output: AES/EBU XLR thru
- Control network: 2x RJ45 (GLM)
- Mains voltage: 100-240 VAC, 50/60 Hz
Dimensions
- Dimensions (H x W x D): 11.8 x 7.4 x 7.0 in (299 x 189 x 178 mm)
- Weight: 5.1 kg / 11.2 lb
In the Box
- Genelec 8330A monitor (single)
- Mains cable (1.8 m)
- RJ45 network cable (5 m)
- Operating manual
