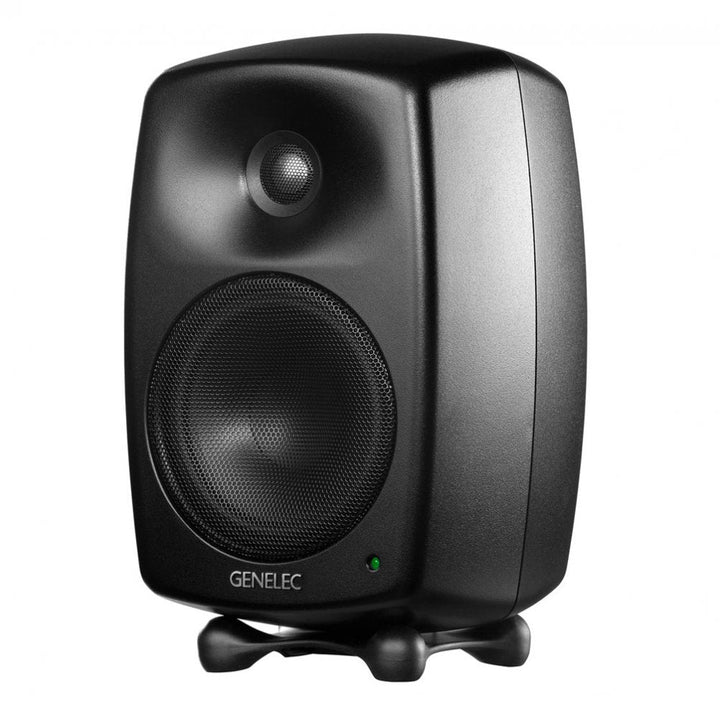

Genelec 8320A 4" SAM Studio Monitor (Black)
Color
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Genelec 8320A is a compact Smart Active Monitor (SAM) featuring a 4" bass driver and 3/4" metal dome tweeter with built-in DSP for room acoustic calibration via Genelec's GLM software. As an entry point into SAM technology, the 8320A automatically compensates for detrimental room influences to deliver optimized monitoring accuracy from mono to immersive setups, adapting intelligently to any acoustic environment.
Smart Active Monitoring (SAM)
- GLM calibration: Connects to Genelec Loudspeaker Manager software via RJ45 network for automated room measurement and EQ compensation
- Room-adaptive DSP: Compensates for standing waves, boundary effects, and early reflections at the listening position
- System alignment: Provides level alignment (60 dB range) and delay alignment (up to 200 ms) for multi-speaker setups
- Scalable: Works in systems from mono to immersive multichannel configurations
Acoustic Design
- Minimum Diffraction Enclosure (MDE): Die-cast aluminium with rounded geometry for minimal edge diffraction
- Directivity Control Waveguide (DCW): Consistent frequency response on and off axis
- Iso-Pod stand: Decoupling and tilt adjustment included
- Intelligent Signal Sensing (ISS): Automatic standby when no signal is present
Specifications
- Finish: Black
- Type: 2-way SAM active monitor
- Bass driver: 4" (105 mm) cone
- Treble driver: 3/4" (19 mm) metal dome
- Amplifier power: 50W + 50W (Class D)
- Frequency response: 66 Hz - 20 kHz (+/-1.5 dB, GLM calibrated)
- Frequency range: 55 Hz - 23 kHz (-6 dB)
- Max SPL: 100 dB @ 1 m
- Crossover frequency: 2.9 kHz
- Analog input: XLR balanced (10 kOhm)
- Control network: 2x RJ45 (GLM)
- Mains voltage: 100-240 VAC, 50/60 Hz
Dimensions
- Dimensions (H x W x D): 9.5 x 5.9 x 5.6 in (242 x 151 x 142 mm)
- Weight: 3.2 kg / 7.1 lb
In the Box
- Genelec 8320A monitor (single)
- Mains cable (1.8 m)
- RJ45 network cable (5 m)
- Operating manual
