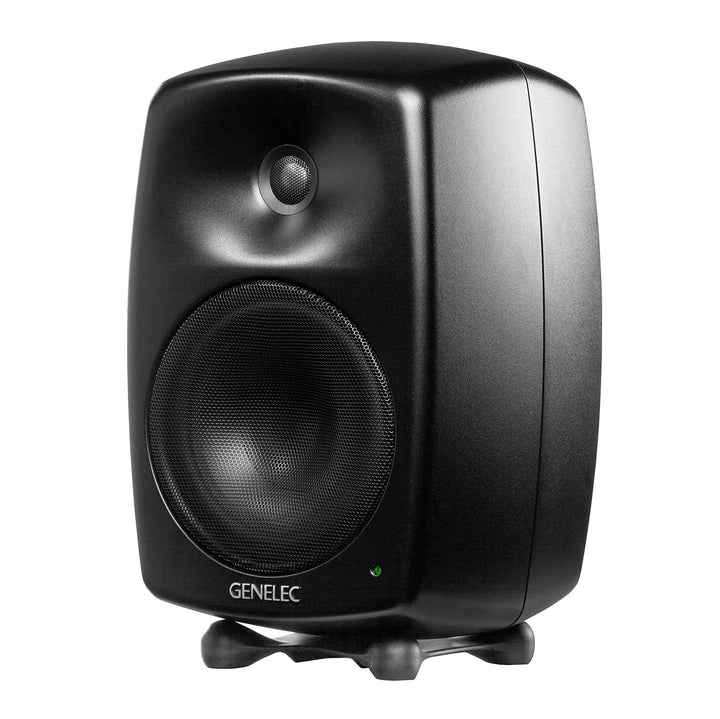

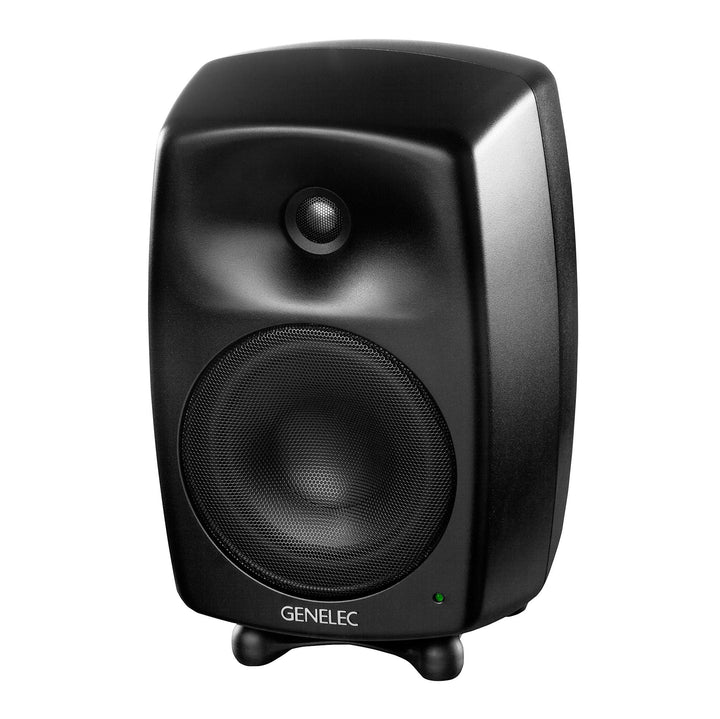

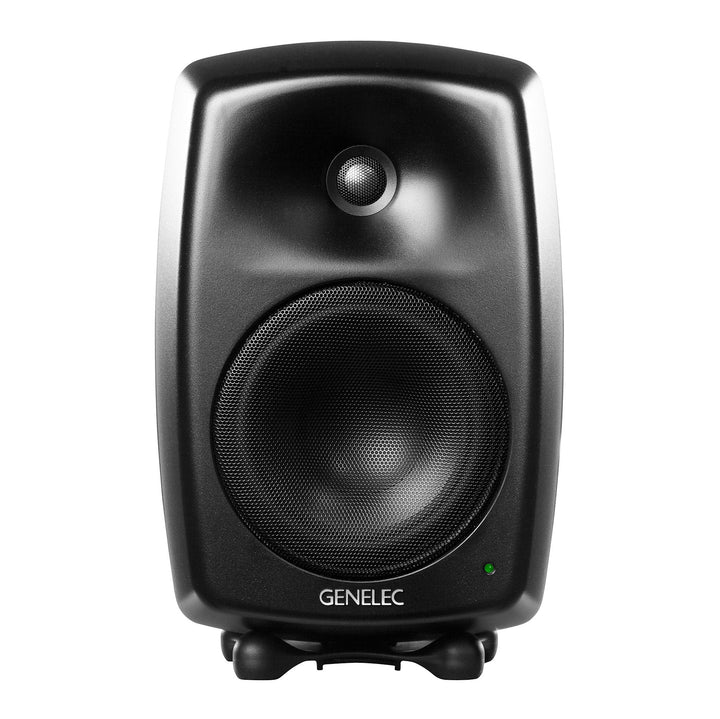

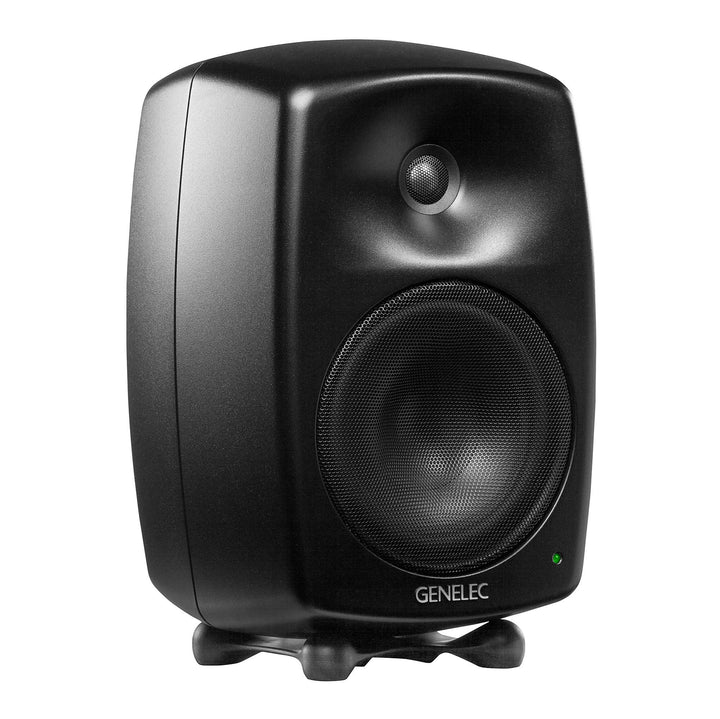

Genelec 8040B 6.5" Active Studio Monitor (Black)

The Genelec 8040B is a bi-amplified active studio monitor featuring a 6.5" bass driver and 3/4" metal dome tweeter. Delivering performance comparable to much larger systems from a compact enclosure, the 8040B provides bass extension down to 41 Hz (-6 dB) with 105 dB of output, making it a versatile choice for medium-sized control rooms, music studios, and post-production facilities where accurate full-range monitoring is required without a subwoofer.

Acoustic Design

• Minimum Diffraction Enclosure (MDE): All-aluminium enclosure with advanced cabinet geometry for minimized edge diffraction
• Directivity Control Waveguide (DCW): Ensures precise imaging and consistent frequency balance across a wide listening area
• Reflex port design: Uniquely shaped rear port with large cross-sectional area and wide flare for clean low-frequency extension without port turbulence
• Iso-Pod stand: Decouples the monitor from the mounting surface with adjustable tilt for optimal listening axis alignment
• Intelligent Signal Sensing (ISS): Automatic standby mode when no audio signal is detected

Room Compensation

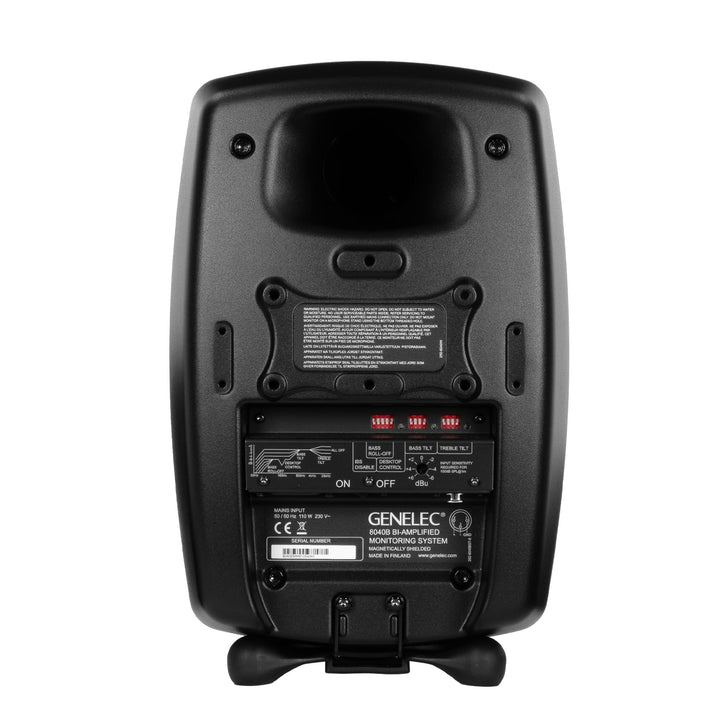

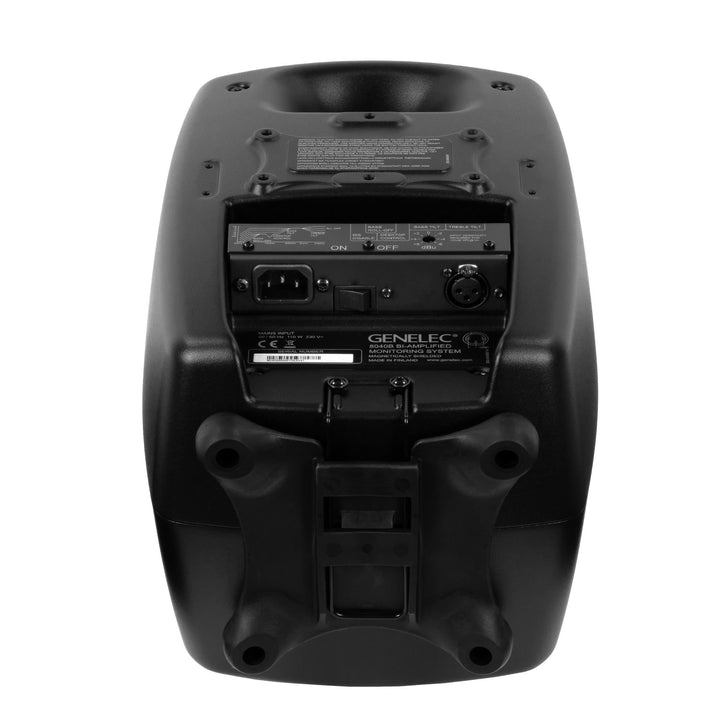

Rear-panel controls provide Treble Tilt, Bass Tilt (0 to -6 dB in 2 dB steps), Bass Roll-Off, and Desktop EQ settings. These allow precise compensation for room boundaries, console reflections, and placement near walls or corners.

Specifications

• Finish: Black
• Type: 2-way active monitor
• Bass driver: 6.5" (165 mm) cone
• Treble driver: 3/4" (19 mm) metal dome
• Amplifier power: 90W + 90W (Class AB)
• Frequency response: 48 Hz - 20 kHz (+/-2 dB)
• Frequency range: 41 Hz - 25 kHz (-6 dB)
• Max SPL: 105 dB @ 1 m
• Input: XLR balanced analog
• Mains voltage: 100-240 VAC, 50/60 Hz

Dimensions

• Dimensions (H x W x D): 14.4 x 9.3 x 8.8 in (365 x 237 x 223 mm)
• Weight: 9.4 kg / 20.7 lb

In the Box

• Genelec 8040B monitor (single)
• Mains cable (1.8 m)
• Iso-Pod kit
• Operating manual
